How to Setup Push Notifications via Mobile Application

Description

For push notifications to work you must have "Event/Motion" and or "Alarm" enabled From the "Device Manager" in the main menu of IDMSS/GDMSS application. Follow the step by step instructions below to setup push notifications.

Prerequisites

• Smartphone with IDMSS/GDMSS PLUS
• Connection and profile to the device
• Event such as Motion Detect must be enabled from Recorder.

Video Instructions iDMSS/gDMSS version 4.80.001

Step by Step Instructions iDMSS/gDMSS version 4.50.000

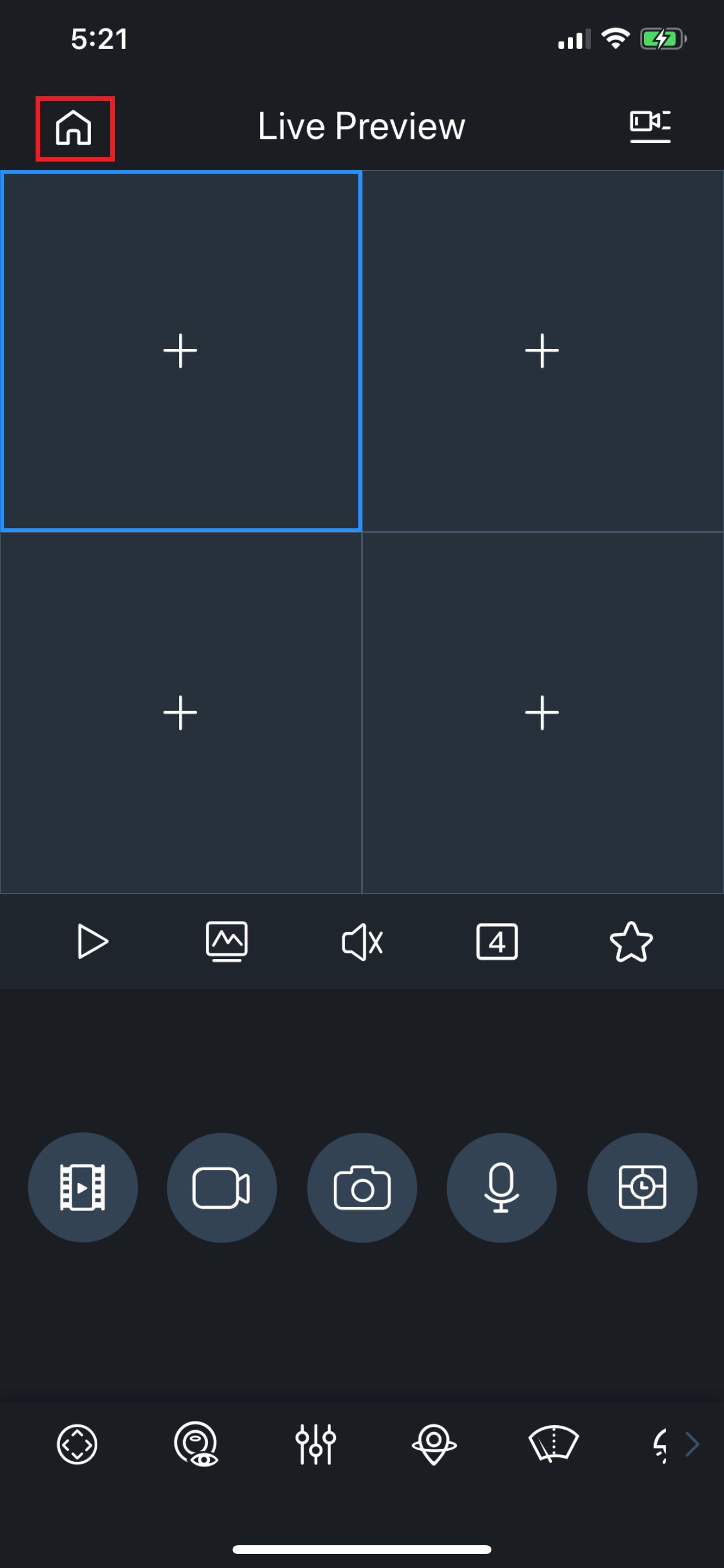

1. Open iDMSS/gDMSS on the phone, and select the home icon located on the top left corner.

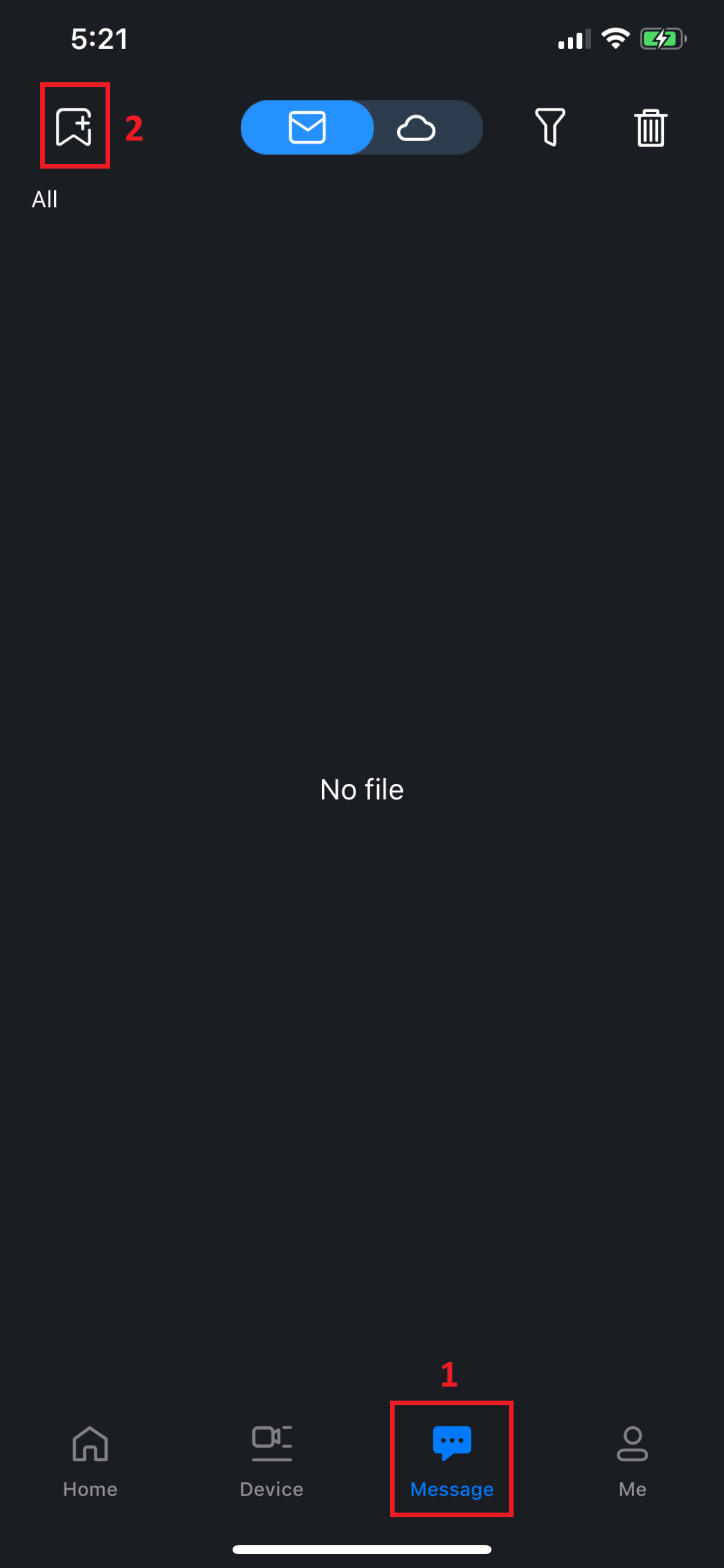

2. Select the "Message" icon towards the bottom then select the create alert icon towards the top left corner.

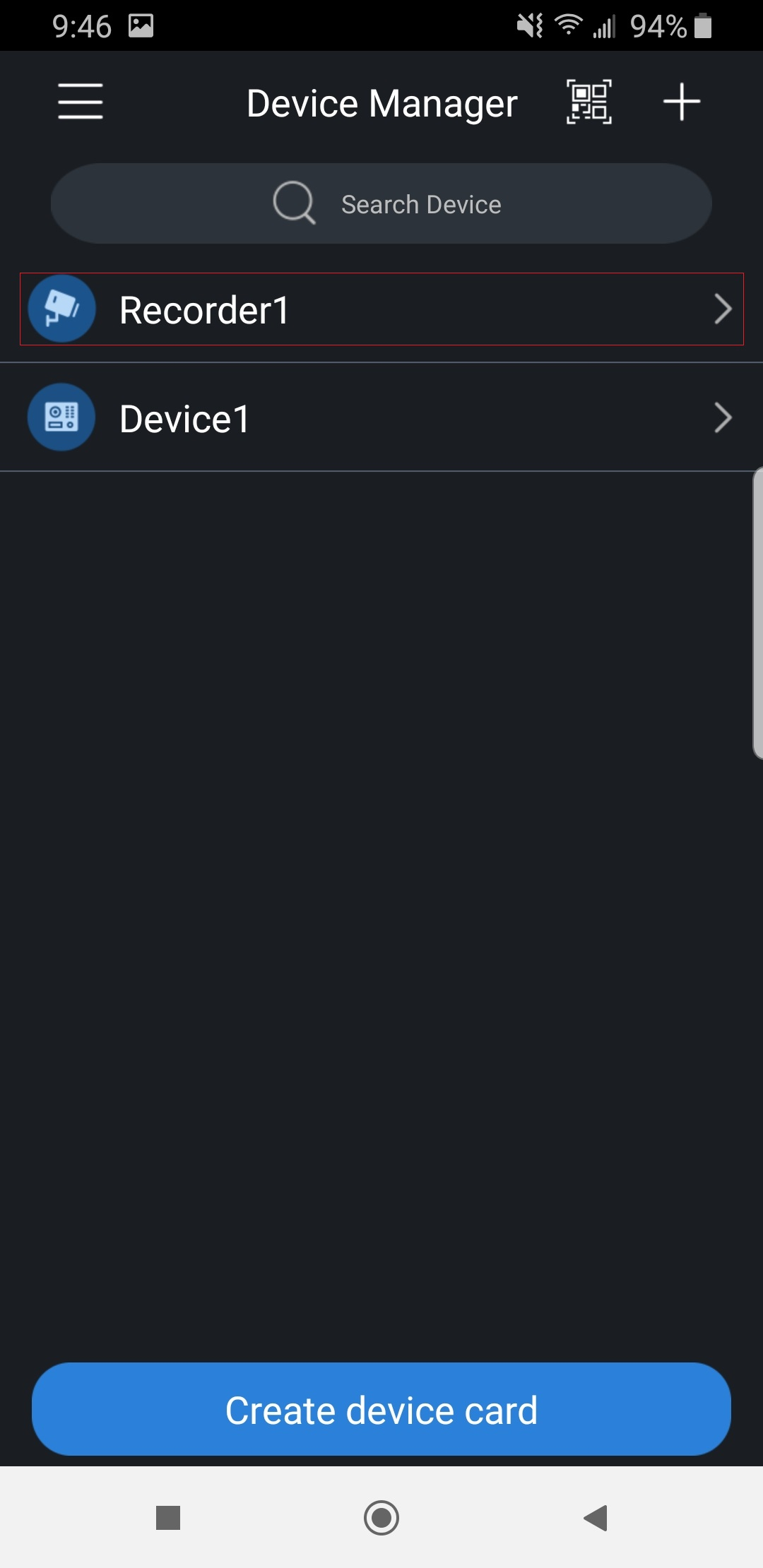

3. Select the recorder/camera previously added.

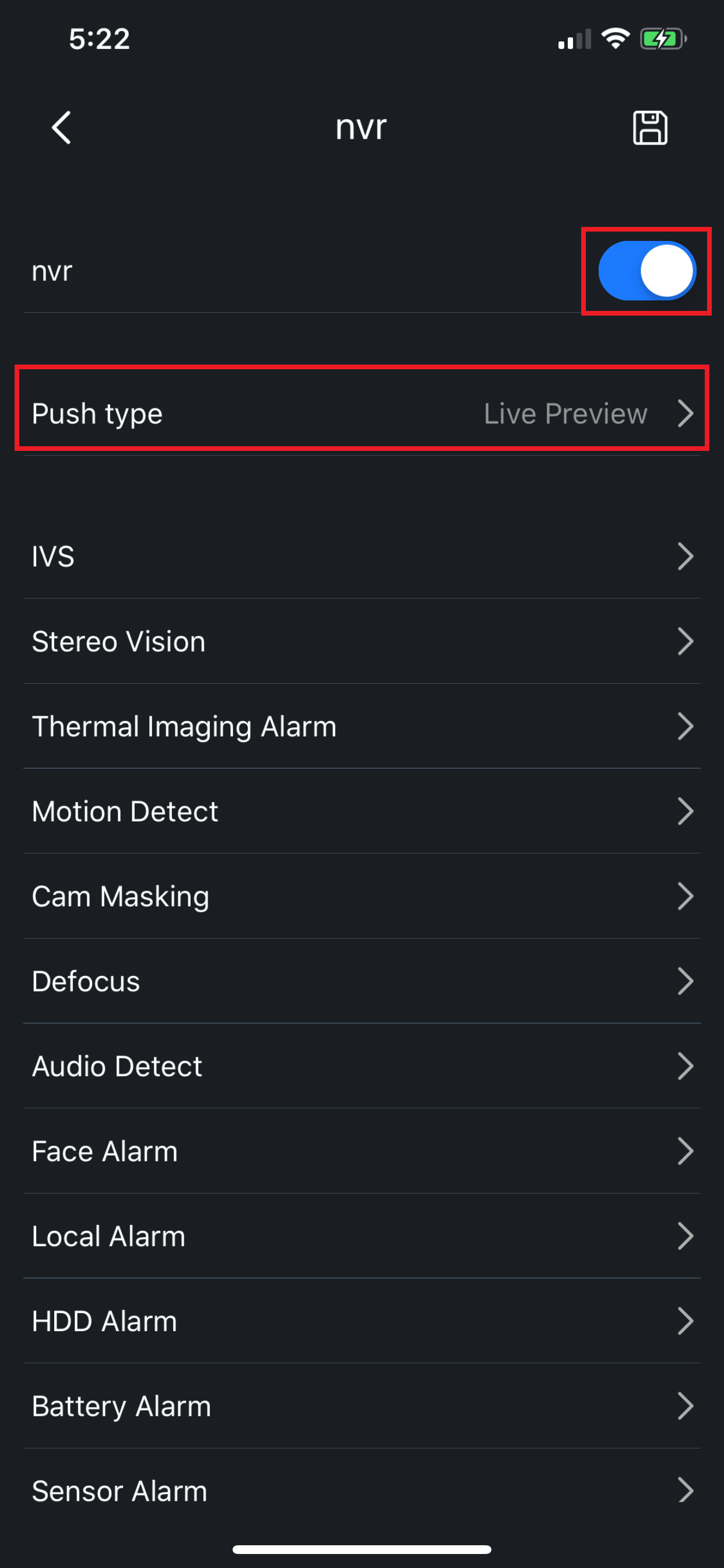

4. Toggle the recorder/camera to enable push notification for that device. As for "Push type", there are options and depends on which is used the alert will be displayed as is.

5. In this tutorial, let's take a look at "Motion Dection". Select the "Motion Dection".

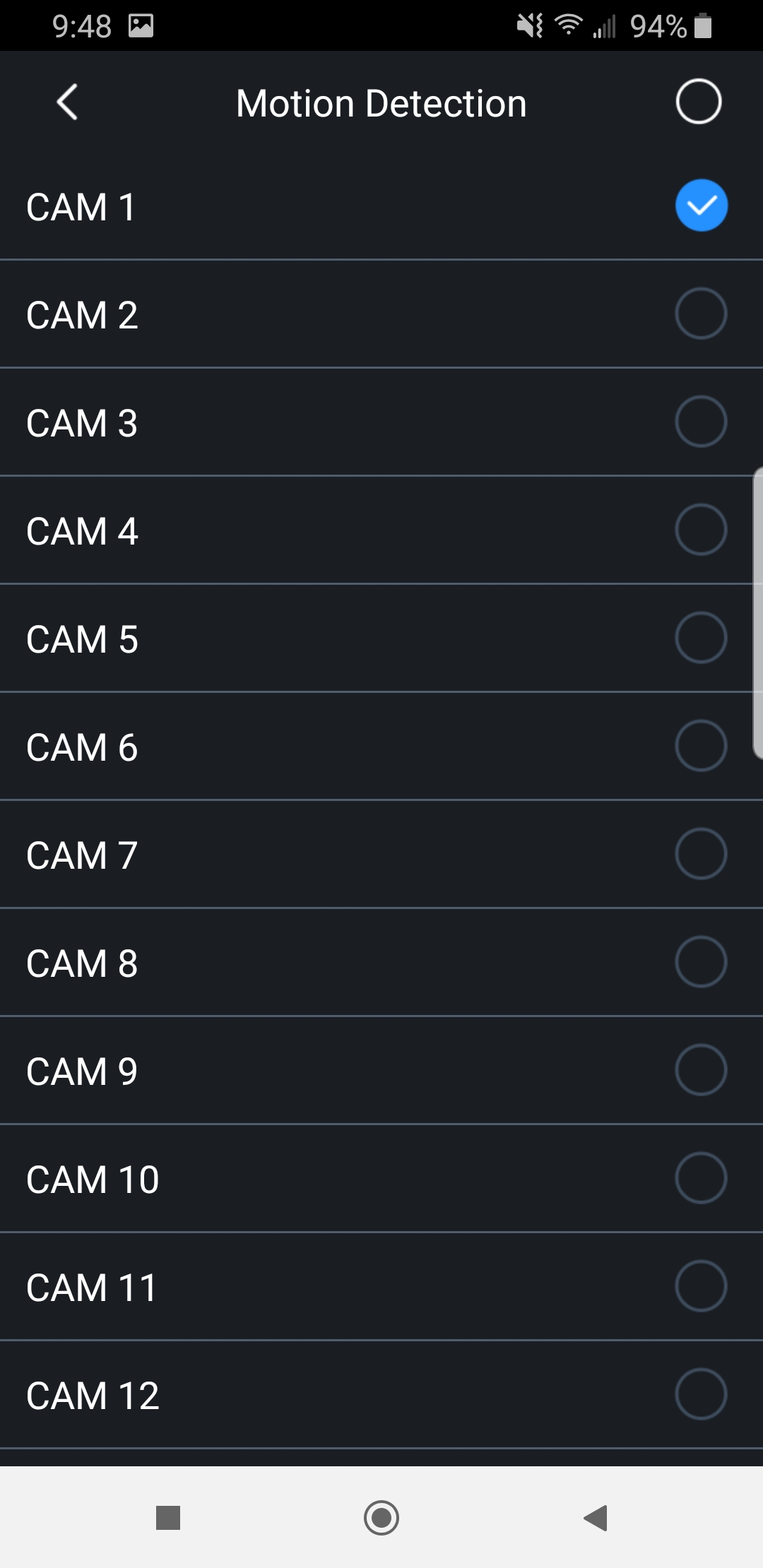

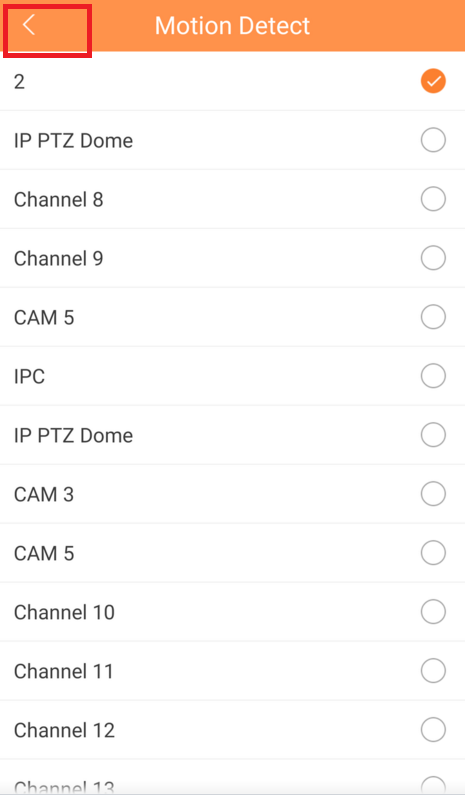

6. Select which channels the motions are setup, and go back.

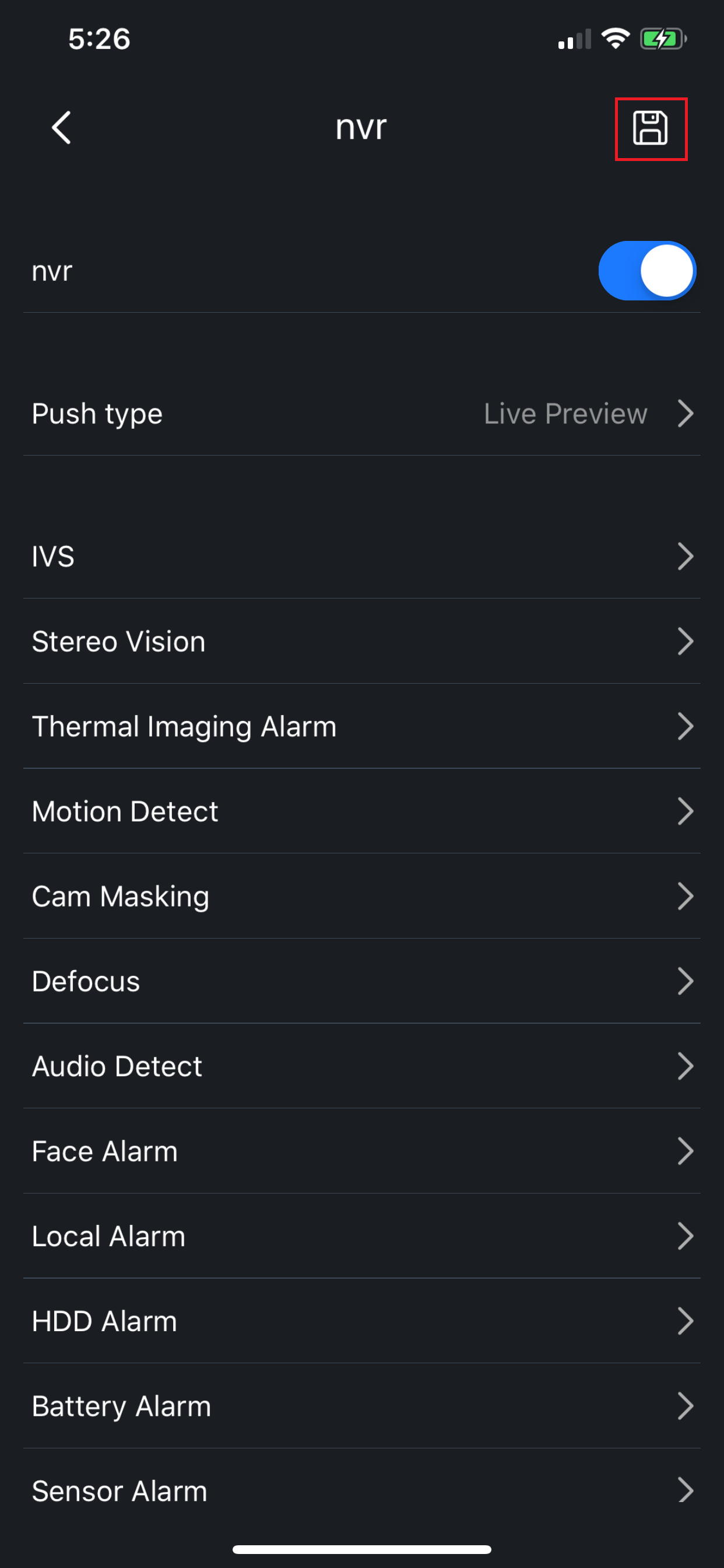

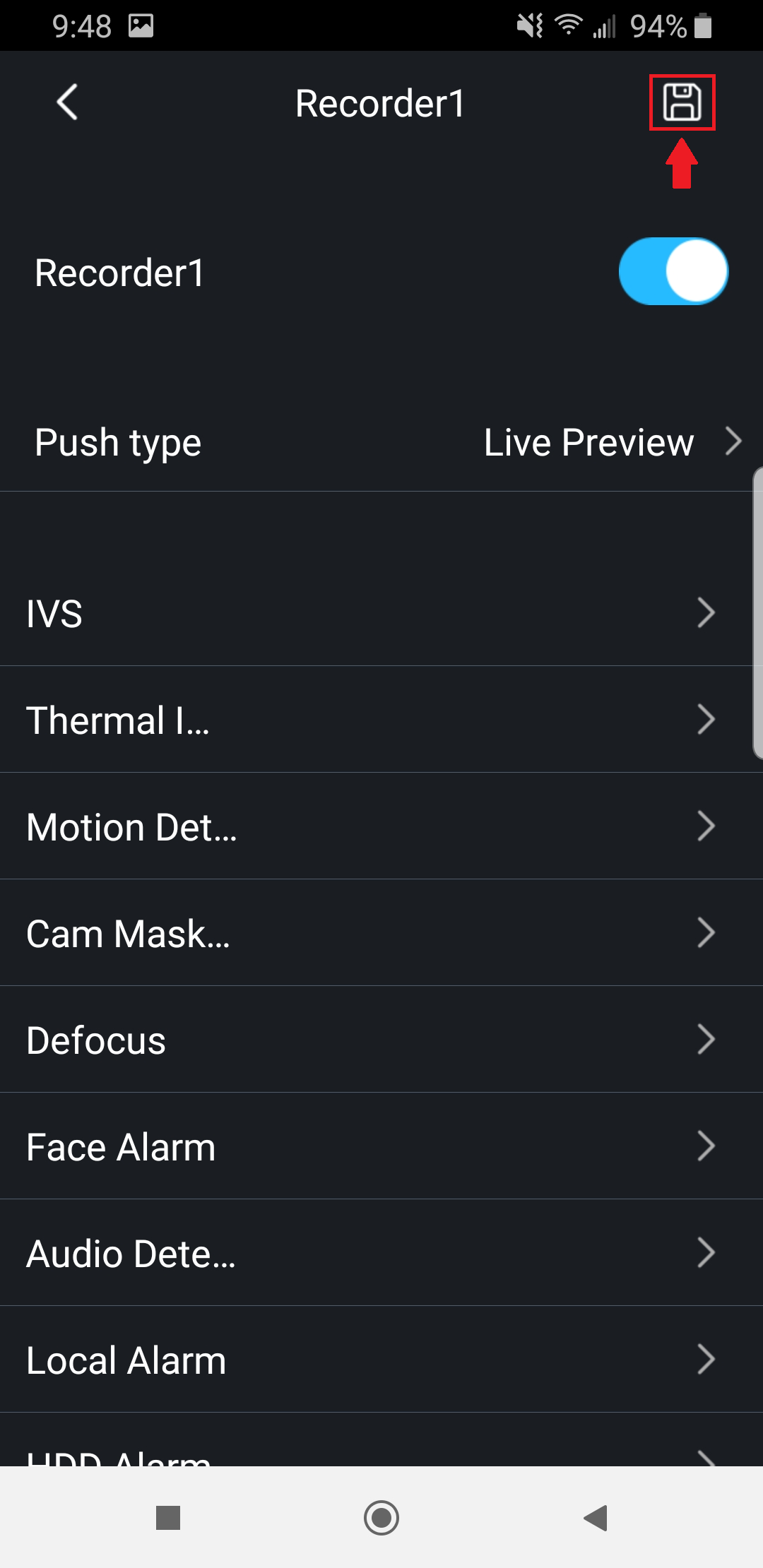

7. Click on the save icon located on the top right corner to save the changes.

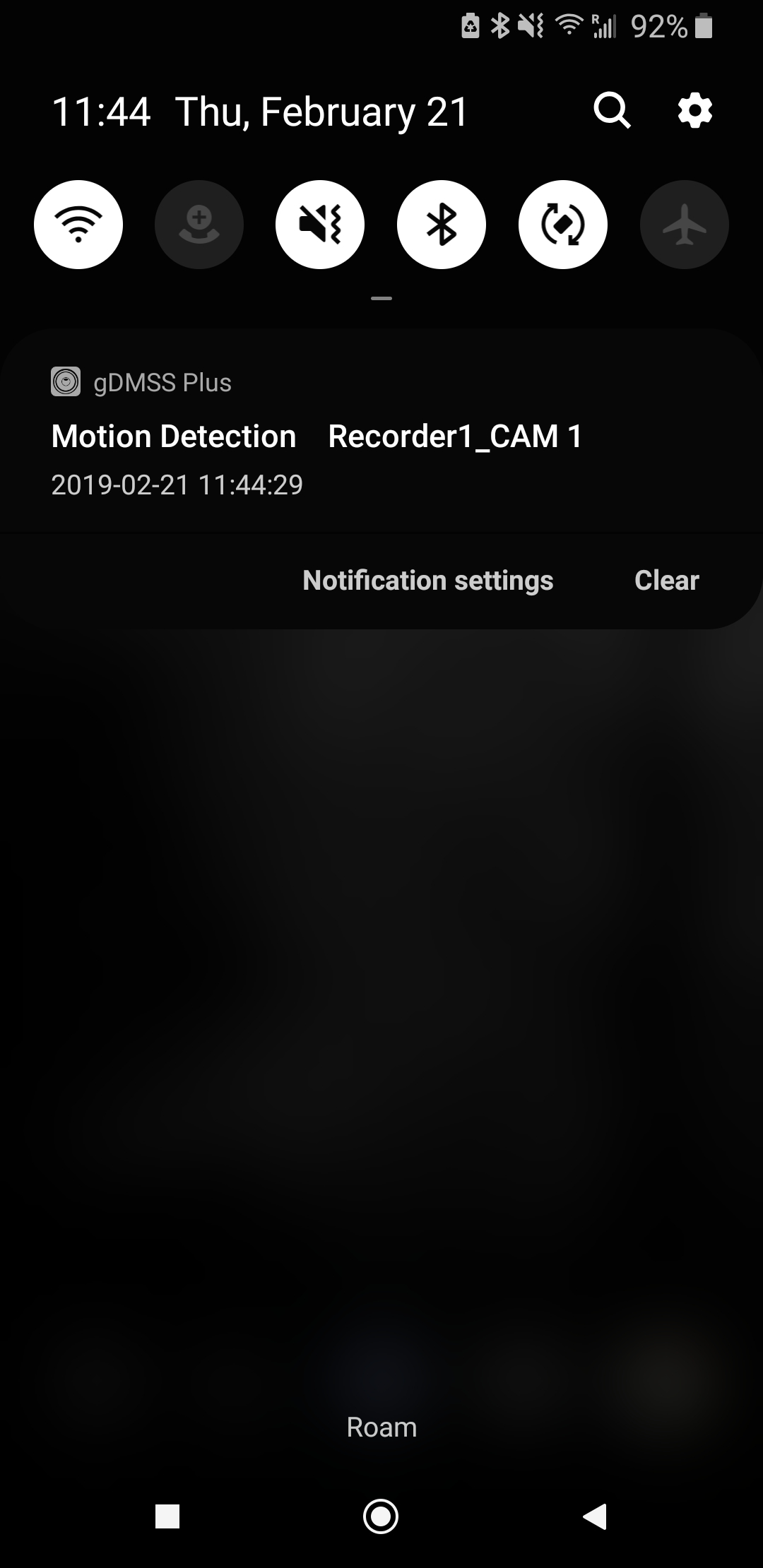

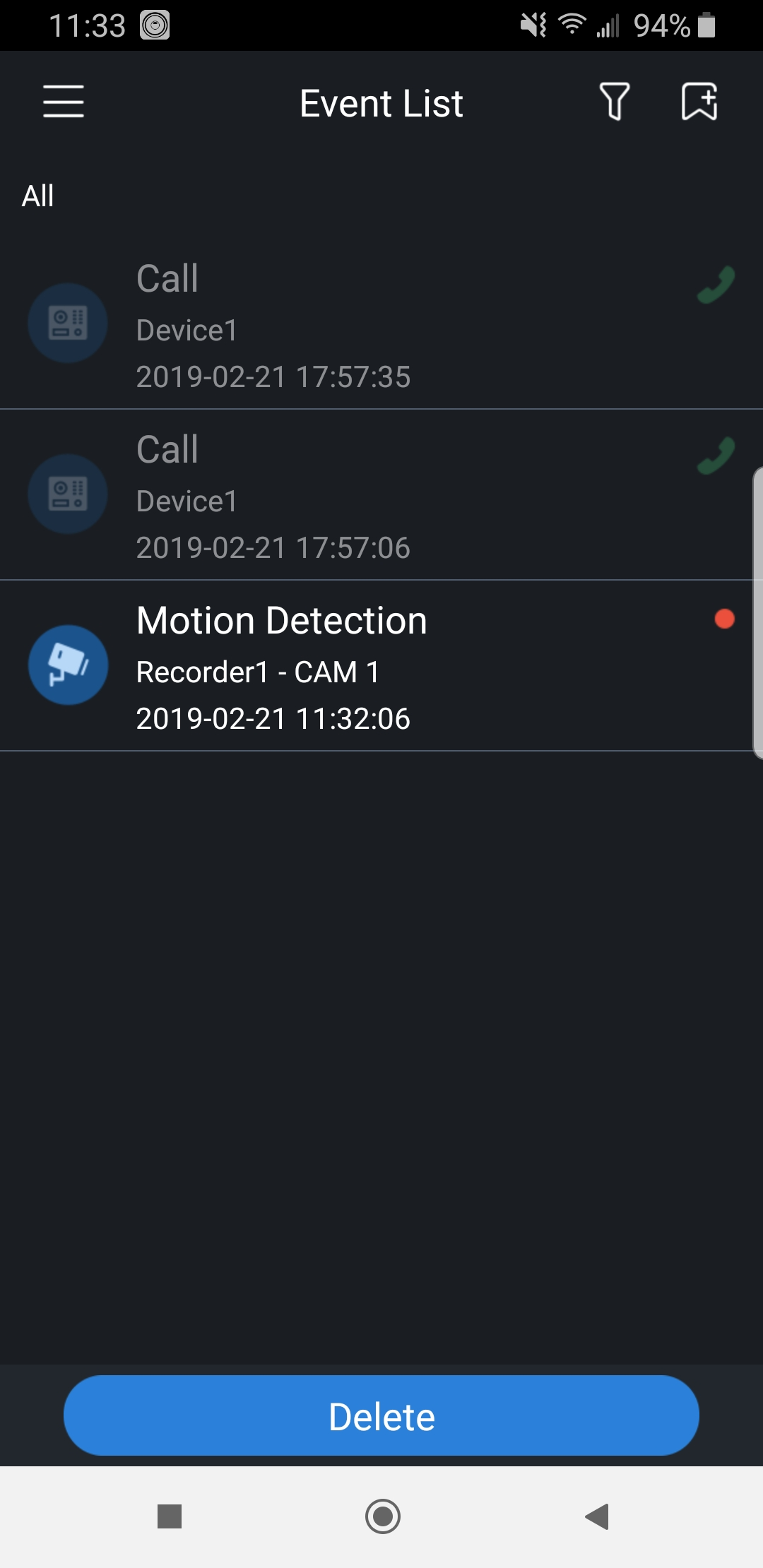

8. When the motion is being triggered, the push notification message will be displayed.

Video Instructions

Step by Step Instructions

iDMSS Plus Latest Version

1. Locate and launch iDMSS app on the Phone.

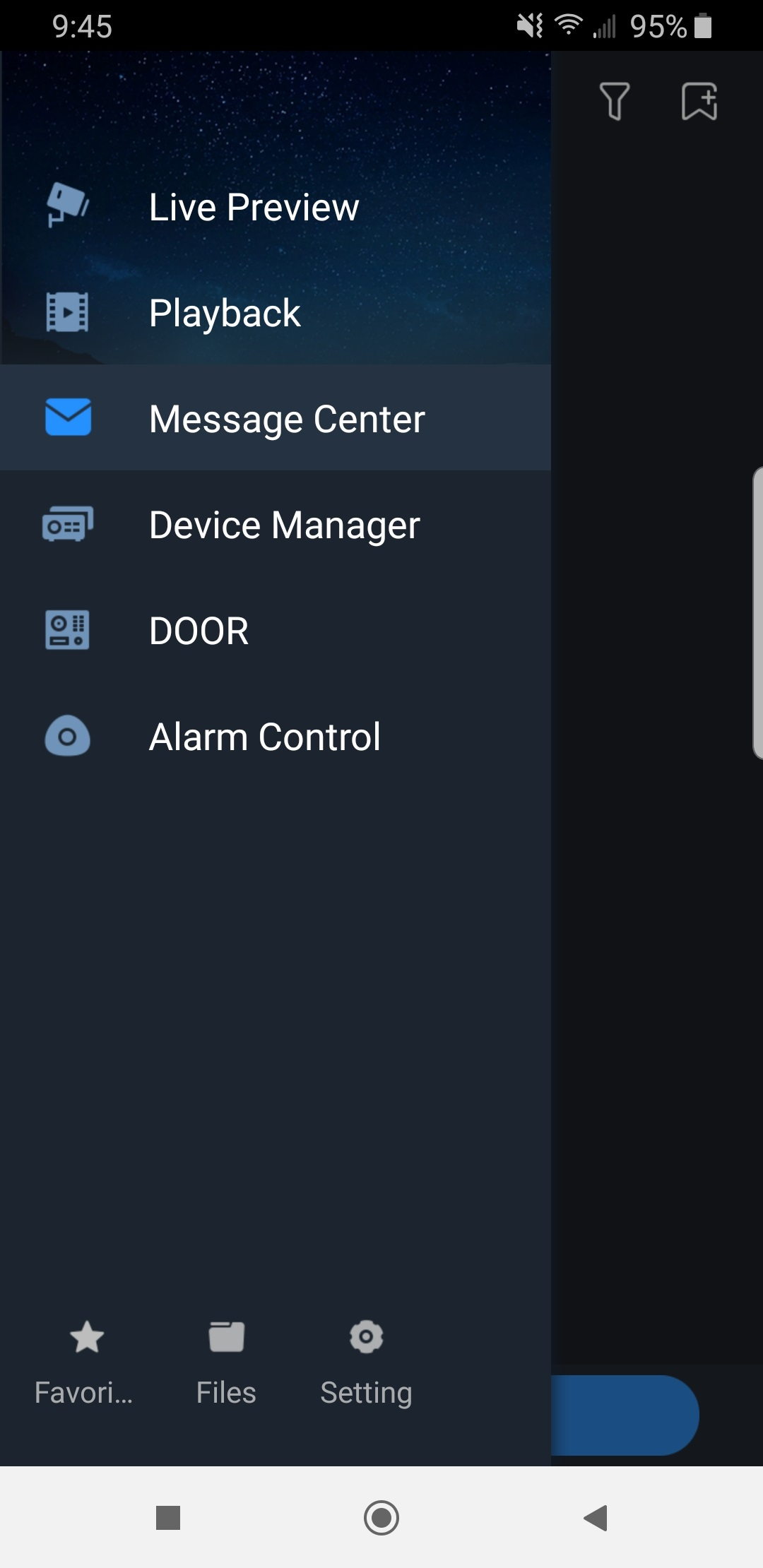

2. Press on the menu icon and press on Message Center.

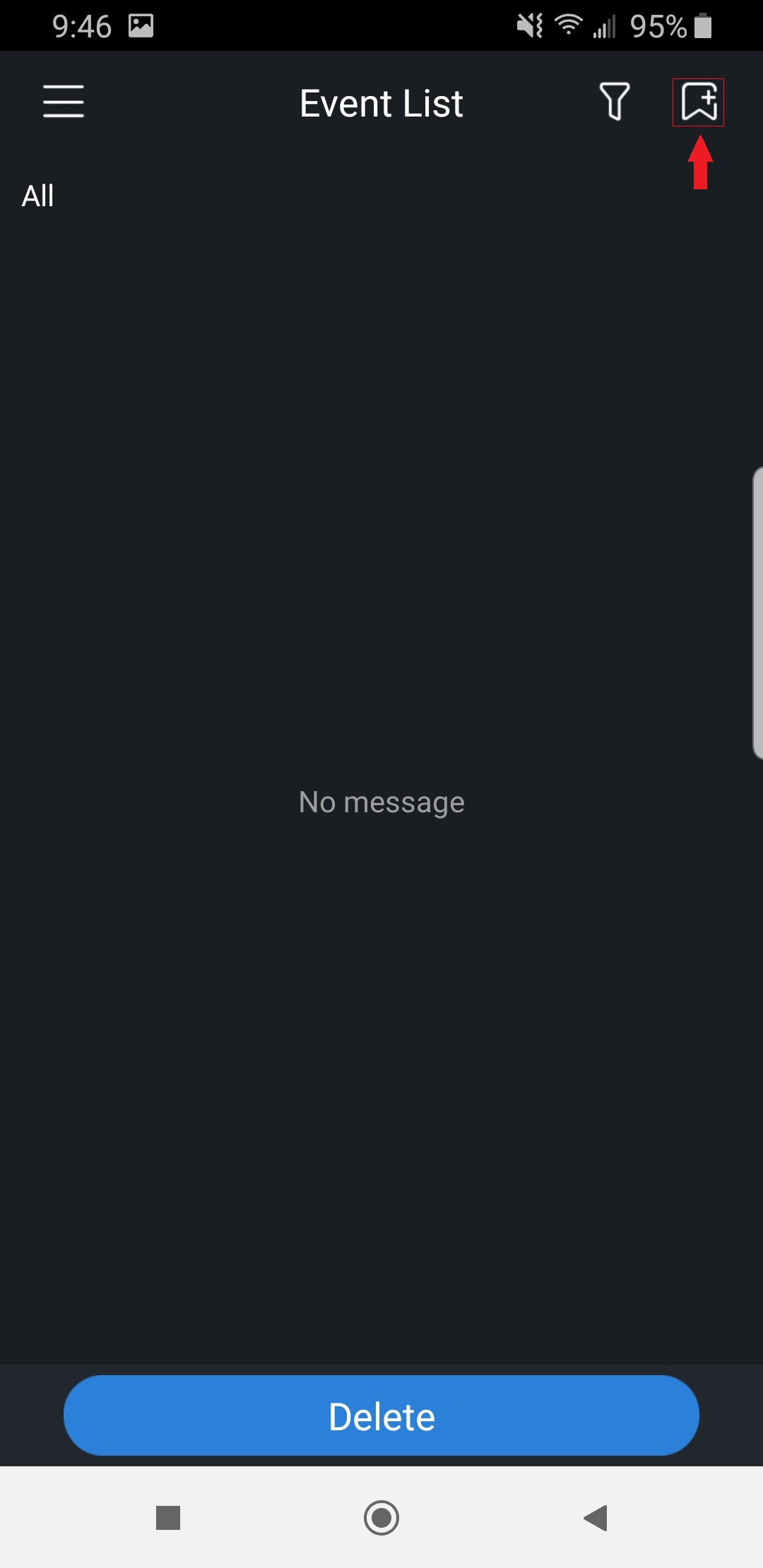

3. Press on Add alarm device icon.

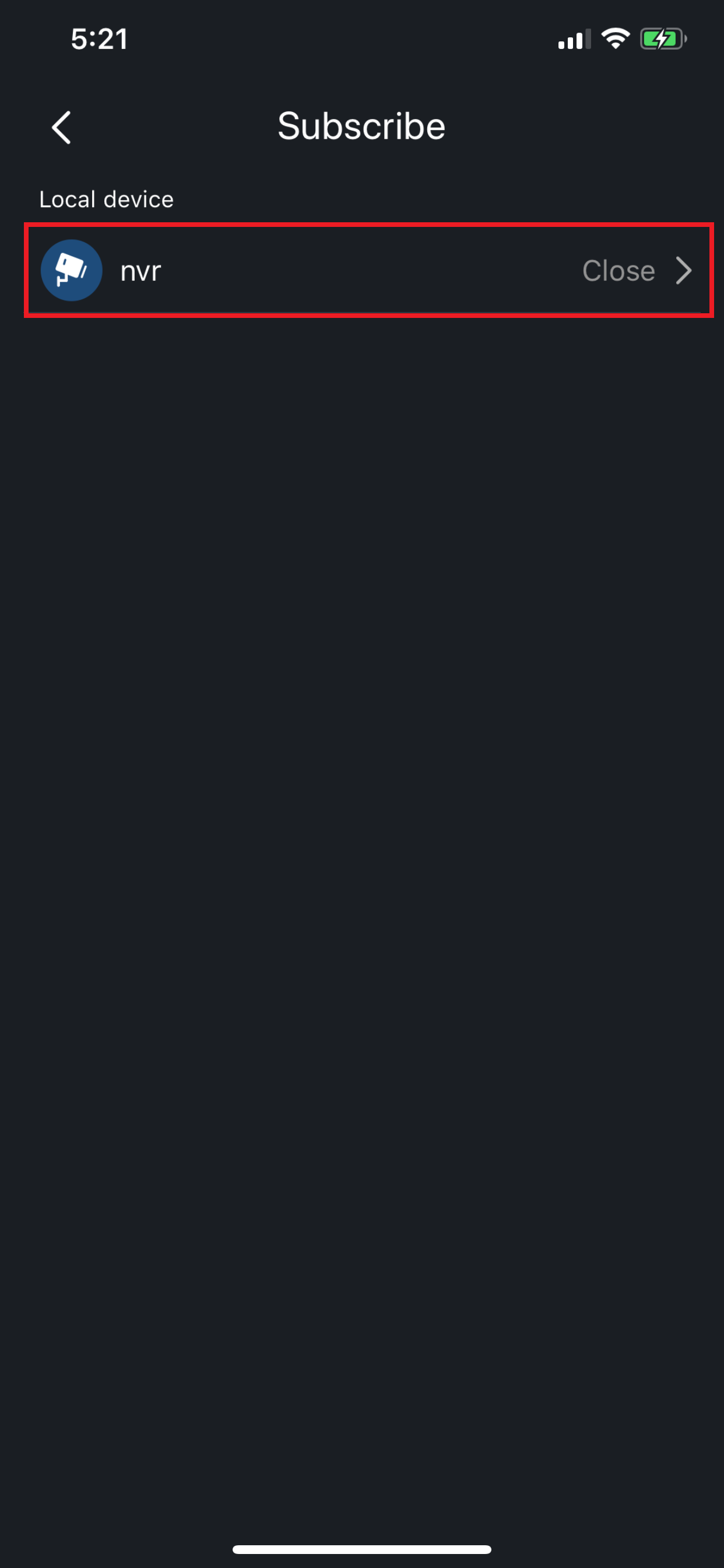

4. Select the added device.

5. Enable the notification for that device by switching the toggle. It will show blue if on.

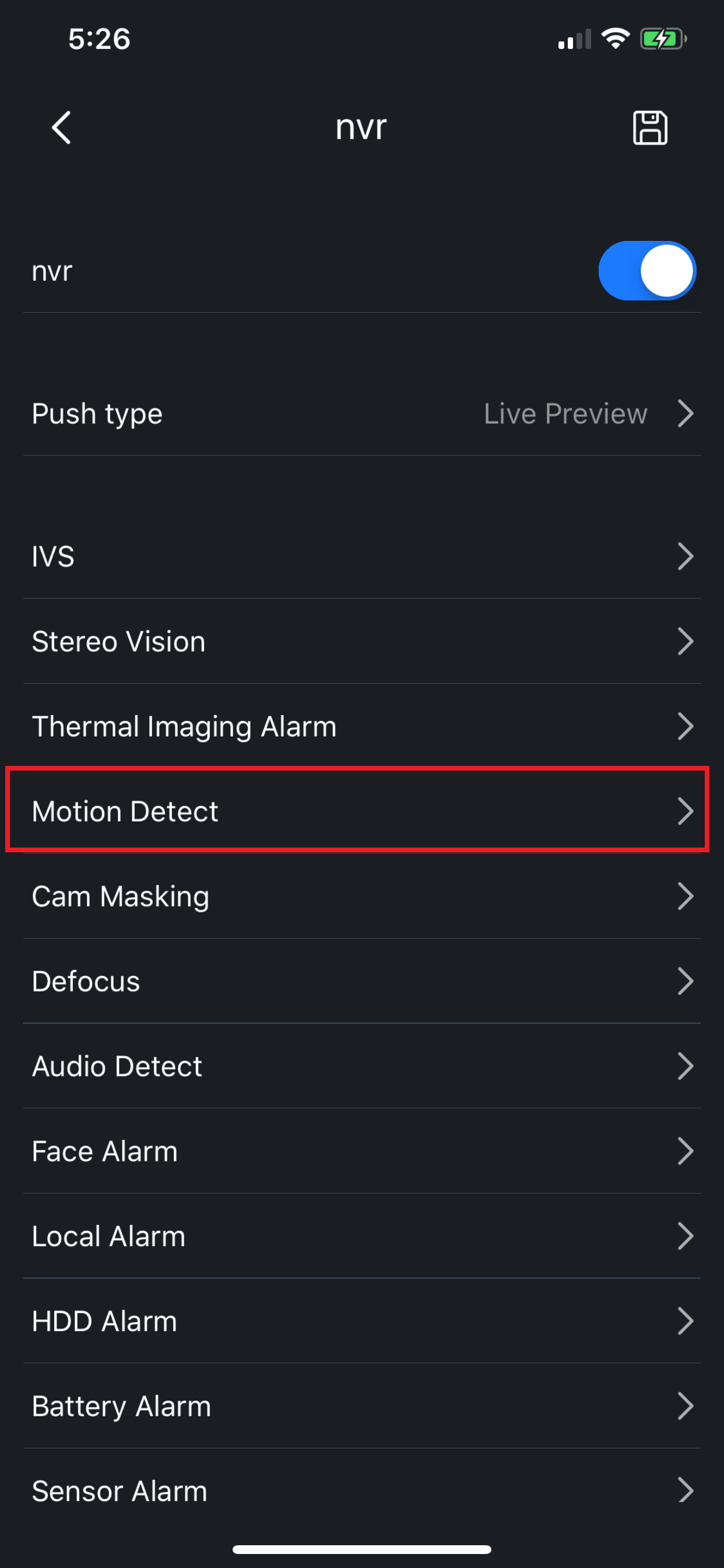

6. Select push type. For this tutorial, we are selecting Motion Detect > then press Motion detection > Select the camera channel.

7. Go back to Push Type menu and press Save.

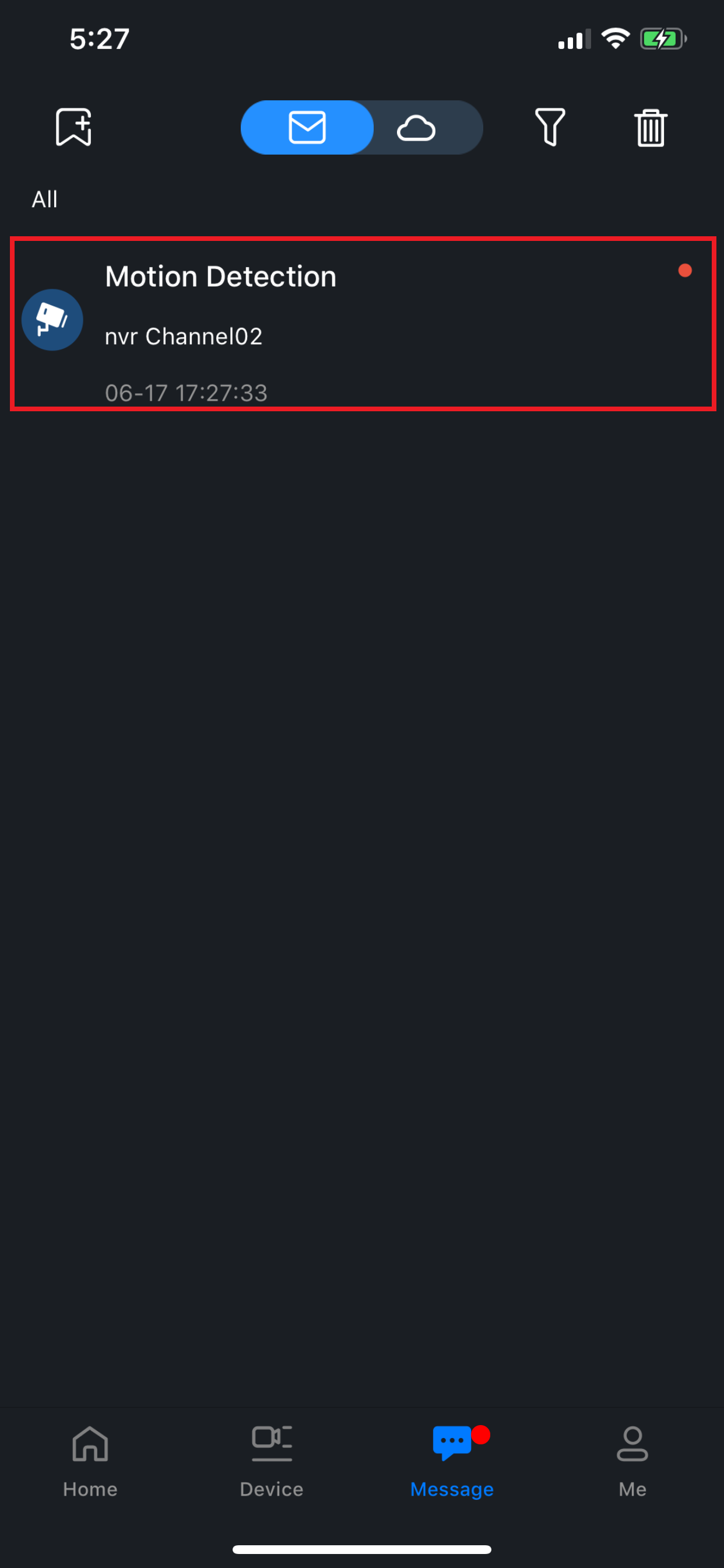

8. Your notification should be subscribe now on the app, you should receive notification when motion is triggered.

iDMSS old version

1. From Main Menu Select "Alarm Manager"

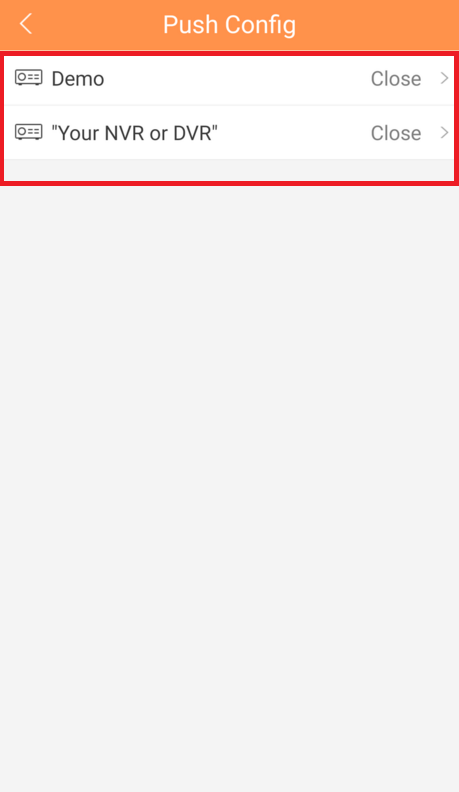

2. Select "Push Config"

3. Select Recorder from list.

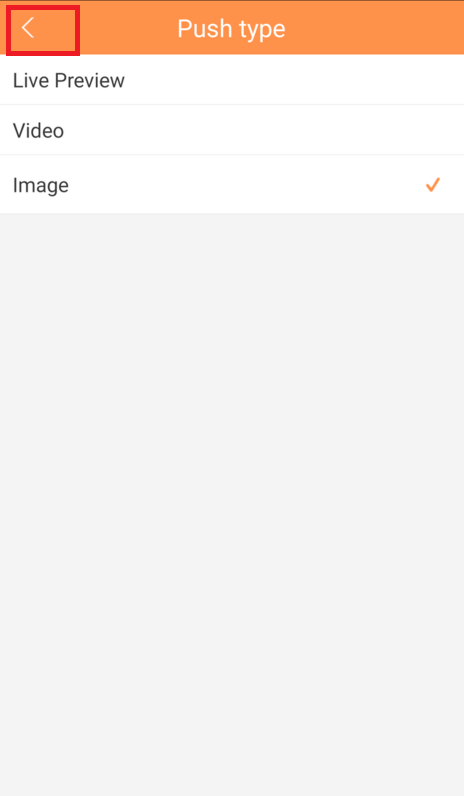

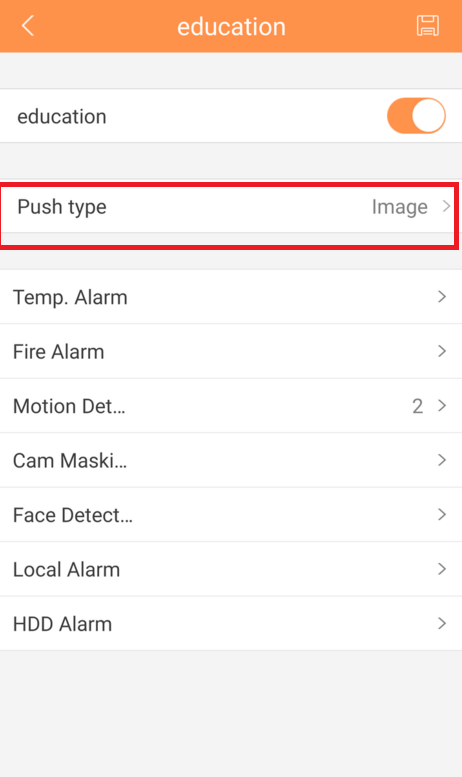

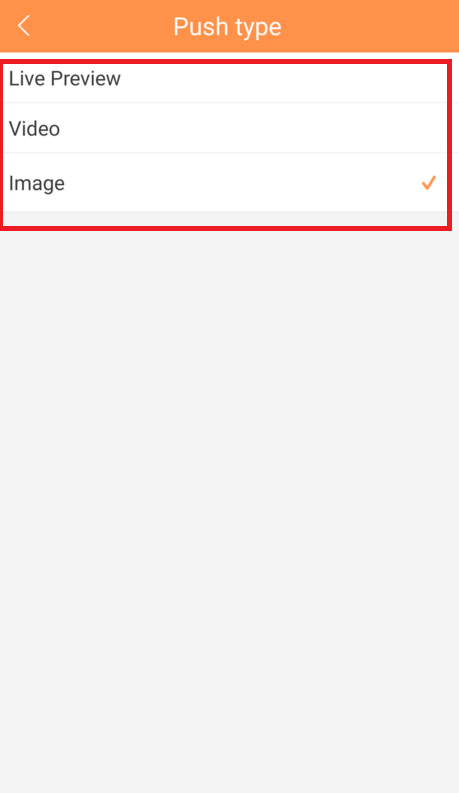

4. Select "Push Type" → Select one of the following: Live Preview, Video or Image → Select back icon.

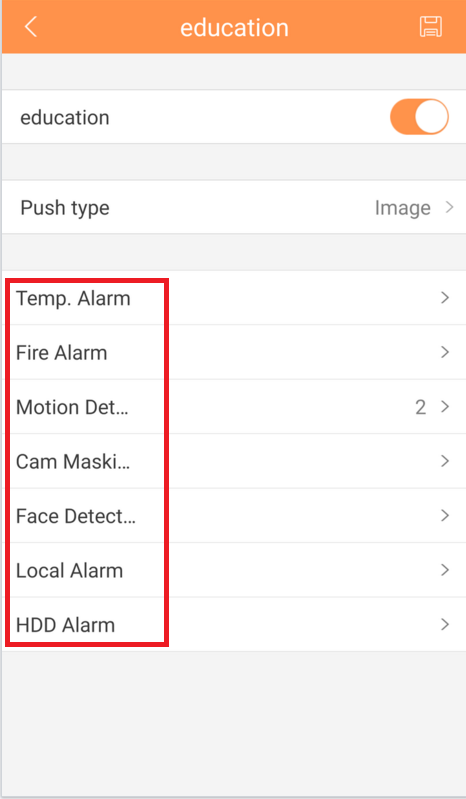

5. Select Alarm Type.

6. Select Camera or Cameras → Select back icon.

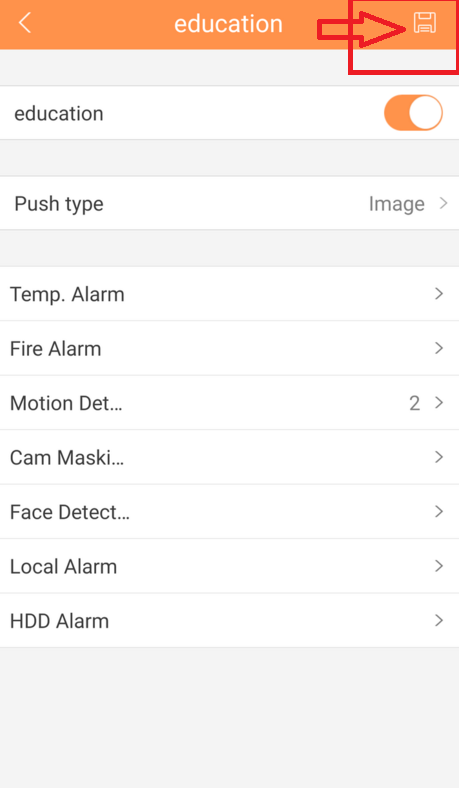

7. Select Disk icon to subscribe entry.
