How to Set UP EVS As A Network Disk

Description

This article is to show set up EVS as a network disk

Prerequisites

  • EVS

Video Instruction

Step by Step Instruction

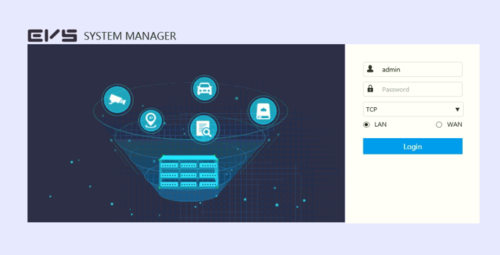

1. Locate EVS System Manager from web browser.

EVS System Manager.png

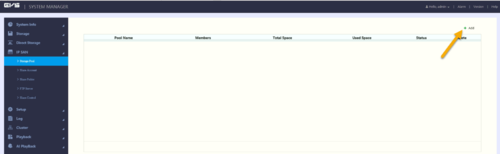

2. Click on IPSAN and choose Storage Pool. Click Add to create new Storage Pool.

EVS Storage Pool 1.png

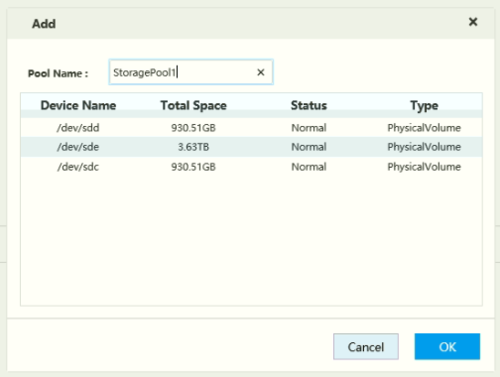

3. Enter the Pool Name and select your RAID Array or individual disk that are available. Then, click OK.

EVS Storage Pool 2.png

4. The system will prompt you that all data in the HDD will be formatted, click OK to continue.

EVS Storage Pool 3.png

5. Your Storage Pool is now created. Repeat step #2 if you have multiple RAID Array or disk for your EVS.

EVS Storage Pool 4.png

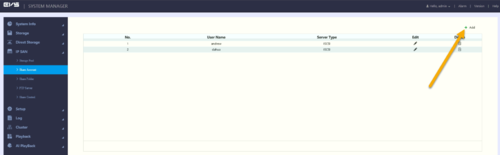

6. Go to Share Account menu and then click on Add.

EVS Shared Account 1.png

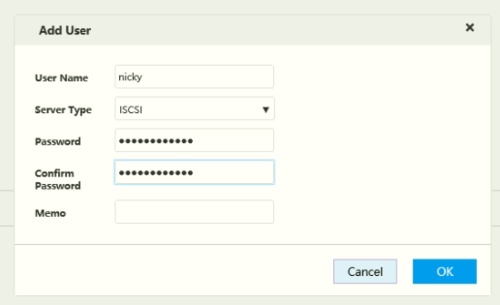

7. Enter Username and Password you wish to create for your Storage allocation, then click OK.

EVS Shared Account 2.png

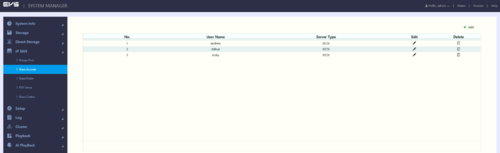

8. Your Share Account is now created.

EVS Shared Account 3.png

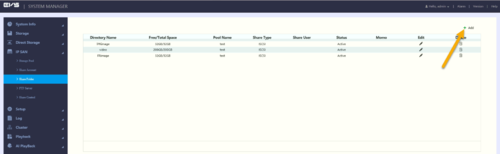

9. Go to Share Folder menu and then click on Add.

EVS Share Folder 1.png

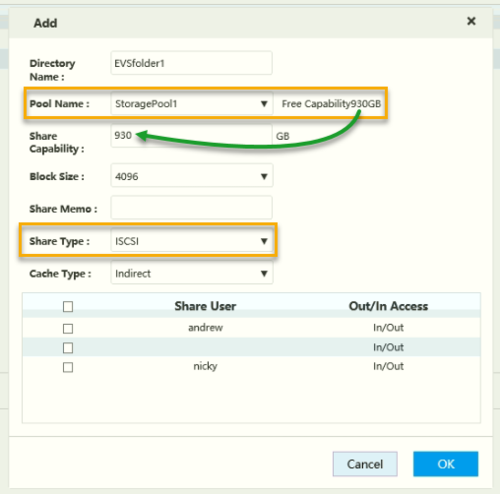

10. Enter the Directory Name, and then select your storage pool that created on step 2. Choose Share Type to ISCSI, and do not select any share user. Then, click OK.

EVS Share Folder 2.png

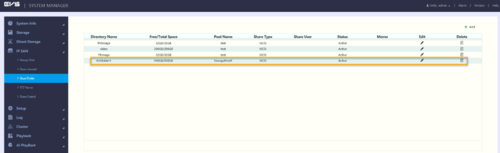

11. Your share folder is now created. Repeat step #10 if you have multiple storage pool created for your EVS.

EVS Share Folder 3.png
