How to modify device IP address via ConfigTool


:
from
to
Clear all

ToolBox ConfigTool Modify IP

Modify IP address of iMaxCamPro Device through ConfigTool via iMaxCamPro ToolBox

Description

  • Modify IP address of iMaxCamPro Device if user name and password are factory default.
  • Modify IP address of iMaxCamPro Device if user name and password are modified.
  • Note: If your IP Camera is connected to the back of an NVR, these instructions will not apply. Please see, "How to Connect IP Camera to NVR"

Prerequisites

  •  iMaxCamPro Toolbox installed
  • iMaxCamPro Devices on the same LAN as the PC for using the ConfigTool
  • Windows PC

Step by Step Instructions

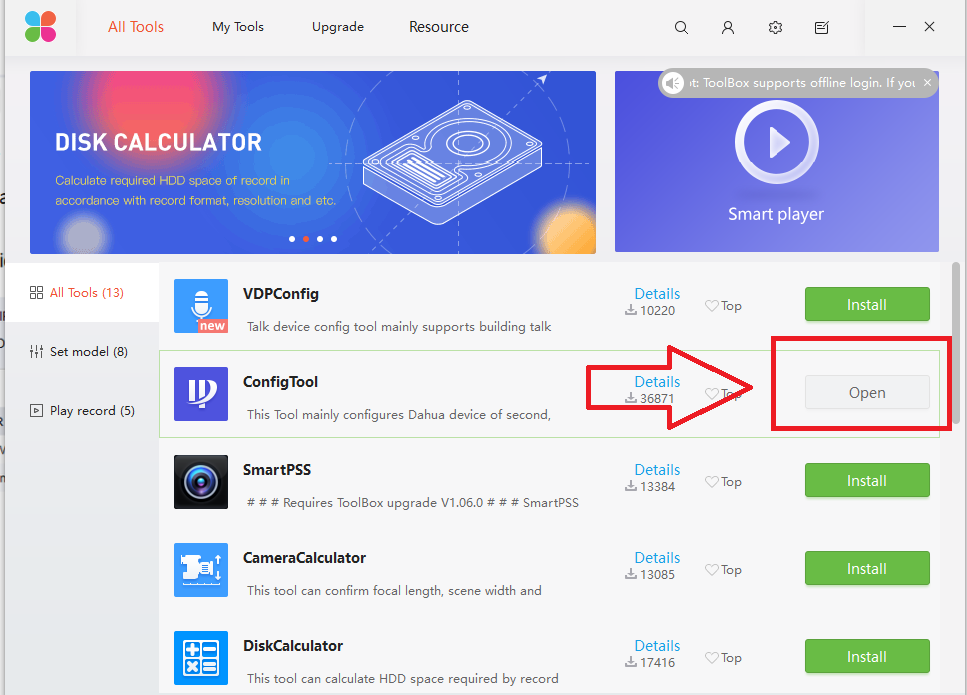

1. Launch the iMaxCamPro ToolBox and open the ConfigTool.

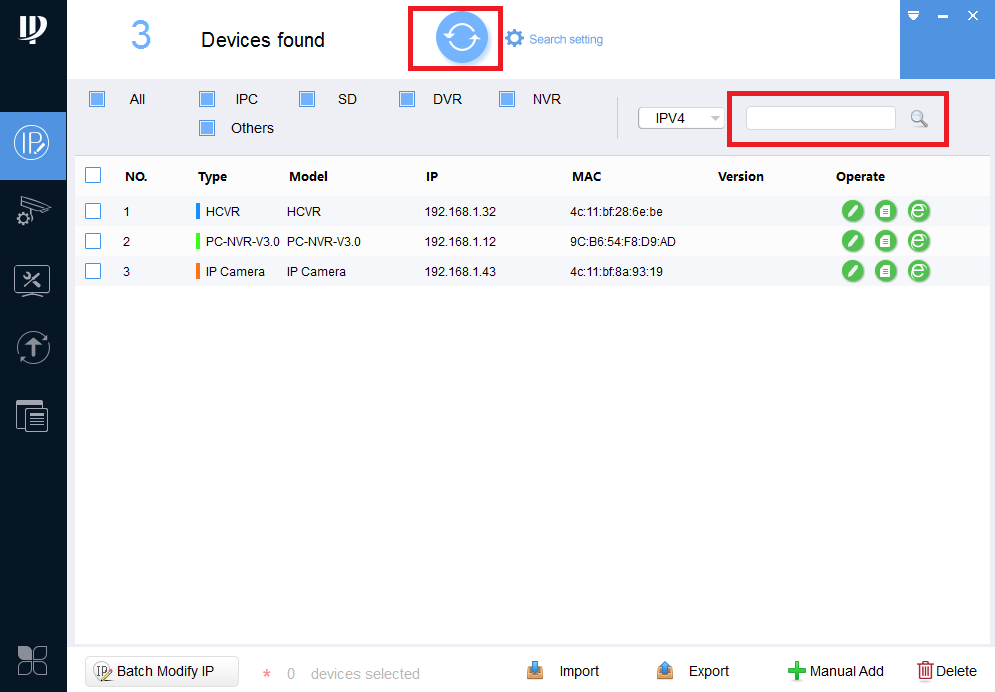

  • Upon opening the ConfigTool application, here you can see iMaxCamPro Devices on the same LAN are located. Refresh if iMaxCamPro devices are not located. You can also manually locate the device by typing in the IP address of the device in the search.

2. To modify IP address of selected device, select the edit button.

  • Note: this step pertains if iMaxCamPro Devices are using factory default user names and passwords.

600px

  • Select DHCP or for static change the IP address according to the LAN configuration -> Select "OK" to save changes.

600px

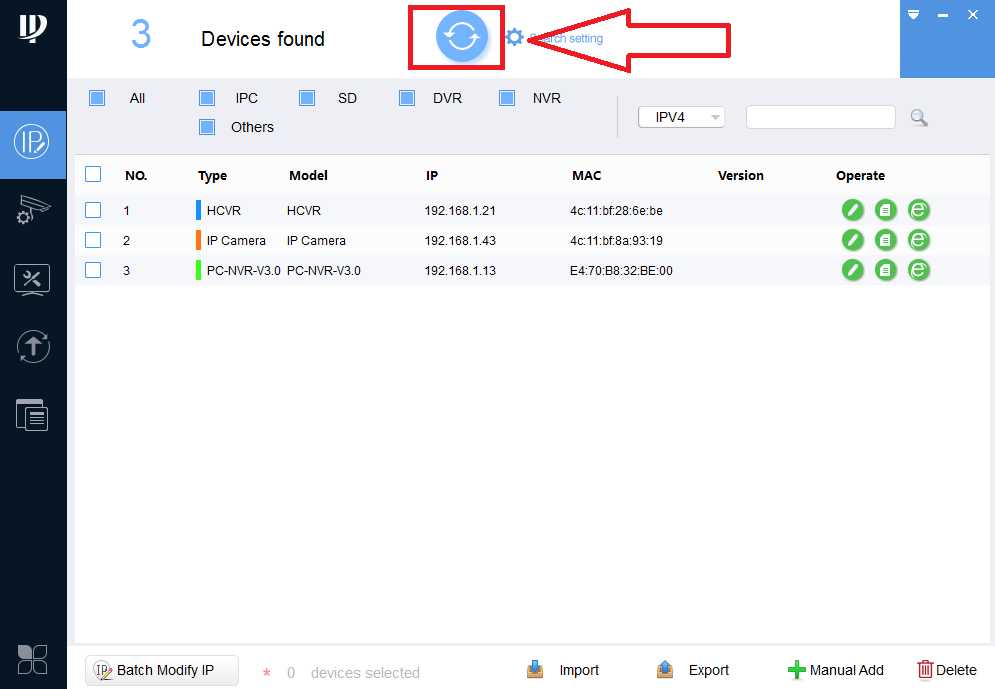

  • Refresh to verify modified IP address.

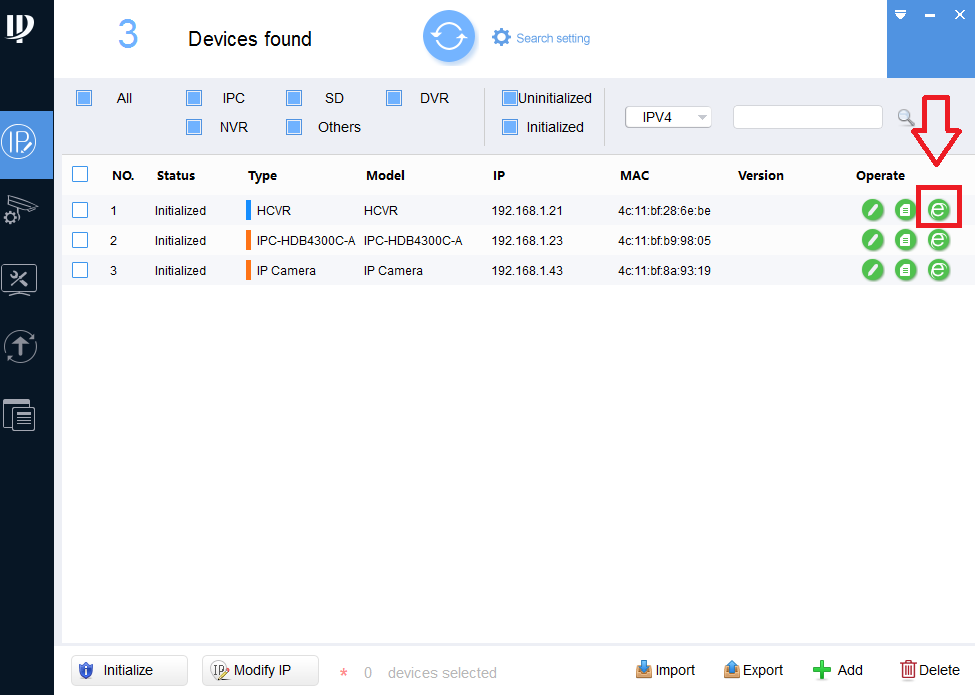

3. To modify IP of device with modified user names and passwords, click on the IE (Internet Explorer) icon of the selected device. This will open the web service of the device through IE.

  • Log in with associated user name and password.

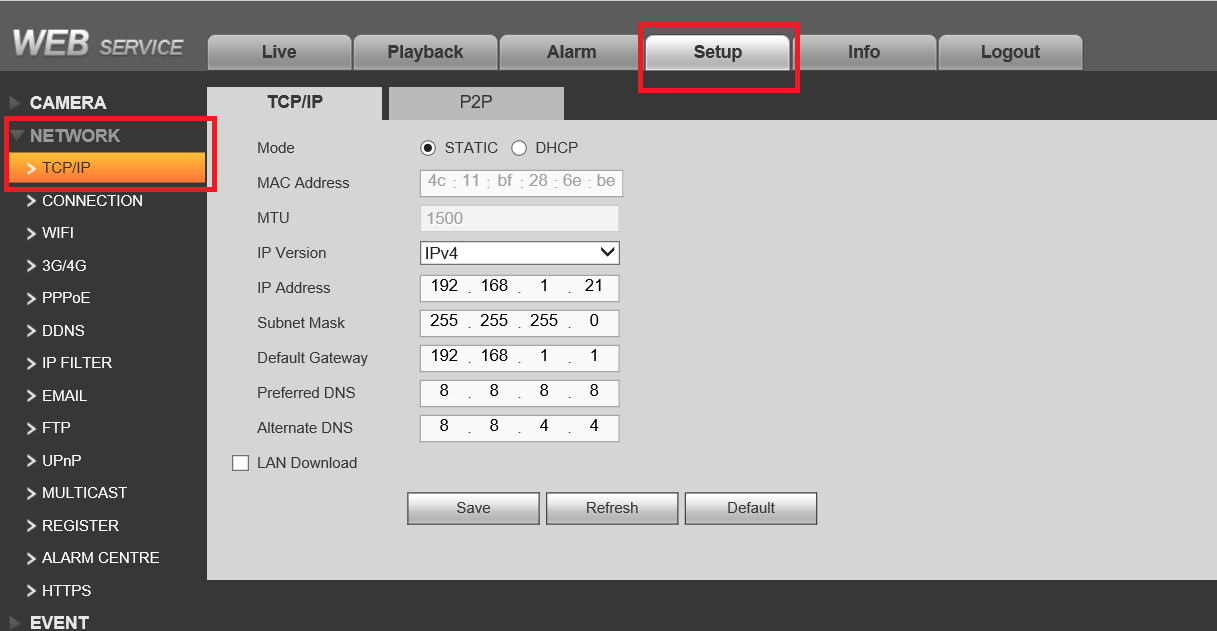

  • Select the setup tab -> Select TCP/IP

  • Select DHCP or Static to modify IP along with associated LAN configuration -> Select Save.
