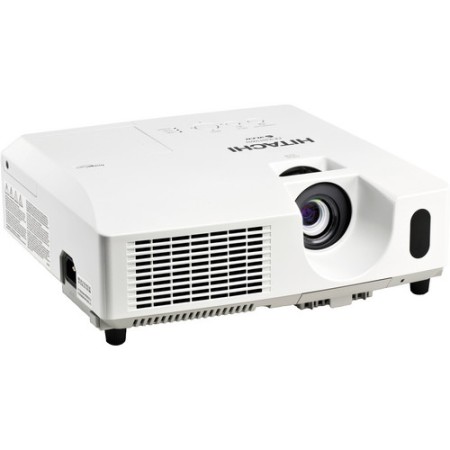

CP-X3015WN Hitachi LCD Projector, XGA, 3200 ANSI Lumens

Hitachi Kokusai
SKU: CP-X3015WN
Features :
  • Light output (brightness): 3200 ANSI Lumens
  • Resolution: XGA (1024 x 768)
  • Contrast Ratio: 3000:1
  • Hybrid Filter - 6000 Hour Filter Cleaning Cycle
  • Lamp life: 6000 hours (Eco Mode)
  • Advanced networking features
  • Full connectivity including HDMI
  • AMX Device Discovery
  • Crestron RoomView®
  • iOS Connectivity
    • 42% less
    Market price:$2522.97 save $1051.24
  • $1471.73

OR
CP-X3015WN Hitachi LCD Projector, XGA, 3200 ANSI Lumens

Designed for medium sized education and corporate venues, Hitachi’s CP-X3015WN provides versatility and connectivity. With optional wireless networking users can present via a PC placed anywhere in a room. With an exceptional high contrast ratio and long life lamp the CP-X3015WN delivers a superb image, simple user functionality with a low total cost of ownership.

Features :
  • Light output (brightness): 3200 ANSI Lumens
  • Resolution: XGA (1024 x 768)
  • Contrast Ratio: 3000:1
  • Hybrid Filter - 6000 Hour Filter Cleaning Cycle
  • Lamp life: 6000 hours (Eco Mode)
  • Advanced networking features
  • Full connectivity including HDMI
  • AMX Device Discovery
  • Crestron RoomView®
  • iOS Connectivity

Specifications :

OPTICAL

  • LCD Panel : 0.63" (1.6cm) P-Si TFT x 3
  • Resolution : XGA (1024x768)
  • White light output (brightness) :
    • 3200 ANSI Lumens (Normal Mode)
    • 2100 ANSI Lumens (Eco Mode)
  • Colour light output (colour brightness) :
    • 3200 ANSI Lumens (Normal Mode)
    • 2100 ANSI Lumens (Eco Mode)
  • Contrast Ratio : 3000:1
  • Lens : Manual focus, manual zoom x 1.2
  • Lamp wattage : 215W UHP
  • Lamp life :
    • 5000 hours (Normal Mode)
    • 6000 hours (Eco Mode)
  • Diagonal display size : 30~300" (76~762cm)
  • Number of colours : 8 Bit/colour, 16.7M colours
  • Keystone Correction  : 6:1 upward shift, fixed
  • Focus distance : 0.8m~9.0m (Wide), 1.0~10.8m (Tele)
  • Distance to width ratio (:1) : 1.5 (Wide), 1.8 (Tele)

COMPATIBILITY
  • Computer Compatibility  : IBM Compatible VGA, SVGA, XGA, WXGA, WXGA+, SXGA, SXGA+, UXGA (compressed), MAC 16"
  • Composite/S-Video : NTSC, PAL , SECAM, PAL -M, PAL -N, NTSC4.43, 1125p(1080p@50/60), 750p(720p@50/60)
  • HDMI Video : Signal: 525i(480i), 525p(480p), 625i(576i), 1125i(1080i@50/60), 750p(720p@50/60), 1125p(1080p@50/60)
  • Plug & Play  : DDC2B

FEATURES
  • Speakers : 16W Mono (8W x 2)
  • Basic functions : Freeze, Magnifying, Blank, Auto adjustment, Search, Page Up & Down (for USB mouse function), Auto signal search, Auto eco mode
  • Picture adjustments : Aspect selection (video, data, HDMI), Equalizing Gamma Correction, Equalizing Color temperature adjustment, 2-3 pull down for NTSC, Mirror reverse image, up-side down image, Progressive Scan, Noise Reduction, Overscan
  • Digital keystone : Auto V keystone ±30 degrees (@ XGA 60Hz)
  • Advanced features : MyScreen, My Memory, My Button, My Text, My Source, Picture mode (normal, cinema, dynamic, blackboard, whiteboard greenboard, photo), Daytime Mode, Input Source Naming (English), Resolution setting, Template, Closed Caption (for NTSC & component 480i only), Audio pass through, Framelock, Audio ports assign, Cloning, Drawing function (Optional wireless pen tablet TB-1 is necessary), Eco Mode (Normal, Eco, Intelligent Eco, Saver), iOS Connectivity
  • Outward : Easy lamp replace from top, Air filter slides towards front side or top
  • Power on & off : Direct on, auto off
  • Security systems : Security bar, PIN-Lock, MyScreen Password, Keypad-Lock, Kensington slot, Transition detector, My Text, Security label
  • Network : Network presentation (PC still/moving picture transfer), Campus Notification System, Configure and control projector via web browser, receive alerts via e-mail, projector management via SNMP, C restron RoomView®, Scheduling, My Image, displaying text data transferred via the network, Command Control via network, A MX Device Discovery, PJ Link™, Network Bridge
  • OSD languages : English, French, German, Spanish, Italian, Norwegian, Dutch, Japanese, Portuguese, Simplified Chinese, Traditional Chinese, Korean, Swedish, Russian, Finnish, Polish, Turkey, Arabic, Persian, Czech, Danish, Hungarian, Romanian, Slovenian, Croatian, Greek, Lithuanian, Estonian, Latvian, Thai, Portuguese (Brazil), Indonesian, Vietnamese

CONNECTIONS
  • Digital input : 1 x HDMI (HDCP compatible)
  • Computer Input : 2 x 15-pin Mini D-sub
  • Monitor output : 1 x 15-pin Mini D-sub (RCA combination)
  • Video input :
    • 2 x 15-pin Mini D-sub (shared with analogue computer in 1/2)
    • 1 x RCA for composite
    • 1 x Mini-DIN for S-Video
  • Audio input :
    • 2 x Stereo Mini Jack
    • 1 x pair RCA (L/R)
    • 1 x Microphone Jack (Stereo Mini)
  • Audio output : 1 x pair RCA (L/R)
  • USB Type A : 2 x USB Type A (for PC-less presentation and wireless network)
  • USB Type B : 1 x USB Type B (for USB display or USB mouse control)
  • Wired network : 1 x RJ-45
  • Wireless Network : Option, IEEE801.11b/g/n ready (optional wireless adapter required)
  • Control : 1 x 9-pin D-sub for RS232C Control

POWER
  • Power Supply : 100-120V / 220-240V auto switching
  • Power Consumption/Standby : 300W/<0.5W (AC 220-240V)

PHYSICAL
  • Dimensions (WxHxD) : 317x98x288mm (excluding feet and extrusions)
  • Weight : 3.6Kg
  • Noise level : 29dB (Eco Mode) / 36dB (Normal Mode)
  • Air filter : Hybrid (Up to 6000 hours)

Miscellaneous
  • Indicator lights (lamp, temp, power), Ceiling mount image, Rear projection image, Serial number label on side, MAC PC support: PJ Control software, MAC address label on side, LiveViewer software
    • SKU
      CP-X3015WN
    • Weight
      7.92 lbs
  • Manufacturer
    Hitachi Kokusai
