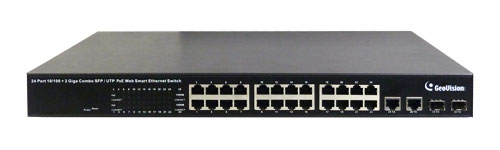

GV-POE2401 24 port 400W 802.3at 2-Port Gigabit Copper/SFP Combo Uplink 140-POE2401-G02


Details

Weight 11.00 lbs
SKU 84-POE2401-001U
Manufacturer Geovision
Recorder Type: NVR (with POE Ports)
List Price: $662.00
Sale Price: $509.00 (Save 23%)

Description


Camera packaging contents:

  1. GV-POE2401 x 1
  2. Screw x 8
  3. Rack Mount Kit x 1
  4. AC Power Cord x 1
  5. Software CD x 1
  6. GV-POE2401 Quick Start Guide x 1
  • 24-Port 10/100BaseTX PoE+ plus 2-Port Gigabit Copper/SFP Combo Uplink Port
  • IEEE 802.3at Compliant (24 Ports at Full 15.4 W)
  • Web-based Configuration and Management
  • VLAN, QoS, RSTP, IGMP Snooping, LACP, Port Security, Bandwidth Control, Storm Control
  • Max. 400 W power consumption
  • 19" Rack-mount
  • Up to 24 GV-IP Cameras support
Introduction
The GV-POE2401 is a 24-port 10/100BaseTX with RJ-45 Connectors, PoE+ plus 2-port Gigabit Copper/SFP Combo Uplink Port Rack-mount Web Smart PoE Switch. The switch supports IEEE 802.3at Power over Ethernet standard, up to 30 W per port and maximum 400 W power consumption per system, and no special network cable is required for connecting your powered devices (PD), such as IP cameras. The switch also provides exceptionally smart Web management features, such as VLAN, QoS, RSTP, IGMP Snooping, LACP, Port Security, etc. The switch is designed for medium or large network environment to strengthen its network connection and efficiency. It also gives you the option of installing it in a 19" cabinet with a rack-mount kit or underneath a desk.



Firmware

Version History

POE_Comparison.pdf

Datasheet_POE2401.pdf

Item No. (Sales Part No.) Description
140-POE2401-000 GV-POE2401 24-Port 400W 802.3at Gigabit Uplink

Name Details
GV-LC The SFP transceiver complies with IEEE 802.3z 1000BaseSX Ethernet, and provides the media transmission distance up to 220 / 550 m.
GV-LC10 The SFP transceiver complies with IEEE 802.3z 1000BaseLX Ethernet, and provides the media transmission distance up to 10 km.

Ethernet
Layer Supported L2
Ports
Number of Ports 26 ports 24-port 10/100BaseTX with RJ-45 Connectors, PoE+ 2-port Gigabit Copper/SFP Combo uplink Port
Performance
MAC Address 4 K
Buffer Memory 2.75 M bits
Transmission Method Store and Forward
Transmission Media 10/100BaseTX Cat. 5 UTP/STP 1000BaseT Cat. 5e, 6 UTP/STP
Filtering/Forwarding Rates 10 Mbps port - 14,880 pps 100 Mbps port - 148,800 pps 1000 Mbps port - 1,488,000 pps
Backplane Capacity 8.8 Gbps
Smart Features
Port Based VLAN 26
Tagged Based VLAN 32, VID = 1~4094
IGMP Snooping V1 & V2
Link Aggregation 3 groups
Quality of Service (QoS) High & Low priority queues, 802.1p
Security Port & MAC binding, 3 MAC per port
Port Management Port State, Speed/Duplex, Flow Control Configuration, Port Mirroring, Bandwidth Control, Broadcast Storm Control, PoE
Administrator Management Web Management, Password Protection, Configuration Backup/Restore, Firmware Upgrade
Mechanical Characteristics
LED Indicators Per Port: Link/Act PoE Act/Status Power
Electrical Characteristics
PoE Power Input 100 ~ 240 V/AC, 50 ~ 60 Hz
Output IEEE 802.3at Compliant Voltage, Per Port Max. 30 watts (24 Ports at Full 15.4 W / 13 Ports at Full 30 W)
PoE Power Supply Type End-Span
Max. Power Consumption 400 W
General

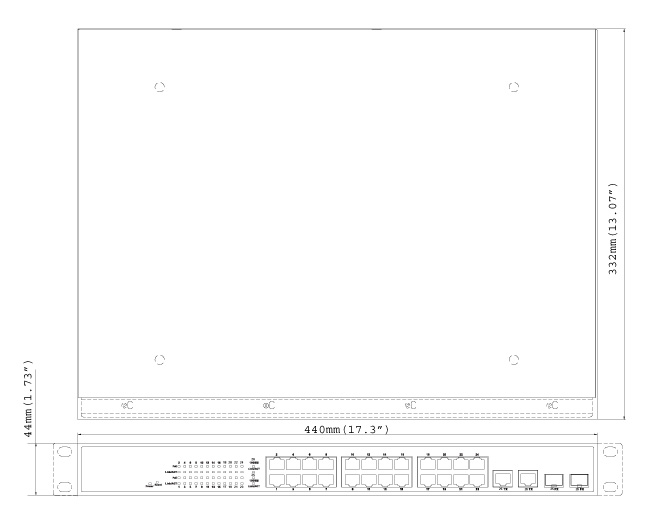

Dimensions (H x W x D) 44 x 440 x 332 mm (1.73" x 17.3" x 13.07")
Weight 4.7 kg (10.36 lb)
Operating Temperature 0°C ~ 40°C (32°F ~ 104°F)
Storage Temperature -20°C ~ 90°C (-4°F ~ 194°F)
Humidity 10 to 90% RH (non-condensing)
Standards and Regulatory
Standards IEEE 802.3 10BaseT, IEEE 802.3u 100BaseTX, IEEE 802.ab 1000BaseT, IEEE 802.3z 1000BaseSX/LX IEEE 802.3x Flow Control IEEE 802.3ad Link Aggregation Control Protocol IEEE 802.1Q VLAN IEEE 802.1p Class of Service IEEE 802.1D Spanning Tree Protocol IEEE 802.1w Rapid Spanning Tree Protocol IEEE 802.3at Power Over Ethernet (PoE+)
Regulatory CE, FCC Class A
