GV-Pad, IP signal decoder with build-in 13" display, White 140-GVPAD-W00

        GV-Pad, IP signal decoder with build-in 13" display, White 140-GVPAD-W00

        Geovision
        SKU: 89-GVPAD00-W10U
        • Decode video streams in H.264 codec at a maximum frame rate of the IP device
        • Decode up to 5 megapixel IP cameras
        • Decode up to 64 IP streams
        • Automatical search for ONVIF IP devices
        • Support for 3rd party IP cameras that adhere to RTSP, ONVIF or PSIA
        • Single View and Quad View in sequential display
        • Support for display of Matrix view through GV-Mobile Server
        • Support for 10/100 Ethernet over LAN
        • Support for Wi-Fi
        • Support for GV-Joystick control of GeoVision and third-party PT, PTZ and Speed Dome cameras
        • Support for remote firmware upgrade, IP address configuration and addition of new channel
        • Display of Matrix view through GV-Mobile Server
        • IR remote control
        • SD/SDHC card and USB drive for snapshot storage and firmware upgrade
          • 33% less
          Market price:$690.00 save $227.00
        • $463.00
        Qty:
        OR
        Camera packaging contents:

        • GV-Pad
        • IR remote control
        • Magnetic hinge
        • Screw x 4
        • AC/DC adapter (12 V, 3 A, 36 W)
        • Power cord
        • GV-IP Decoder Box and GV-Pad Software DVD
        • SD card

        Features

        • Decode video streams in H.264 codec at a maximum frame rate of the IP device
        • Decode up to 5 megapixel IP cameras
        • Decode up to 64 IP streams
        • Automatical search for ONVIF IP devices
        • Support for 3rd party IP cameras that adhere to RTSP, ONVIF or PSIA
        • Single View and Quad View in sequential display
        • Support for display of Matrix view through GV-Mobile Server
        • Support for 10/100 Ethernet over LAN
        • Support for Wi-Fi
        • Support for GV-Joystick control of GeoVision and third-party PT, PTZ and Speed Dome cameras
        • Support for remote firmware upgrade, IP address configuration and addition of new channel
        • Display of Matrix view through GV-Mobile Server
        • IR remote control
        • SD/SDHC card and USB drive for snapshot storage and firmware upgrade

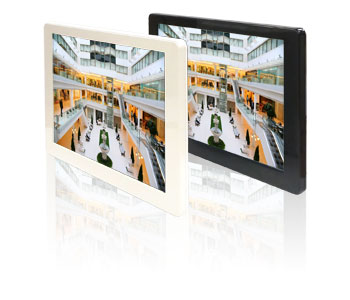

        Introduction The GV-Pad is a panel device that decodes and displays incoming IP streams from GeoVision and third-party IP devices. It is light-weighted and requires only minimal amount of installation. As a standalone device, the GV-Pad is self equipped with a display screen and supports almost all the features of a GV-IP Decoder Box. Through the network, a GV-Pad can receive and manage up to 64 IP streams. The administrators can monitor channels, take snapshots of critical moments and pause at a specific channel when events occur, all through the supplied remote control. GV-Joystick can be installed to control GeoVision and third-party PT / PTZ / Speed Dome cameras.






        Firmware

        Version History

        Datasheet_IPPad.pdf

        Item No. (Sales Part No.)Description
        140-GVPAD-W00GV-Pad (White / US)
        140-WFUSB-000GV-WiFi Adapter

        NameDetails
        GV-Joystick V2The GV-Joystick facilitates focusing, zooming, panning, tilting of GeoVision and third-party PT, PTZ and Speed Dome cameras on GV-IP Decoder Box.
        GV-WiFi USB AdapterThe GV-WiFi USB adapter is a plug-and-play device that provides wireless connectivity to GeoVision IP devices. The GV-WiFi USB Adapter complies with IEEE802.11 b/g/n (Draft 3.0) standards for wireless networking.

        Video
        Video CodecH.264
        Resolution1280 x 800
        Network
        Interface10/100 Ethernet
        ProtocolTCP, RTSP, ONVIF, PSIA
        Mechanical
        IR Remote ControlYes
        ConnectorsPower Adapter12V / 3A DC Jack (Max. 36 W)
        EthernetRJ-45
        Local Storage & FirmwareUSB slot (2.0 backward compatible, FAT32 format)
        UpgradeSD/SDHC card slot (for Class 6 or above, FAT32 format)
        General
        Operating Temperature0 °C ~ 40 °C (32 °F ~ 104 °F)
        Operating Humidity20 % ~ 80 % (with no condensation)
        Weather ResistanceIndoor use only
        ColorBlack, White
        Dimensions (W x H x D)342.8 × 220.3 × 38.3 mm (13.5 x 8.7 x 1.5")
        Net Weight1160 g (2.6 lb)
        Power Consumption36 W (max. 3 A at 12V DC)
        RegulatoryCE, FCC compliant
        LanguageEnglish

        The GV-Pad is compatible with: 1. GV-IP Camera (except GV-BX12201), GV-Video Server and GV-Compact DVR using H.264 codec 2. Third-party IP devices that support H.264 and adhere to RTSP, ONVIF or PSIA 3. GV-Mobile Server

        To decode and display non-H.264 IP channels or analog channels, connect the devices to GV-System and access them through GV-Mobile Server.
