Format HDD

Description

This guide will show how to format a drive that has been installed in a EVS device

Prerequisites

• EVS device powered on, set up and connected to the network
• Hard drive(s) installed into EVS
• Computer with network access
• IP address of EVS device

Video Instructions

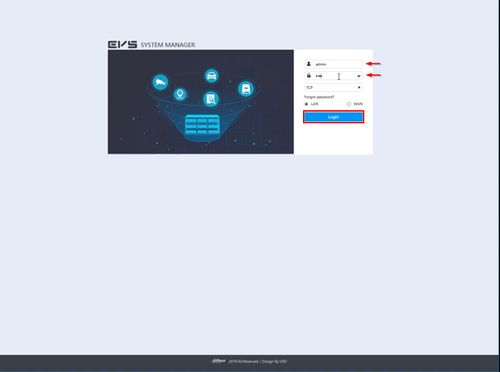

1. Log into the EVS System Manager by typing the IP in to a web browser

Enter the Username and Password and click Login

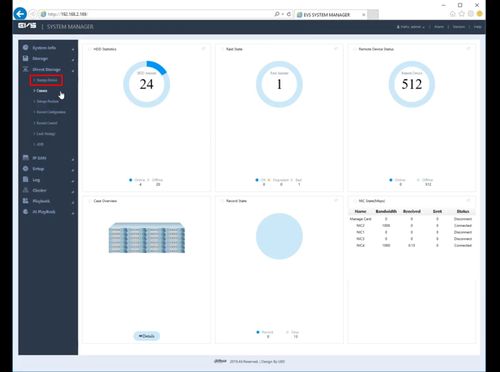

2. Click Direct Storage

3. Click Storage Device

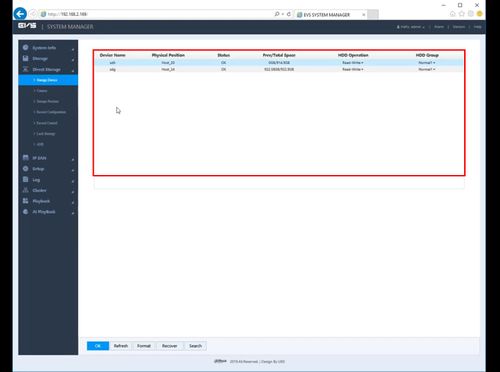

4. The window will display Hard Drives that have been installed into the EVS

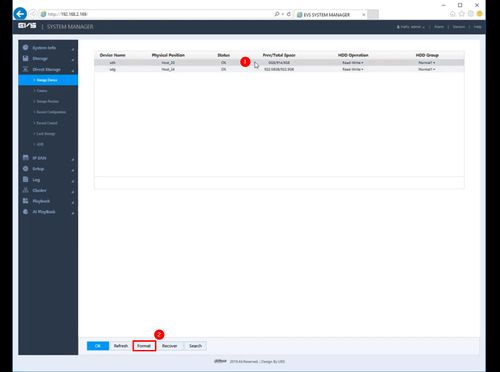

5. Left click the Hard Drive in the list

Then click Format

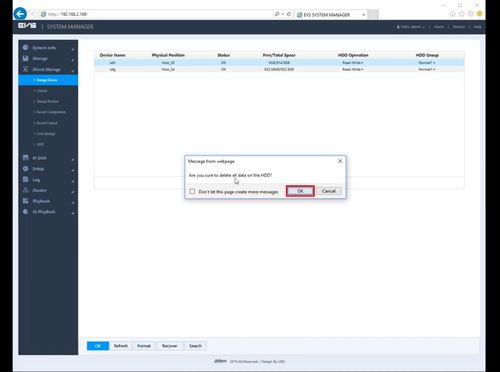

6. A prompt will appear to confirm the Format

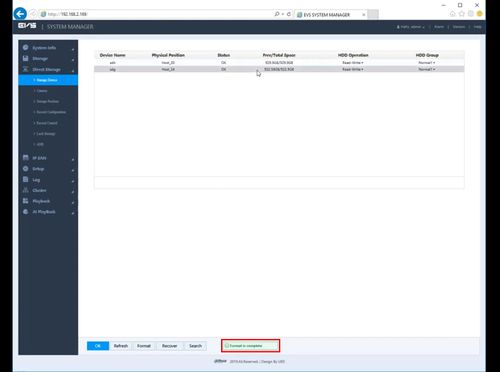

7. A system message will confirm a successful Format
