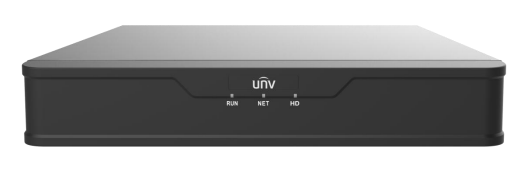

Uniview 8 Channel NVR 64Mbps Max Throughput - No HDD with Built-in 8 Port PoE

Uniview
SKU: WEC-NVR301-08S3-P8
  • Supports Ultra 265/H.265/H.264 video formats
  • 8 channel input
  • Plug & Play with 8 independent PoE network interfaces
  • Third-party IP cameras supported with ONVIF conformance: Profile S, Profile G, Profile T
  • Supports 1-ch HDMI, 1-ch VGA, HDMI at up to 4K(3840x2160) resolution
  • Up to 8 Megapixels resolution recording
  • 1 SATA HDD up to 10 TB
  • ANR technology to enhance the storage reliability when the network is disconnected
  • Supports cloud upgrade
  • Complies with Section 889 of the NDAA
    • 59% less
    Market price:$878.00 save $519.00
  • $359.00
Qty:
OR

The WEC-NVR301-08S3-P8  8-channel network video recorder (NVR) is designed for use with IP cameras. Specifically, this model is capable of supporting up to 8 IP cameras and has a maximum throughput of 64Mbps. It comes with 8 built-in PoE (Power over Ethernet) ports, which provide both power and data transmission for compatible cameras.

This particular NVR does not come with a hard disk drive (HDD) included, so one would need to be purchased separately. It supports up to 2 SATA hard drives for storage, with a maximum capacity of 8TB per drive. It also features smart H.264+ and H.265+ encoding, which provides high efficiency in video storage and transmission, as well as support for ONVIF conformance for compatibility with a wide range of cameras.

Other features of this NVR include smart search and intelligent video system (IVS) features, as well as HDMI and VGA video output for easy monitoring. It also supports advanced features such as motion detection, face detection, and people counting, which can help to enhance the security and efficiency of a surveillance system.

Overall, the WEC-NVR301-08S3-P8 8-channel NVR with built-in 8-port PoE is a reliable and efficient device that is suitable for a range of surveillance applications. Its support for 8 PoE ports, smart encoding, and IVS features make it a great choice for those looking for a powerful and efficient NVR.

Specifications

Video/Audio Input

  • IP Video Input - 8-ch
  • Two-way Audio Input - 1-ch, RCA

Network

  • Incoming Bandwidth - 60Mbps
  • Outgoing Bandwidth - 64Mbps
  • Remote Users - 128
  • Protocols - P2P, UPnP, NTP, DHCP, PPPoE

Video/Audio Output

  • HDMI/VGA Output
    • HDMI - 30fps @ 4K (3840x2160), 60fps @ 1920x1080p, 50fps @ 1920x1080p, 60fps @ 1600x1200, 60fps @ 1280x1024, 60fps @ 1280x720, 60fps @ 1024x768
    • VGA - 60fps @ 1920x1080p, 50fps @ 1920x1080p, 60fps @ 1600x1200, 60fps @ 1280x1024, 60fps @ 1280x720, 60fps @ 1024x768
  • Recording Resolution - 8MP/6MP/5MP/4MP/3MP/1080p/960p/720p/D1/2CIF/CIF
  • Audio Output - 1-ch, RCA
  • Synchronous Playback - 8-ch
  • Corridor Mode Screen - 3/4/5/7/9

Decoding

  • Decoding format - Ultra 265, H.265, H.264
  • Live view /Playback - 8MP/6MP/5MP/4MP/3MP/1080p/960p/720p/D1/2CIF/CIF
  • Capability - 1 x 30fps @ 4K, 2 x 30fps @ 4MP, 4 x 30fps @ 1080p, 8 x 30fps @ 720p, 16 x D1

Hard Disk

  • SATA - 1 SATA interface
  • Capacity - up to 10TB for each disk

Smart

  • VCA Detection - Face detection, Intrusion detection, Cross line detection, Audio detection, Defocus detection, Scene change detection, Auto tracking
  • VCA Search - Face search, Behavior search
  • Statistical Analysis - People counting

External Interface

  • Network Interface - 1 RJ-45 10M/100M self-adaptive Ethernet Interface
  • USB Interface - Rear panel:2 x USB2.0, Front panel:1 x USB2.0
  • Alarm In - 4-ch
  • Alarm Out - 1-ch

PoE

  • Interface - 8 independent 100 Mbps PoE network interfaces
  • Max Power - Max 30W for single port, Max 108W in total ( 13.5W for each )
  • Supported Standard - IEEE 802.3at, IEEE 802.3af

General

  • Power Supply - 52V DC Power Consumption: ≤ 5 W( without HDD )
  • Working Environment - +14°F ~ +131°F (-10°C ~ + 55°C), Humidity ≤ 90% RH(non-condensing)
  • Dimensions(W×D×H) - 10.2" ×9.4" ×1.7" (260mm × 240mm × 44mm)
  • Weight ( without HDD ) - 2.47 lb (≤ 1.12 Kg)
    • SKU
      WEC-NVR301-08S3-P8
    • Weight
      5.3 lbs
  • Manufacturer
    Uniview
  • Shipping Lead Time
    Ships Same Day
  • Recorder Type
    NVR (with 8 POE Ports)

Product questions

No questions yet. Be the first to ask the question!
