• GV-TMS8800

 AI deep learning: AI Perimeter Protection & Classification
(Human, Vehicle)
 1/3.0" progressive scan super low lux CMOS sensor
 Triple streams from H.265, H.264 or MJPEG
 Min. illumination at 0.002 lux
 Up to 25 fps at 2688 x 1520
 Wide Dynamic Range Pro (WDR Pro)
 Day and night function (with removable IR-cut filter)
 Intelligent IR
 IR distance up to 30 m (100 ft)
 Built-in micro SD card slot (SD / SDHC / SDXC / UHS-I, Class
10) for local storage
 3-axis mechanism (pan / tilt / rotate)
 Ingress protection (IP67)
 Vandal Resistance (IK10 for metal casing)
 DC 12V / PoE (IEEE 802.3af)
 Built-in microphone
 Two-way audio capable
 Defog
 3D noise deduction
 AI analytics (Intrusion, Cross Line, Enter Area, Leave Area,
Face Detection, People Flow Counting, Crowd Density
Monitoring)
 Motion detection
 Tampering alarm
 Text overlay
 Privacy mask
 12 languages supported
 ONVIF (Profile G, S, T) conformant

Introduction

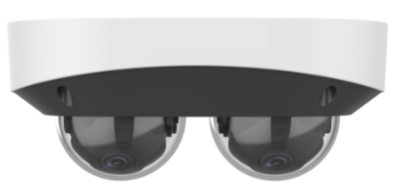

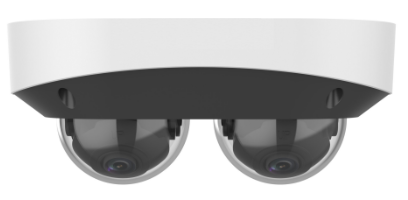

GV-TMS8800 features two 4MP CMOS image sensors to deliver a video resolution of 2688 x 1520 at up to 25fps. It’s an outdoor,
fixed, network camera equipped with an automatic IR-cut filter and two IR LEDs for day and night surveillance. The camera supports
H.265 video codec to achieve better compression ratio while maintaining high quality pictures at reduced network bandwidths. The
camera adheres to IP67 and IK10 standards, and can be powered through PoE.
Empowered by deep learning algorithms, AI technology distinguishes human and vehicles from other moving objects. Integrated
with GeoVision Video Management Software (VMS), it supports AI perimeter protection, real time alert, playback and more.

Specifications
Camera
Image Sensor 1/3.0" progressive scan CMOS
Picture Elements 2688 (H) x 1520 (V)
Minimum Color 0.002 Lux (F1.6, AGC ON)
Illumination IR ON 0 Lux
Shutter Speed Auto / Manual (1 ~ 1/100000 sec)
White Balance Automatic, Manual
Gain Control Automatic, Manual
S/N Ratio 52 dB
WDR Pro Yes
Dynamic Range 130 dB
Lens
Megapixel 4 MP
Day / Night Yes (with removable IR-cut filter)
Lens Type Fixed
Focal Length 2.8 mm
Maximum Aperture F/1.6
Mount M12
Horizontal FOV 97.7°
Focus Fixed
Operation Zoom Fixed
Iris Fixed
IR LED Quantity 2 IR LEDs
Max. IR Distance 30 m (100 ft)
Operation
Video Compression H.265, H.264, MJPEG
Video Streaming Triple streams from H.265, H.264 or MJPEG
Frame Rate

25 fps at 2688 x 1520, 25 fps at 2560 x 1440, 30 fps at 2304 x 1296, 30 fps at 1920 x 1080,
30 fps at 1280 x 720 (60 / 50 Hz)
* The frame rate and performance may vary depending on the number of connections and
data bitrates (different scenes).

Deep Learning Function

Sensor 1 Intrusion, Cross Line, Entering Area, Face Detection, Leaving Area (Human & Vehicle

AI Analytics classification), People Flow Counting, Crowd Density Monitoring

Sensor 2 Intrusion, Cross Line, Entering Area, Leaving Area (Human & Vehicle classification)

Network
Interface 10/100 Base-TX Ethernet
Protocol 802.1x, ARP, DHCP, DDNS, DNS, DynDNS, FTP, HTTP, HTTPS, ICMP, IGMP, IPv4, IPv6, NTP,
PPPoE, QoS, RTCP, RTP, RTSP, SMTP, SNMP, TCP, UDP, UPnP, ONVIF (Profile G, S, T)

Video Resolution
Main Stream 2688 x 1520 (Default), 2560 x 1440, 2304 x 1296, 1920 x 1080, 1280 x 720
Sub Stream 1280 x 720, 720 x 576 (Default), 640 x 360, 704 x 288, 352 x 288
Third Stream (Closed by Default) 720 x 576, 640 x 360, 704 x 288, 352 x 288 (Default)
Mechanical
Temperature Detector No
Pan 0° ~ 180°
Tilt 0° ~ 66° Camera Angle
Adjustment

Rotate 0° ~ 346°
Power DC Jack (DC 12V, 1.25A), PoE
Ethernet RJ-45 connector
Audio

1 In (Built-in or external microphone with power supply)
1 Out (Audio Out Wire)
*The Audio In port only support microphones with power supply.

Digital I/O I/O wires

Connectors

Local Storage Micro SD card slot (SD / SDHC / SDXC / UHS-I, Class 10)

*UHS-II card type is not supported.

General
Operating Temperature -30°C ~ 60°C (-22°F ~ 140°F)
Humidity 0% ~ 95% (no condensation)
Power Source 12V DC / PoE (IEEE802.3af)
Max. Power Consumption 9.1W

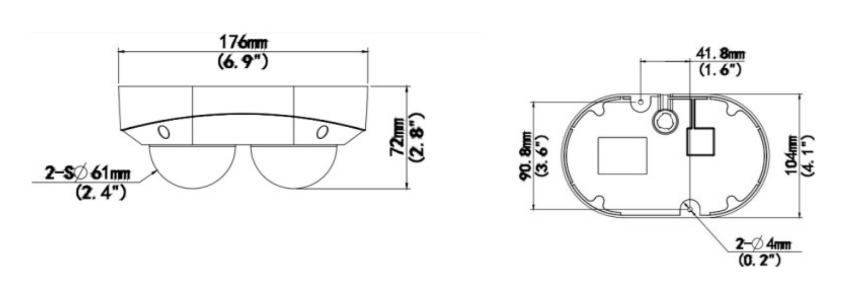

Dimensions Ø 176 × 104 × 72 mm (Ø 6.9” × 4.1’’ ×2.8”)
Weight 0.62 kg (1.37 lb)
Ingress Protection IP67
Vandal Resistant IK10 for metal casing
Certification FCC, CE, RoHS, UL compliant
Web Interface
Installation Management Web-based configuration
Maintenance Firmware upgrade through Web Browser or GV-IP Device Utility
Access from Web Browser Live View, Video Recording, Change Video Quality, Bandwidth Control, Image Snapshot,

Defog, Text Overlay, Image Masking

Language Czech, English, French, German, Hungarian, Italian, Japanese, Polish, Portuguese, Russian,

Spanish, Traditional Chinese

Software Applications
Software Supported

GV-DVR / NVR (V8.9.1), GV-VMS (V17.4.4 / V18.2.1), GV-Control Center (V3.8.0 / V4.0.1),
GV-Edge Recording Manager Windows Version (V2.1.0), GV-Recording Server / Video
Gateway (V2.0.1), GV-Redundant / Failover Server (V1.2.0), GV-Mobile Server (V1.5.1),
GV-AI Guard (V1.0.0)

Live Viewing Browser (IE, Edge, Chrome, Firefox, Safari), Mobile APP
