DH-IPC-PFW8601N-H-A180
| Specifications | Quick Start Guide | Manual | Firmware | FPGA Firmware |
|---|---|---|---|---|
Build Date: 8-13-2019 | Build Date: 8-13-2019 |
| Series: | Ultra |
| Body: | Panoramic Bullet |
| Image Sensor: | Three (3), 1/2.8-in. 2 MP CMOS Sensors |
| Resolution: | 4096 (H) x 832 (V) |
| Angle of View: | Horizontal: 180° Vertical: 44° |
| Lens Type: | Fixed |
| Focal Length: | 3.6 mm |
| Min. Illumination: | Color: 0.007 Lux at F1.8 IR: 0 Lux at F1.8 (with IR on) |
| Day/Night: | Auto (ICR), Color, B/W |
| Max. IR Range: | Up to 30.0 m (98.43 ft) |
| WDR: | 120dB |
| Video Compression: | Smart H.265+, H.265, Smart H.264+, H.264 |
| Audio Compression: | G.711a, G.711Mu, AAC, G.726 |
| Frame Rate: | 4096 x 832 at 30 fps |
| Multi-Streaming: | 3 Streams |
| IVS: | Motion, Tripwire, Intrusion, Scene Change, Abandoned/Missing Object, Heat Map |
| ONVIF: | Yes |
| Audio In: | One (1) Channel |
| Audio Out: | One (1) Channel |
| Memory Slot: | Micro SD Slot, maximum 128 GB |
| Alarm In: | One (1) Channel |
| Alarm Out: | One (1) Channel |
| IP Rating: | 67 |
| IK Rating: | 10 |
| Operating Temp: | –40° C to +60° C (–40° F to +140° F) Less than 95% RH |
| Power: | 24 VAC or PoE+ (802.3at, Class 4) < 24 W |
| ePoE: | No |
Features
- 3 x 2 MP Sensors for a 180° Panoramic View
- Starlight Technology for Ultra-low Light Sensitivity
- Smart H.265+ and H.264 Dual Codecs
- True Wide Dynamic Range (120 dB)
- True Day/Night
- Maximum IR Distance 30 m (98 ft) with Smart IR
- ArcticPro Series Camera - Operational down to –40° C (–40° F)
- IP67 Ingress Protection and IK10 Vandal Resistance
- Intelligent Video System (IVS)
- On-board Storage
- Five-year Warranty*
Video Instructions
Compression
Intelligent Features
Interfaces
| WebUI Old | SmartPSS | DSS Express S |
|---|---|---|
 |  |  |
Example Images
Body Style with Compatible Accessories

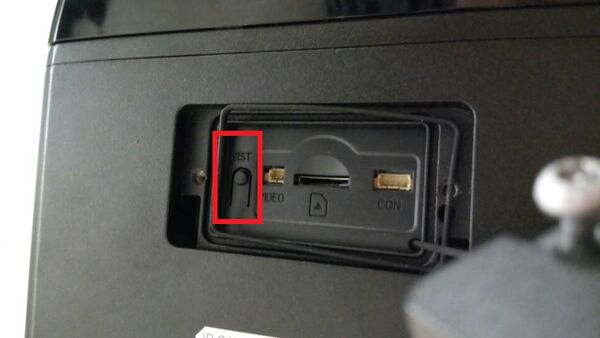

Reset Button
