DH-IPC-HDBW82A1EN-ZI
Series:Super
Image Sensor:1/2.8” 2M progressive scan CMOS
Resolution:2MP
H Field of View:99°-36°
Min. Illumination:0.005Lux/F1.4(Color), 0Lux/F1.4(IR on)
Day/Night:ICR
Max. IR Range:36 feet
WDR:140dB
Compression:H.264H/MJPEG/JPEG
FPS:30fps@1080p
Multi-Streaming:3 Streams
IVS:Tripwire
Intrusion
Scene change
Missing/Abandoned
Audio detect
Face detect
People counting
Heat map
ONVIF:2.4
Audio In:1
Audio Out:1
Built In Microphone:1
Memory Slot:Micro SD-Max 128GB
Alarm In:1
Alarm Out:1
IP Rating:67
IK Rating:10
Working Temp:-30°C~+60°C, Less than 95%RH
Power:DC12V, PoE (802.3af)
Firmware:URL


Features

  • 1/2.8” 2Megapixel progressive scan CMOS
  • Support H.265/H.264/MJPEG dual codec
  • Smart triple streams supported
  • Max 25/30fps@1080P(1920x1080)
  • Ultra 3D DNR
  • Smart detection
  • Intelligent Function
  • 2.7 ~12mm varifocal motorized lens
  • Max. IR LEDs length 50m
  • Micro SD memory, IP67, PoE

CAD Images

  • E-Z Dome copy 1.JPG

Compression

FOV

  • Camera Height: 10m
    Focal Length: 2.7mm
    Target Horizontal Dist: 47.4m

  • Camera Height: 10m
    Focal Length: 12mm
    Target Horizontal Dist: 215.3m

Firmware

You can update your device with the IP Firmware Toolkit.

Firmware Update Instructions

Firmware Update Download

Firmware Changelog

  • Build Date: 07/25/16
  • English, French, Spanish optional,English default,NTSC


Intelligent Features

  • Face Detect

  • Tripwire

  • Intrusion

  • Abandoned/Missing

  • People Counting

  • Heatmap

  • Scene Change

Compatible Accessories

Compatible Accessories
Accessories Combo 1PFA138PFA138
Accessories Combo 2PFA101PFA101PFB302SPFB302S
Accessories Combo 3PFB201CPFB201C
Accessories Combo 4PFA101PFA101PFB300CPFB300C
Accessories Combo 5PFA138PFA138PFA150PFA150
Accessories Combo 6PFA101PFA101PFB302SPFB302SPFA150PFA150
Accessories Combo 7PFA101PFA101PFB300CPFB300CPFA150PFA150
Accessories Combo 8PFA101PFA101PFB302SPFB302SPFA152PFA152
Accessories Combo 9PFA138PFA138PFA151PFA151
Accessories Combo 10PFA101PFA101PFB302SPFB302SPFA151PFA151

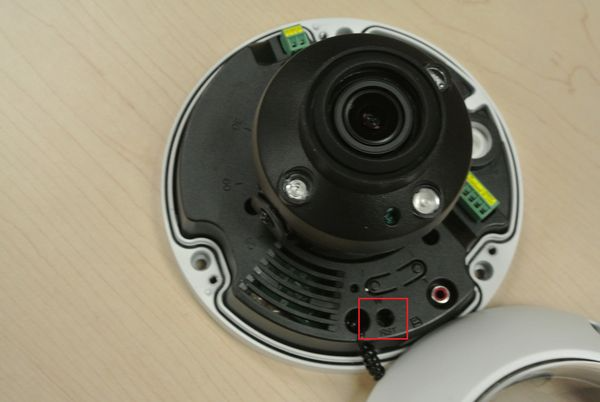

Reset Button

HDBW8231EN-Z Reset Button.JPG

Specifications

Model

DH-IPC-HDBW82A1EN-ZI

Camera
Image Sensor1/2.8” 2Megapixel Exmor R CMOS
Effective Pixels1920(H)x1080(V)
Scanning SystemProgressive
Electronic Shutter SpeedAuto/Manual, 1/3~1/100000s
Min. Illumination

0. 005Lux/F1.4( Color), 0Lux/F1.4(IR on)

S/N Ratio

More than 50dB

Video Output

1 port

Camera Features
Max. IR LEDs Length50m
Day/NightAuto(ICR)/Color/B/W
Backlight CompensationBLC / HLC / Ultra WDR(140dB)
White BalanceAuto/Manual
Gain ControlAuto/Manual
Noise Reduction3D
Privacy MaskingUp to 4 areas
Lens
Focal Length2.7 -12mm motorized
Max ApertureF1.4
Focus ControlAuto
Angle of ViewH: 99°(Wide)~36°(Tele)
Lens TypeMotorized /Auto Iris(DC)
Mount TypeBoard-in Type
Video
CompressionH.265/H.264/MJPEG
Resolution1080P(1920×1080)/720P(1280×720)/D1(704×576) /CIF(352×288)

Frame Rate

Main Stream1080P (1~25/30fps)
Sub StreamD1/CIF(1 ~ 25/30fps)
Third Stream1080P/720P/D1(1 ~ 25/30fps)
Bit RateH.264: 40K ~ 10Mbps
Audio
CompressionG.711a / G.711u/AAC
Interface1/1 channel In/Out
Smart Function(Optional)
Smart detectionTripwire
Intrusion
Scene change
Missing/Abandoned
Audio detect
Face detect
Intelligent functionPeople counting
Heat map
Network
EthernetRJ-45 (10/100Base-T)
Wi-FiN/A
ProtocolIPv4/IPv6, HTTP, HTTPS, SSL, TCP/IP, UDP, UPnP, ICMP, IGMP, SNMP, RTSP, RTP, SMTP, NTP, DHCP, DNS, PPPOE, DDNS, FTP, IP Filter, QoS, Bonjour
ONVIFONVIF,PSIA,CGI
Max. User Access20 users

Smart Phone

iPhone, iPad, Android, Windows Phone

Auxiliary Interface
Memory SlotMicro SD, Max 128GB
Alarm1/1 channel In/Out
General
Power SupplyDC12V/AC24V, PoE (802.3af)
Power ConsumptionMax 15W
Working Environment-30°C~+60°C, Less than 95% RH
Ingress ProtectionIP67,IK10
DimensionsΦ159mm×117.9mm
Weight0.8Kg
