DA-3212 CVS (32) 1x2 Color Video DA Cards with Isolated Differential Inputs

CVS
SKU: WECDA-3212

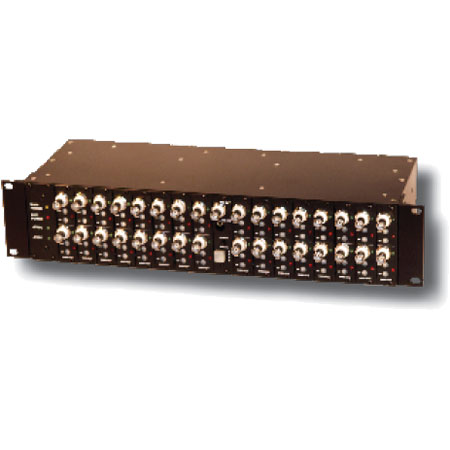

The DA-3212 consists of a CH-3212 card frame system and (16) DABS-2032. Each card has (2) 1x2 adjustable cable compensating amplifiers with ground loop blocking, surge protected inputs. The DA-3212 includes a built in 32 pos. sequential, RS-232 controllable switcher which can be operated locally, with an optional remote control unit or a computer. For 1x1 operation use only the output needed and simply leave the unused one unterminated or each board can be configured for 1x4 operation. Output 1 of each channel can be custom “pre emphasized” for driving long cable distances. On the front of the unit in addition to the video inputs, you will find the switcher output, remote switcher control input, local switcher controls, indicators and video presence indicators for each input. The individual I/O boards are interchangeable through the front of the unit. The DA-3212 has 2 power supply inputs for optional power back up
    • 25% less
    Market price:$6196.00 save $1549.00
  • $4647.00

OR
The DA-3212 consists of a CH-3212 card frame system and (16) DABS-2032. Each card has (2) 1x2 adjustable cable compensating amplifiers with ground loop blocking, surge protected inputs. The DA-3212 includes a built in 32 pos. sequential, RS-232 controllable switcher which can be operated locally, with an optional remote control unit or a computer. For 1x1 operation use only the output needed and simply leave the unused one unterminated or each board can be configured for 1x4 operation. Output 1 of each channel can be custom “pre emphasized” for driving long cable distances. On the front of the unit in addition to the video inputs, you will find the switcher output, remote switcher control input, local switcher controls, indicators and video presence indicators for each input. The individual I/O boards are interchangeable through the front of the unit. The DA-3212 has 2 power supply inputs for optional power back up. Optional terminal strip power input connectors for Din rail type power sources are available. It has Inputs - Composite Video and it is Input Connectors – BNC with Input Level - 1vpp Into 75 Ohms and it has Input Impedance - 75 ohm +/-5% and it is Outputs - 2x Per Input it has Output Connector – BNC It has Output Impedance - 75 ohm +/-5% And it is Gain In/Out - Unity: +/-10% With Diff Gain - <1% It has Diff. Phase - <1° It is Frequency Response - 0-15mHz +/- .5dB &Power / Supply Hum - <63dB It is H Tilt - <1% It has V Tilt - <1% It has DC Operation - 12 to 18VDC Isolated Source And it is DC Power Draw - Based On Card Installed In Unit It has Power Connector - 3.5mm Phono It is Size - 19”W x 8”D x 3.5”H It has Weight - <15lbs and it has Optional Remote Control - CTS-3200 it has Environment - 0-70°C
    • SKU
      WECDA-3212
    • Weight
      15 lbs
  • Manufacturer
    CVS
