TROVE3HW3/16DR/ULX/PTC/115

SKU: T3HWK7516E

T3HWK7516E

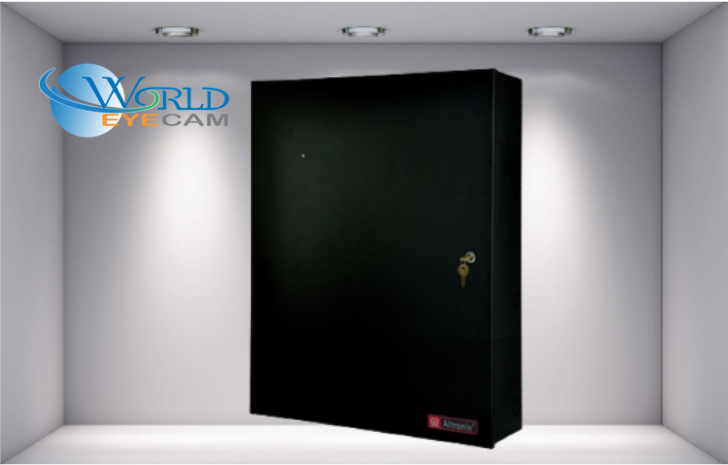

16-Door Altronix/Honeywell Access and Power Integration Kit - Trove3HW3 with THWD2, AL1024ULXB2, AL1012ULXB, (2) ACM8CB, PD8ULCB, RSB2


Altronix T3HWK7516D kit consists of Trove3 enclosure, THW3 Honeywell/Altronix backplane and THWD2 Honeywell/Altronix door backplane with one (1) 24VDC @ 10A and one (1) 12VDC @ 10A power supply/chargers, two (2) 8-output PTC access power controllers and one (1) 8-output PTC power distribution module. Also featured is a rocker switch bracket with two (2) rocker switches.
THW3 backplane accommodates up to six (6) Honeywell 4200 Series or WIN-PAK Series boards and up to two (2) Honeywell PRO22MX8/PW5K1MX8 boards for up to sixteen (16) doors in a single enclosure. THWD2 accommodates additional one (1) Honeywell PRO22MX8/PW5K1MX8 and up to six (6) Honeywell 4200 Series or WIN-PAK Series. Trove simplifies board layout and wire management, reduces installation time and labor costs.

  • Specifications
  • Agency Listings
  • Accessories
  • Kit Contents
  • Dimensions & Weight
  • Documentation
  • AL1024ULXB2 Power Supply/Charger - 1

      • Input
        • Voltage: 115VAC, 60Hz, 4.2A max.
        • Main Fuse: 5A / 250V.
      • Output
        • Voltage: 24VDC (UL 1481).
        • Current: 8A continuous supply current with 10A supply current during alarm (UL 1481) 24VDC @ 10A (UL 294).
        • Other: Short circuit and thermal overload protection. Filtered and regulated.
  • AL1012ULXB Power Supply/Charger - 2

      • Input
        • Voltage: 115VAC, 60Hz, 2.6A max.
        • Main Fuse: 5A / 250V.
      • Output
        • Voltage: 12VDC.
        • Current: 10A continuous supply current.
        • Other: Short circuit and thermal overload protection. Filtered and regulated.
  • Both Power Supplies

      • Battery Backup (not included)
        • Fuse Rating: 15A @ 32V.
        • Type: Sealed lead acid or gel type.
        • Failover: Upon AC loss, instantaneous.
      • Supervision
        • AC Failure: Form “C” contacts.
        • Battery: Form “C” contacts.
      • Indicators LED
        • Input: 115VAC is present.
        • DC Output: Powered.
        • Battery: Discharged or not connected.
  • PD8ULCB Power Distribution Module

      • Input
        • Voltage: 12VDC from AL1012ULXB.
      • Outputs
        • Voltage: 12VDC.
        • Eight (8) PTC protected outputs. 2.5A per output max.
        • Output PTCs: 2.5A.
      • Indicators (LED)
        • Green LED: DC Output.
  • Two (2) ACM8CB Access Power Controllers

      • Input
        • Voltage: 24VDC from AL1024ULXB2.
        • Input Fuse: 10A / 250V.
      • Outputs
        • Class 2 power-limited auto-resettable outputs.
        • Voltage: 24VDC.
        • Eight (8) 24VDC independently controlled PTC outputs:
        • a) Fail-Safe and/or Fail-Secure power outputs form “C” Relays rated 28VAC or VDC @ 2.5A.
        • b) Any combination of the above.
        • Output PTCs: 2.5A
      • Indicators (LED)
        • Red LEDs: Outputs are triggered (relays energized).
        • Green LED: FACP disconnect is triggered.
  • Environmental

      • Temperature
        • Operating: 0° C to 50° C (32° F to 122° F).
        • Storage: - 20° C to 70° C ( - 4° F to 158° F).
      • Relative Humidity
        • Relative Humidity 85% +/- 5%.
      • BTU/Hr. (approx.):
        • 177 BTU/Hr.
