BX2CA-600GB BX2 Continuous Archive


Details

Weight 40.70 lbs
SKU BX2CA-600GB
Manufacturer Dedicated Micros
List Price: $14,987.50
Sale Price: $8,992.50 (Save 40%)

Description

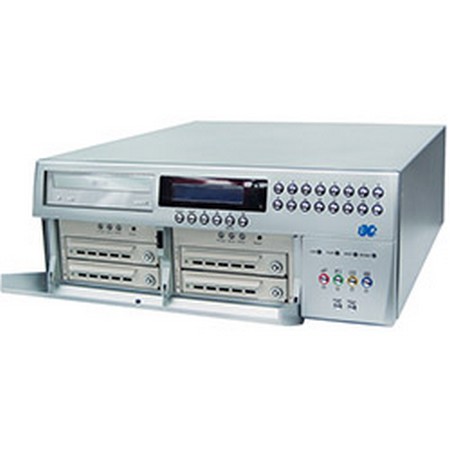

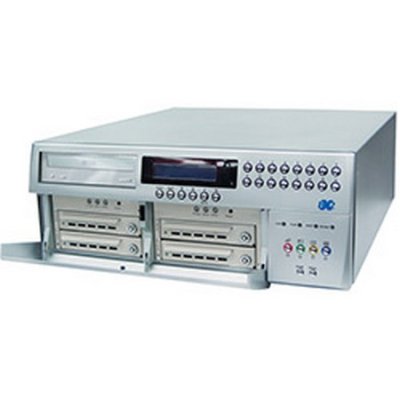

BX2CA-600GB BX2 Continuous Archive. The Dedicated Micros BX2CA-600 16-channel DVR has all the features of a standard BX2 unit plus a hot swappable drive system that can be configured for hard drive mirroring. This means that should any of the four drives fail, all of its data is saved on another drive, making this DVR an indispensable tool for high level security applications that cannot afford the risk of losing any information. Dedicated Micros designed this DVR to provide fail-safe operation for high level security applications that cannot risk losing any information. To this end, they supplied this unit with four hot-swappable 300GB hard drives. Two of its four drives can be configured for RAID 1 operation, mirroring the contents of the other two drives. This fault-tolerant method means that should any one of the four drives fail, its contents are saved on another drive. By using hot-swappable drives instead of fixed storage, there's no need to ever delete or overwrite any video material. When a drive becomes full, simply remove it from its caddy and replace it with a fresh IDE drive. This is an important feature for applications requiring footage to be stored for long periods of time. Video stored on a removable drive can also be viewed on a PC using DM's optional USB viewer (Part# USBVIEWER). Images from all 16 cameras can be accessed for recording, viewing, playback and archiving simultaneously by local and network users with no degradation in image quality or performance. In addition to its large internal storage capacity, this DVR features a built-in CD burner to facilitate the quick retrieval and transfer of critical event footage or archived material. This eliminates the need to hand over the entire DVR to law enforcement personnel for evidence purposes or have them wait around until a VHS copy could be made. Live and recorded images can be viewed from a remote network location on a standard Internet browser or by installing the included Network Viewer software for better video management. As with local users, remote network clients can choose to view camera images in full or in various multi-screen modes of up to 16 images on one screen. Up to five clients can access the DVR simultaneously, with a password protection system determining the level of access for general users and an administrator. Remote network users can also control the pan, tilt and zoom functions of certain compatible cameras attached directly to this unit's control ports. To preserve the integrity of captured footage, this unit applies a digital signature to an image or sequence of images. This signature consists of an imprint of the date and time and the ID of the source camera. Audio from a single camera can be recorded and played back in sync with the video. This allows an operator or network user to hear and speak with a person at the camera location. This is a useful feature for many applications including retail stores, factories and transportation hubs.
