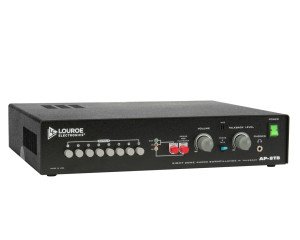

Louroe AP-8TB 8-Zone Non-Alarming Audio Monitoring Base Station
- Eight zone listen and talkback audio base station
- Built in microphone and speaker
- RCA input/ output to DVR for recording and playback
- Volume control for both listen and talkback
- 3.5 mm headphone jack for private listening
- May be located up to 1000′ from the Louroe microphone
- Shipping info
We deliver worldwide
- Payment methods
- Return Policy
We accept returns
- Customer Reviews
Check out our customer Reviews
- Eight zone listen and talkback audio base station
- Built in microphone and speaker
- RCA input/ output to DVR for recording and playback
- Volume control for both listen and talkback
- 3.5 mm headphone jack for private listening
- May be located up to 1000′ from the Louroe microphone
- Built-in 3 speaker for monitoring both live audio and playback audio
- Microphone output jack for each zone for connection to DVR with multiple audio inputs
- Built-in microphone for talkback to the remote speaker
- 3.5mm headphone jack on front panel
- Desktop model
- Contains internal power supply for direct connection to 120 Vac source
AP-8TB is a eight zone non-alarming audio monitoring base station with listen and talkback. As a system (with Louroe speaker/microphones), it provides live audio monitoring from eight zones, one at a time, with a built-in speaker and a built-in microphone for talkback to the remote area. Zone selection is by push button. Model AP-8TB is designed to interface with a CCTV or DVR. Special filtering enhances the sound quality of audio during playback. For the rackmount version, request model AP8-TB-RM
The Model AP-8TB is four zone audio monitoring base stations designed for two-way listen/talkback. As a complete system, any zone can be monitored, by pressing the button switch for the desired zone. The units contain a 3” built-in speaker for monitoring audio and a built-in microphone for talking back to the remote zone. Each zone has an audio output jack (RCA) for connection to a DVR with multiple audio inputs. All Louroe Speaker/Microphones (Model TLI, TLM, TLMC, TLSP, and TLO) are compatible with the AP-4TB.
Dimensions:
12.5″ L x 10.25″ W x 2.5″ H
APPLICATION
- Jail Cell Monitoring
- Building Peripherals
- Therapy Labs
- Warehouses
- Classroom Monitoring
- Storage Facilities
- Day Care Centers
....Anywhere CCTV Cameras Are Installed
SPECIFICATIONS
| Input sensitivity (talkback microphone) | -45 dB |
| Monitor power output | 1W @ 8W |
| Talkback power output | 1.5W into 70V line |
| Audio output impedance | 600W |
| Audio input impedance | 10kW |
| Audio frequency response (flat) | 100 Hz to 10kHz |
| Audio frequency response (enhanced) | -20 dB @ 200 Hz to +8dB @3 kHz |
| Headphone impedance | 8 to 600W |
| Power input | 120 Vac, 60Hz |
| Fuse | ¼ A slow-blow |
| Dimensions | 10¼"L x 12½"W x 2 ½”H |
| Weight | 8 lbs 12 oz |
| Shipping Weight | 10 lbs |
