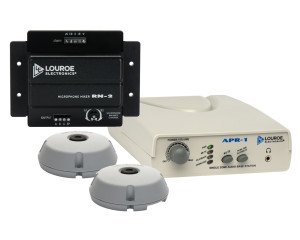

Louroe ASK-4 #401 Audio Monitoring Kit
APR-1:
Line level audio output (RCA) to DVR
Base station with 3” speaker for monitoring live audio and playback from a DVR
Durable, high impact ABS housing
3.5 mm headphone jack for private listening
Verifact® A:
Omni-directional, within 30′ diameter circle
High impact anti static ABS microphone housing
Can be placed up to 1000′ away from the base station
RN-2:
Two channel mixer with adjustable pan potentiometer
- Shipping info
We deliver worldwide
- Payment methods
- Return Policy
We accept returns
- Customer Reviews
Check out our customer Reviews
APR-1:
Line level audio output (RCA) to DVR
Base station with 3” speaker for monitoring live audio and playback from a DVR
Durable, high impact ABS housing
3.5 mm headphone jack for private listening
Verifact® A:
Omni-directional, within 30′ diameter circle
High impact anti static ABS microphone housing
Can be placed up to 1000′ away from the base station
RN-2:
Two channel mixer with adjustable pan potentiometer
The ASK-4® #401 is a two zone audio monitoring kit compatible with most recorders. The kit is designed for audio monitoring and for interfacing with a DVR and for extended zone coverage. It is ideal for Live Monitoring Systems. The APR-1 desktop base unit has a speaker for monitoring live audio and playback. It contains a mute switch to mute both live and playback audio. The audio mixer RN-2 allows for extended zone coverage and the kit comes with two Verifact® A microphones designed for ceiling mount applications. The ASK-4 #401 is a single zone audio monitoring system that contains two Verifact A Microphones, combined to expand the area to be monitored. Model RN- 2 Mixer brings the microphone signals together. Model APR-1 Audio Base Station contains a built-in speaker for providing both live audio and audio playback from a DVR/VCR or other audio recording devices that accept line level input. A 12 Vdc Power Supply and a dual RCA cable (for connection to recording device) complete the kit contents. Wiring requirement for ASK-4 #401 is 2 conductor shielded, 22 gauge with a 24 gauge drain wire. (not supplied by Louroe) IMPORTANT REMINDER
The two microphones are designed to expand the area of coverage and are not separate zones. Both microphones serve as one audio zone. Approximate coverage in a normal acoustical environment is 30’ x 60’.
Dimensions:
Microphone- 4″ Diag. x 1.5″ H
Base Station- 8.25” L x 5.75′ W x 1.375” H
Audio Mixer- 6.125″ L x 4.625″ W x 1.25″ H
APPLICATION
The ASK-4 #401 can be used in any audio monitoring situation where one microphone will not adequately provide required coverage due to size or length of area:
SPECIFICATIONS (RN-2)
SPECIFICATIONS (Base Station - APR-1)
Line level audio output (RCA) to DVR
Base station with 3” speaker for monitoring live audio and playback from a DVR
Durable, high impact ABS housing
3.5 mm headphone jack for private listening
Verifact® A:
Omni-directional, within 30′ diameter circle
High impact anti static ABS microphone housing
Can be placed up to 1000′ away from the base station
RN-2:
Two channel mixer with adjustable pan potentiometer
The ASK-4® #401 is a two zone audio monitoring kit compatible with most recorders. The kit is designed for audio monitoring and for interfacing with a DVR and for extended zone coverage. It is ideal for Live Monitoring Systems. The APR-1 desktop base unit has a speaker for monitoring live audio and playback. It contains a mute switch to mute both live and playback audio. The audio mixer RN-2 allows for extended zone coverage and the kit comes with two Verifact® A microphones designed for ceiling mount applications. The ASK-4 #401 is a single zone audio monitoring system that contains two Verifact A Microphones, combined to expand the area to be monitored. Model RN- 2 Mixer brings the microphone signals together. Model APR-1 Audio Base Station contains a built-in speaker for providing both live audio and audio playback from a DVR/VCR or other audio recording devices that accept line level input. A 12 Vdc Power Supply and a dual RCA cable (for connection to recording device) complete the kit contents. Wiring requirement for ASK-4 #401 is 2 conductor shielded, 22 gauge with a 24 gauge drain wire. (not supplied by Louroe) IMPORTANT REMINDER
The two microphones are designed to expand the area of coverage and are not separate zones. Both microphones serve as one audio zone. Approximate coverage in a normal acoustical environment is 30’ x 60’.
Dimensions:
Microphone- 4″ Diag. x 1.5″ H
Base Station- 8.25” L x 5.75′ W x 1.375” H
Audio Mixer- 6.125″ L x 4.625″ W x 1.25″ H
APPLICATION
The ASK-4 #401 can be used in any audio monitoring situation where one microphone will not adequately provide required coverage due to size or length of area:
- Hallways
- Day Care Centers
- Show Rooms
- Convenience Stores
- Cashier Booths
- Anywhere CCTV cameras are installed
- 2 Verifact Model A Microphones
- 1 Model APR-1 Single Zone Base Station
- 1 RN-2 Microphone Mixer
- 1 12 Vdc Power Supply
- Dual RCA cable for connection to DVR/VCR
| Type | Electret Condenser |
| Output | Line Level (0 dB 600W @ 1 kHZ) |
| Frequency response | 50 Hz to 15 kHz |
| Current drain | 10 mA |
| Supply voltage | 12Vdc |
| Dimensions | 4"Dia x 1 ½"H |
| Weight | 3.5 oz |
| Input Impedance | 20kW |
| Output Impedance | 1k @1kHz |
| Output Gain | +5dB |
| Dimensions | 6 1/8“L x 4 5/8 “W x 1 1/4”H |
| Weight | 5.5 oz |
| Shipping Weight of kit | 3 lbs |
| Monitor output power | 1W@8W |
| Audio output impedance | 600W @ 1kHzr |
| Audio input impedance | 10KW |
| Freq. response | 100 Hz to 10 kHz |
| Headphone impedance | 8 to 600W |
| Power supply | 12 Vdc, 500 mA |
| Dimensions | 8 ¼"L x 5 ¾”W x 1 3/8" H |
| Weight | 1 lb 6 oz |
| Shipping Weight of kit | 4 lbs |
