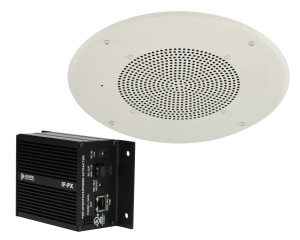

Louroe ASK-4 # 370 Audio Monitoring Kit
IF-PX:
Single zone Power over Ethernet (PoE) extractor
Line level audio in & out (3.5mm jacks)
Adjustable gain potentiometer
Low-profile for ease of installation
Durable, powder coated extruded aluminum housing
Verifact® A:
Omni-directional, within 30′ diameter circle
Durable, high impact ABS housing
Can be placed up to 1000′ away from the base station
- Shipping info
We deliver worldwide
- Payment methods
- Return Policy
We accept returns
- Customer Reviews
Check out our customer Reviews
IF-PX
Single zone Power over Ethernet (PoE) extractor
Line level audio in & out (3.5mm jacks)
Adjustable gain potentiometer
Low-profile for ease of installation
Durable, powder coated extruded aluminum housing
Verifact® A:
Omni-directional, within 30′ diameter circle
Durable, high impact ABS housing
Can be placed up to 1000′ away from the base station
The ASK-4® #370 is a two-way talk and listen single zone audio monitoring system. This system is designed to tap PoE power and provide two-way communication through the IP camera’s video management software. The IF-PX is an audio-oriented, single zone power over Ethernet extractor that extracts power from an ethernet connection to power Louroe’s one-way or two-way audio solutions. The PoE Extractor interfaces with Louroe speakerphones, microphones and other external devices that require a 12 Vdc supply such as system accessories and non PoE cameras. The IF-PX also permits audio and video equipment to be powered by a single run of CAT5, CAT5e or CAT6 cable. The IF-PX enhances the functionality of audio security systems by eliminating the need for a power supply. It also provides seamless installation with 15W PoE (802.3af) standards and easy integration with IP cameras. The AOP-SP-CF is a ceiling mount self-amplified speaker/microphone designed to connect to a DVR or PC soundcard. The ASK-4 #370 is a two-way talk and listen single zone audio monitoring system. This system is designed to tap POE power and provide two-way communication through the IP camera’s video management software. The IF-PX is a POE inline interface that taps some power from the IP camera’s Ethernet powered cable to supply power to the AOP-SP-CF Speaker/Microphones. Model AOP-SP-CF is a ceiling mount self-amplified speaker/microphone designed to connect to an DVR or PC soundcard.
Supports both Mode A and Mode B power options of IEEE802.3af Dimensions:
Speaker microphone- 12.875″ Diag.
PoE Extractor- 6” L x 3.5” W x 2.125” H KIT CONTENTS
The ASK-4® #370 can be used in situations such as:
SPECIFICATIONS (AOP-SP-CF)
- Provides power to external AOP-SP-CF
- Supports both Mode A and Mode B power options Automatic detection of both modes.
- Variable gain audio output
- 3.5mm stereo audio input and output for IP camera
- Power LED indicator
- Overload and short circuit protection
- Omni-directional microphone and 4" speaker
- Controls for adjusting volume of both listen and talkback
- Hands-free operation for talk/listen
Single zone Power over Ethernet (PoE) extractor
Line level audio in & out (3.5mm jacks)
Adjustable gain potentiometer
Low-profile for ease of installation
Durable, powder coated extruded aluminum housing
Verifact® A:
Omni-directional, within 30′ diameter circle
Durable, high impact ABS housing
Can be placed up to 1000′ away from the base station
The ASK-4® #370 is a two-way talk and listen single zone audio monitoring system. This system is designed to tap PoE power and provide two-way communication through the IP camera’s video management software. The IF-PX is an audio-oriented, single zone power over Ethernet extractor that extracts power from an ethernet connection to power Louroe’s one-way or two-way audio solutions. The PoE Extractor interfaces with Louroe speakerphones, microphones and other external devices that require a 12 Vdc supply such as system accessories and non PoE cameras. The IF-PX also permits audio and video equipment to be powered by a single run of CAT5, CAT5e or CAT6 cable. The IF-PX enhances the functionality of audio security systems by eliminating the need for a power supply. It also provides seamless installation with 15W PoE (802.3af) standards and easy integration with IP cameras. The AOP-SP-CF is a ceiling mount self-amplified speaker/microphone designed to connect to a DVR or PC soundcard. The ASK-4 #370 is a two-way talk and listen single zone audio monitoring system. This system is designed to tap POE power and provide two-way communication through the IP camera’s video management software. The IF-PX is a POE inline interface that taps some power from the IP camera’s Ethernet powered cable to supply power to the AOP-SP-CF Speaker/Microphones. Model AOP-SP-CF is a ceiling mount self-amplified speaker/microphone designed to connect to an DVR or PC soundcard.
Supports both Mode A and Mode B power options of IEEE802.3af Dimensions:
Speaker microphone- 12.875″ Diag.
PoE Extractor- 6” L x 3.5” W x 2.125” H KIT CONTENTS
- AOP-SP-CF
- IF-PX Audio Interface power extractor
- Two 6ft 3.5mm Stereo Patch Cables
The ASK-4® #370 can be used in situations such as:
- Convenience Stores
- Fast Food Restaurants
- Customer Service Counters
- Cashier Booths
| Ethernet Connectors | RJ45 CAT 5 Input and Output Jacks |
| Voltage Input | 36V - 57V |
| DC Output | 12Vdc, 800mA |
| Optional Power Supply | 12Vdc, 2A, Ext. Power Supply (Not Supplied) |
| Connectors | RJ-45, DC Jack, Terminal Block for Microphone/Speaker 3.5mm Stereo Jacks for Audio IN/OUT |
| Audio Output/Input | Line level |
| Audio Output Gain | up to +15dB |
| Dimensions | 6”L x 3 1/2”W x 2 1/8”H |
| Weight | 13oz. |
| Type | Electret Condenser |
| Audio output | Line level (0 dB @ 600Ohm) unbalanced |
| Frequency response | 40 Hz - 10 kHz |
| Speaker power output | 1.5W |
| Speaker impedance | 8 Ohm |
| Speaker size | 4” |
| Current Drain | 200mA |
| Supply Voltage | 12Vdc |
| Weight | 2 Lbs 12 oz |
| Shipping Weight of kit | 8 Lbs |
