Louroe ASK-4 #302 Audio Monitoring System

        Louroe ASK-4 #302 Audio Monitoring System

        Louroe Electronics
        SKU: LE-374
        IF-2: Line level audio output (RCA) to DVR, IP Camera, etc. Adjustable gain potentiometer Low-profile for ease of installation Verifact® A: Omni-directional, within 30′ diameter circle Durable, high impact ABS housing Can be placed up to 1000′ away from the base station
          • 33% less
          Market price:$565.62 save $184.95
        • $380.67
        Qty:
        OR
        • Omni-directional microphone can pick up normal sounds 15’ away or within a 30’ diameter circle.
        • Model IF-2 Audio Interface Adapter provides power to the microphones.
        • Contains gain adjust for each microphone output to prevent overdriving of signal into a DVR, soundcard, IP Network Camera, etc. Gain is +10dB max.
        • Audio test switch with LED indicator to verify the presence of audio
        • 12Vdc/110V power supply included
        • Connector cables from audio output of IF-2 to audio input of recording device included
        IF-2:
        Line level audio output (RCA) to DVR, IP Camera, etc.
        Adjustable gain potentiometer
        Low-profile for ease of installation
        Verifact® A:
        Omni-directional, within 30′ diameter circle
        Durable, high impact ABS housing
        Can be placed up to 1000′ away from the base station

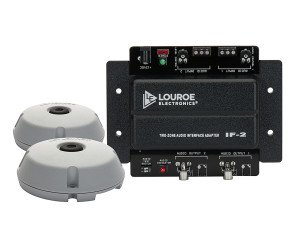

        The ASK-4® #302 is a two zone audio monitoring system designed ideally for connection to IP cameras or DVRs. When ceiling mounted, Verifact® A microphones can pick up sounds within a 30′ diameter circle. The model IF-2 interface adapter connects to the microphones, supplies power to the microphones and drives audio into the input of the recording device. The two Verifact® A microphones are designed for ceiling mount applications.

        ASK-4 #302 is a two- zone audio monitoring system designed for direct connection to a DVR or IP Camera. The IF-2 audio interface adapter is designed to connect up to two Verifact A microphones, supplies power into it and drives the audio signal into the DVR, IP Cameras or Video Servers. Has adjustable gain output for each microphone to prevent overdriving the receiver. An audio test switches indicate the presence of audio at the output of the unit as indicated by the LED. The Verifact A microphones are omni-directional electret condenser type with pre-amp that produces line level audio outputs. The microphones can be up to 1000’ from the IF-2. It can pick up normal sounds approximately 15’ away all directions or 30’ diameter circle.

        Dimensions:
        Microphone- 4″ Diag. x 1.5″ H
        Interface- 6.125” L x 4.625″ W x 1.25” H

        KIT CONTENTS
        • 2 Verifact Model A Microphone
        • Model IF-2 Audio Interface Adapter
        • Model AD-1 12Vdc power supply
        • Patch cables (RCA and 3.5mm) for connection to the audio inputs of DVR’s, IP Network Cameras, Video Encoders

        APPLICATION
        The ASK-4 #302 can be used in situations such as:
        • Convenience Stores
        • Fast Food Restaurants
        • Customer Service Counters
        • Cashier Booths

        SPECIFICATIONS (IF-2 Interface Adapter)
        Input impedance17.5 KΩ @ 1kHz
        Output impedancel600Ω @1kHz
        Power supply12Vdc, 500 mA
        Dimensions6 1/8”L x 4 5/8”W x 1 3/8”H
        Audio output gainup to +10dB
        Weight7 oz

        SPECIFICATIONS (Microphone - Model A)
        TypeElectret Condenser
        OutputLine Level (0 dB 600W @ 1 kHZ)
        Frequency response50 Hz to 15 kHz ± 1 dB
        Current drain10 mA
        Supply voltage12Vdc
        Dimensions4"Dia x 1 ½"H
        Weight3.5 oz
        Shipping Weight2 lbs

        Ask4_302_inst_2_15.pdf

        ask4_302_spec_2_15.pdf

          • SKU
            LE-374
          • Weight
            1.4 lbs
        • Manufacturer
          Louroe Electronics
