Louroe ASK-4 #101-E Audio Monitoring Kit

        Louroe ASK-4 #101-E Audio Monitoring Kit

        Louroe Electronics
        SKU: LE-363
        APR-1: Line level audio output (RCA) to DVR Base station with 3” speaker for monitoring live audio and playback from a DVR Durable, high impact ABS housing 3.5 mm headphone jack for private listening Verifact® E: Omni-directional, within 30′ diameter circle Powder coated, die cast aluminum single-gang electrical box with neoprene gasket Can be placed up to 1000′ away from the base station
          • 33% less
          Market price:$501.82 save $164.10
        • $337.72
        Qty:
        OR
        • Audio output (RCA) to DVR, VCR
        • Omni-directional microphone can pick up normal sounds 15' away if wall mounted, or within a 30' diameter circle if ceiling mounted
        • 3" speaker for monitoring live audio and playback from a DVR or VCR
        • 3.5 mm headphone jack for private listening
        • Microphone may be mounted up to 1000’ from the APR-1Base Station
        APR-1:
        Line level audio output (RCA) to DVR
        Base station with 3” speaker for monitoring live audio and playback from a DVR
        Durable, high impact ABS housing
        3.5 mm headphone jack for private listening
        Verifact® E:
        Omni-directional, within 30′ diameter circle
        Powder coated, die cast aluminum single-gang electrical box with neoprene gasket
        Can be placed up to 1000′ away from the base station

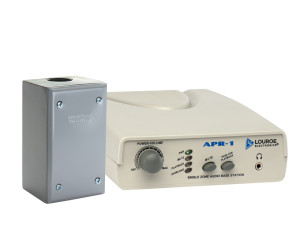

        The ASK-4® #101E is a single zone audio monitoring kit compatible with most recorders. The kit is designed for audio monitoring and for interfacing with a DVR. It is ideal for Live Monitoring Systems. The APR-1 desktop base unit has a speaker for monitoring live audio and playback. It contains a mute switch to mute both live and playback audio. The Verifact® E microphone is designed for outdoor and moist conditions.

        The ASK-4 #101-E is a single zone audio monitoring system. It is designed for audio monitoring and interfacing with DVR’s, VCR’s or other audio devices that accept line level input. The microphone is mounted on a single gang bell box faceplate and is designed for outdoor or moist environment. It provides a 30 foot diameter circle coverage. The desk top audio base station (APR-1) contains a 3" speaker for monitoring live audio and playback from a DVR or VCR. Microphone is pre-amplified and produces line level output.

        Dimensions:
        Microphone- 2.75″ W x 4.5″ H x 2.125″ D
        Base Station- 8.25” L x 5.75” W x 1.375” H

        KIT CONTENTS
        • VERIFACT™ Model E Electret Condenser Microphone for surface mounting to ceiling
        • Model APR-1 Audio Base Station
        • Model AD-1 12Vdc power supply
        • Dual RCA cables for connection to DVR/VCR

        APPLICATION
        The ASK-4 #101E is designed for numerous applications such as:
        • Convenience Stores
        • Fast Food Restaurants
        • Booking Rooms
        • Interrogation Rooms
        • Car dealership sales contract rooms
        • Child Abuse Interviews
        • Sleep Disorder Centers
        • Speech Therapy Labs
        • Cashier Booths
        • Casino use in:
        - softcount rooms
        - detention centers
        - medical treatment rooms
        - cash cages

        SPECIFICATIONS (Microphone - Model E)
        TypeElectret Condenser
        OutputLine Level (0 dBV, 600Ω @ 1 kHz)
        Frequency response50 Hz to 15 kHz ± 1 dB
        Current drain10 mA
        Supply voltage12Vdc
        Dimensions (face plate)2¾”W x 4½”H x 2 1/8”H
        Weight11.5 oz

        SPECIFICATIONS (Base Station - APR-1)
        Monitor output power1W@8W
        Audio output impedance600W @ 1kHz
        Audio input impedance10KW
        Freq. response100 Hz to 10 kHz
        Headphone impedance8 to 600W
        Power supply12 Vdc, 500 mA
        Dimensions8 ¼"L x 5 ¾”W x 1 3/8" H
        Weight1 lb 6 oz
        Shipping Weight of kit3 lbs

        ask-4_101E_inst_2_15.pdf

        ask-4_101-E_spec_2_15.pdf

          • SKU
            LE-363
          • Weight
            2.8 lbs
        • Manufacturer
          Louroe Electronics
