SmartPSS/Add Device P2P

Add a Device via P2P using SmartPSS

Description

This allows you to add cameras or recorders via P2P to SmartPSS

Prerequisites

  • SmartPSS
  • SN Number of device located on bottom of device recorder. Can also be located from the local menu of the recorder under menu -> system info or from iMaxCamPro Web service under Setup -> Network -> P2P
  • P2P must be enabled from the main menu of the recorder under Settings -> Network -> P2P or from iMaxCamPro Web Service under Setup -> Network -> P2P. How To Setup P2P

Video Instructions

Step by Step Instructions

1. Locate the serial number of your NVR or DVR. The serial number can be found at the following locations:

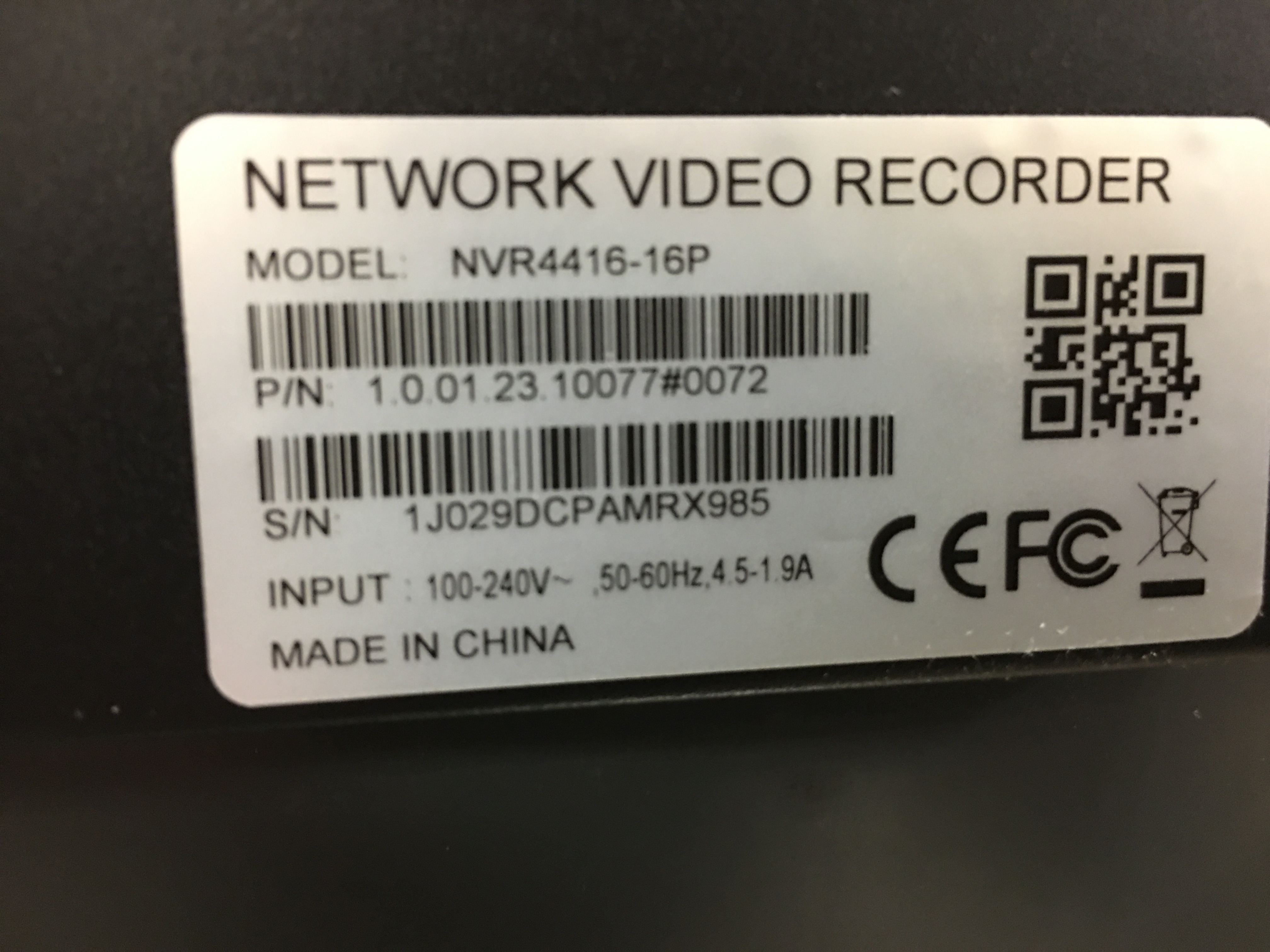

  • On the underside or side of the unit

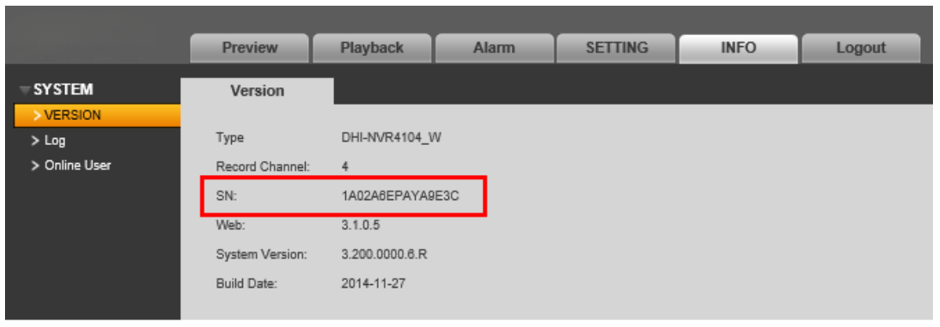

  • In the web interface, under Info->Version

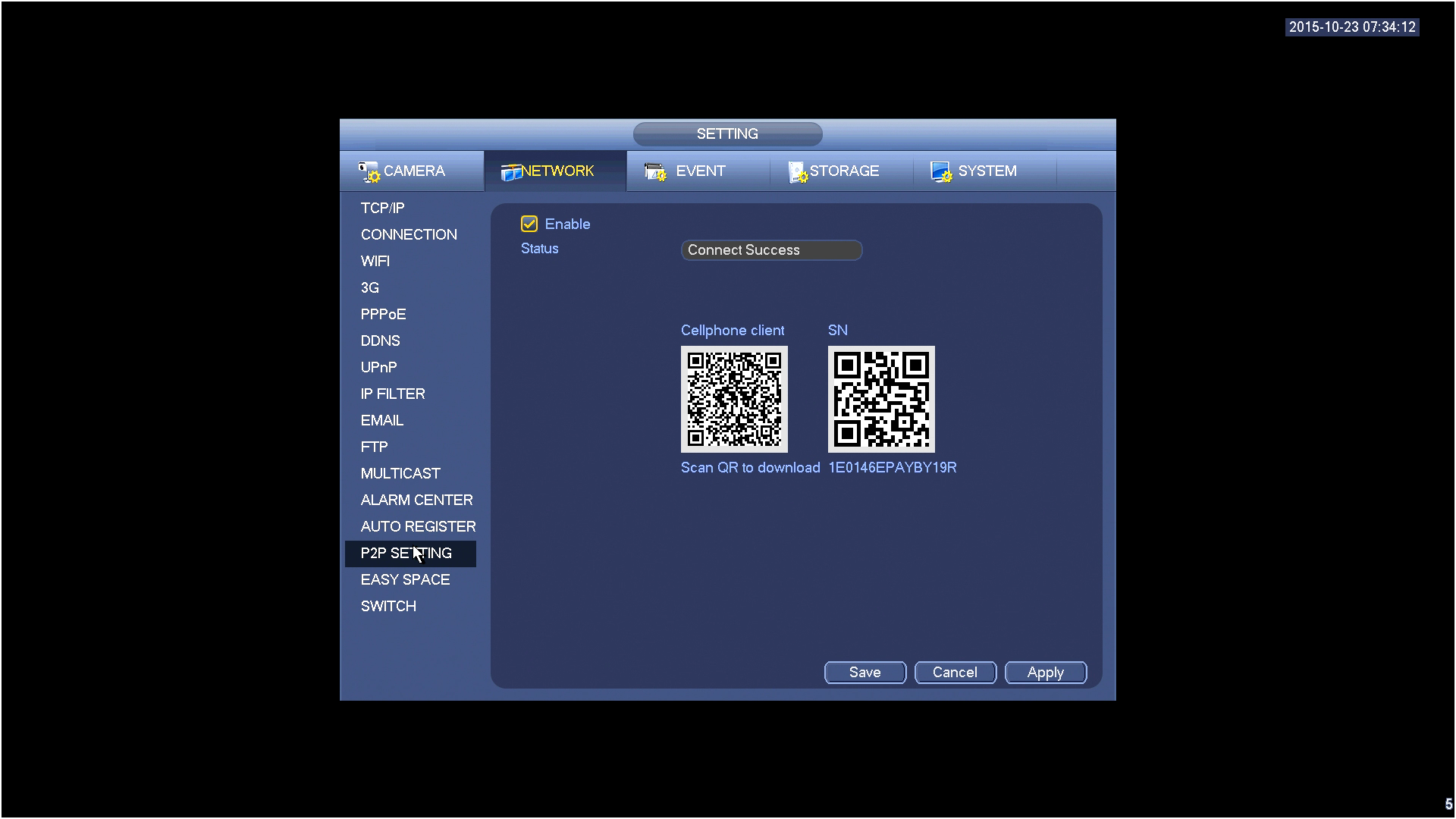

  • On the system interface under Main Menu->Settings->Network->P2P

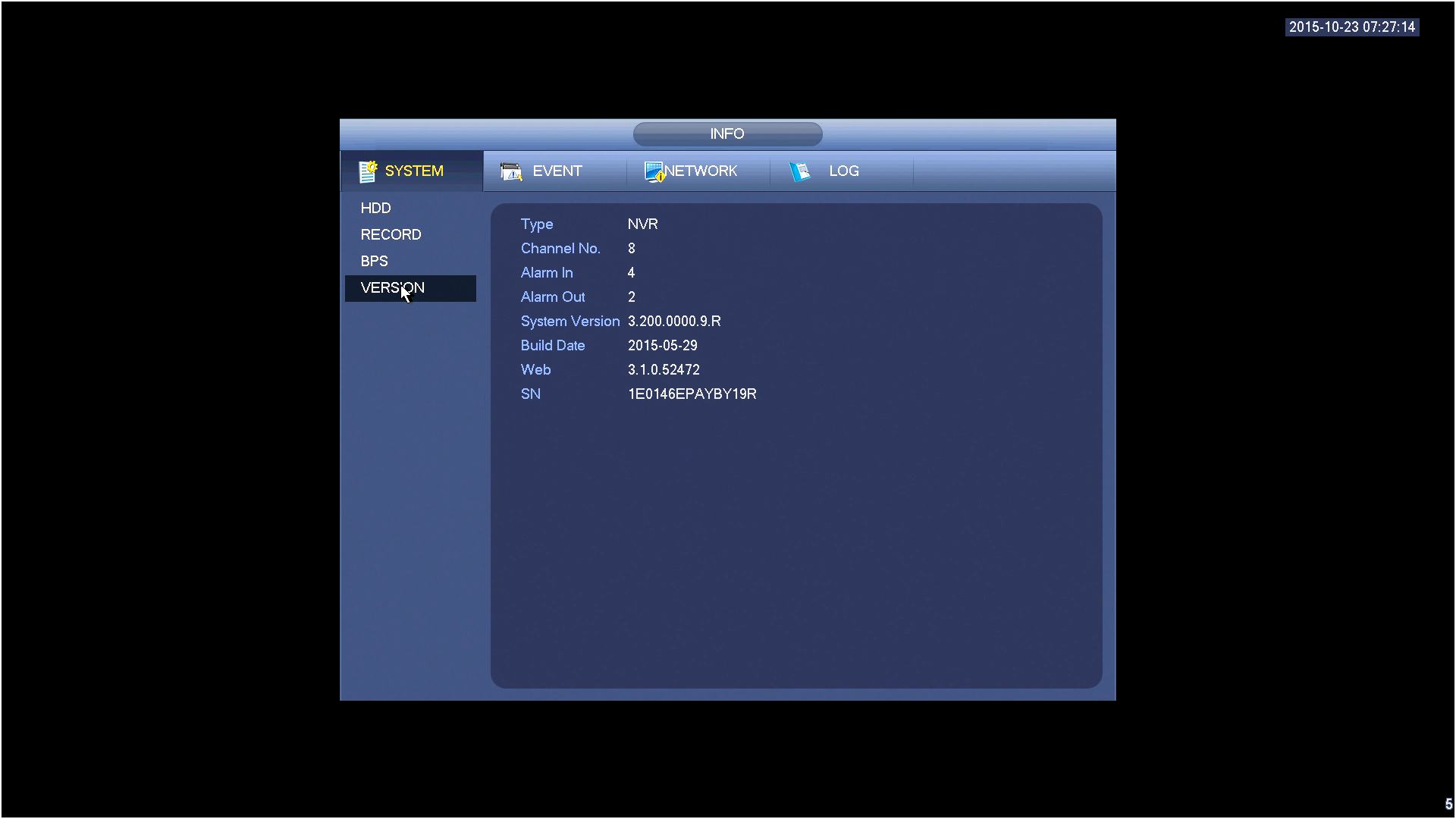

  • On the system interface under Main Menu->Info->System->Version

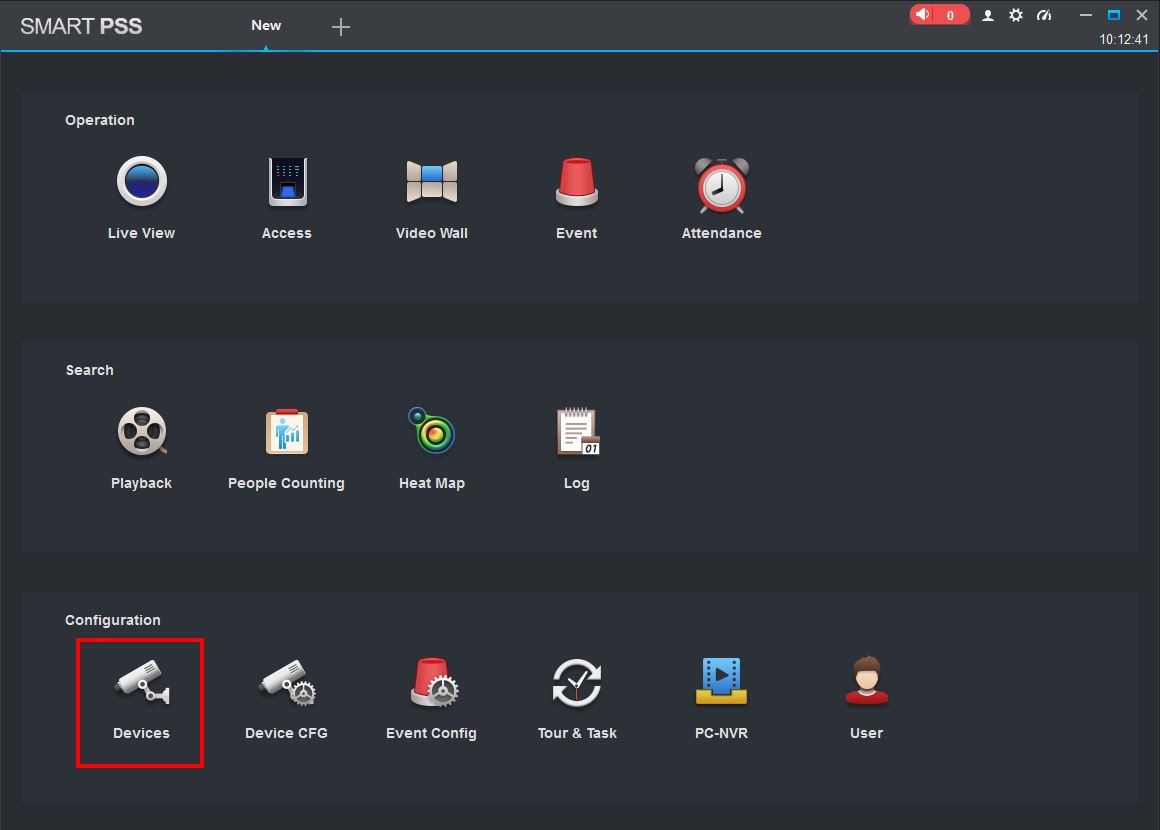

2. Launch SmartPSS. At the main page click Devices

3. Click +Add to add a device

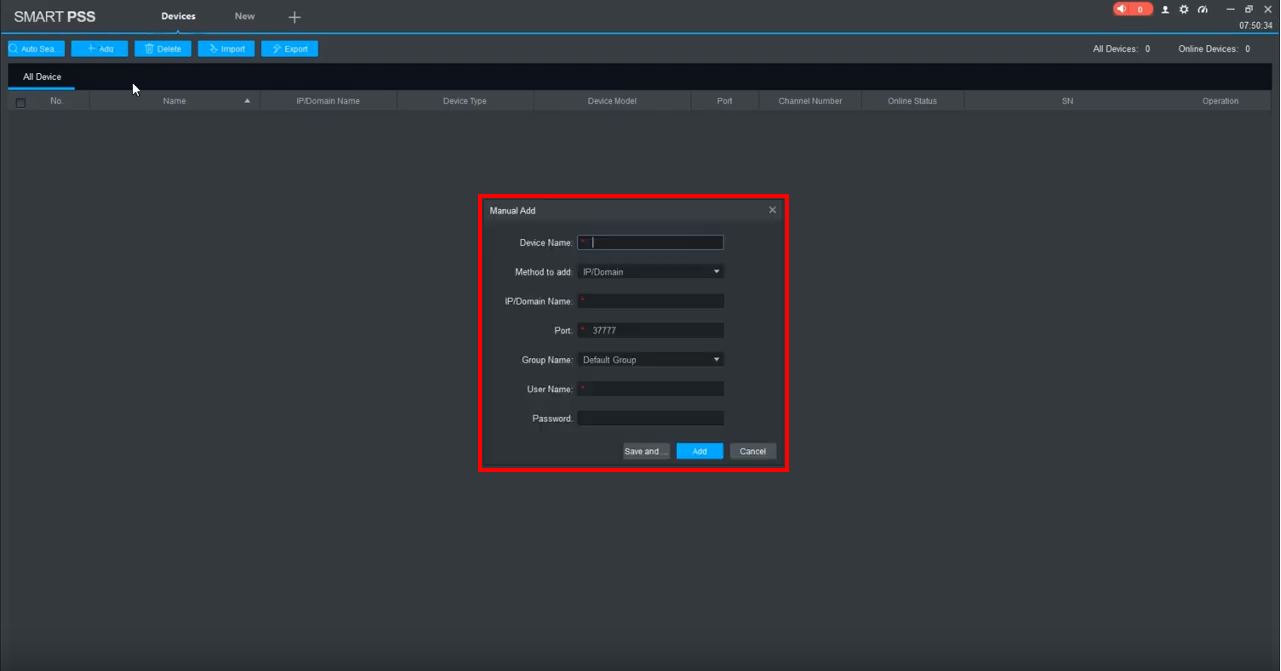

4. The Manual Add window will appear.

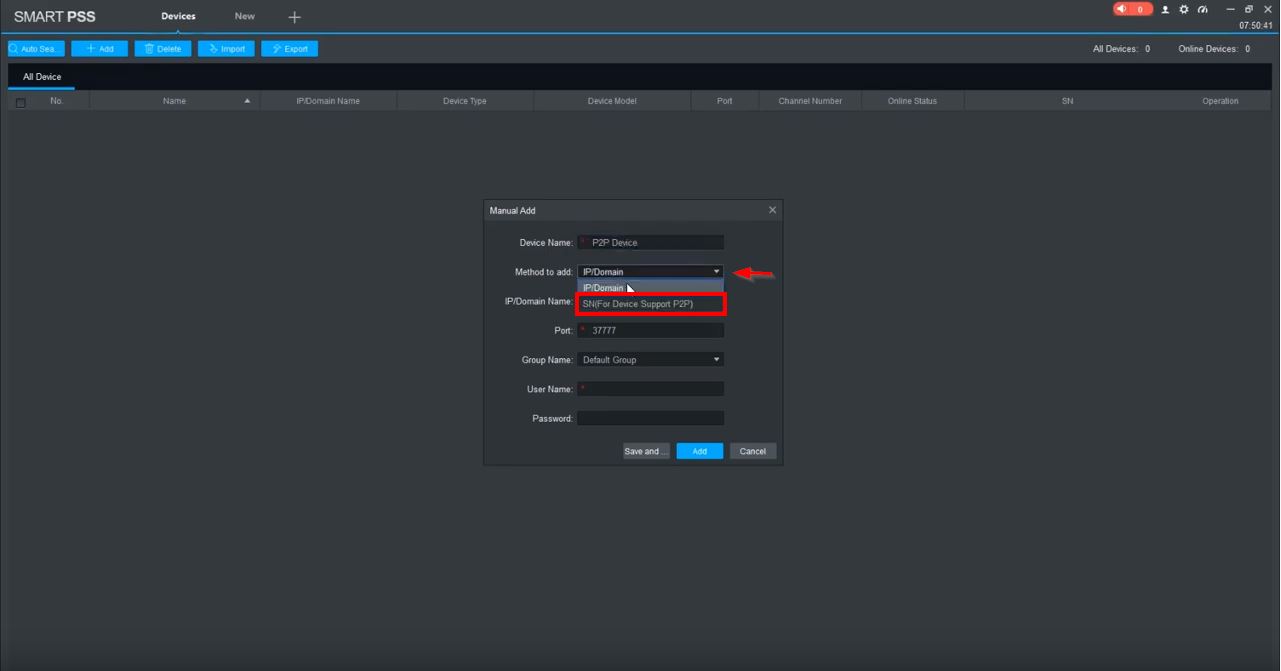

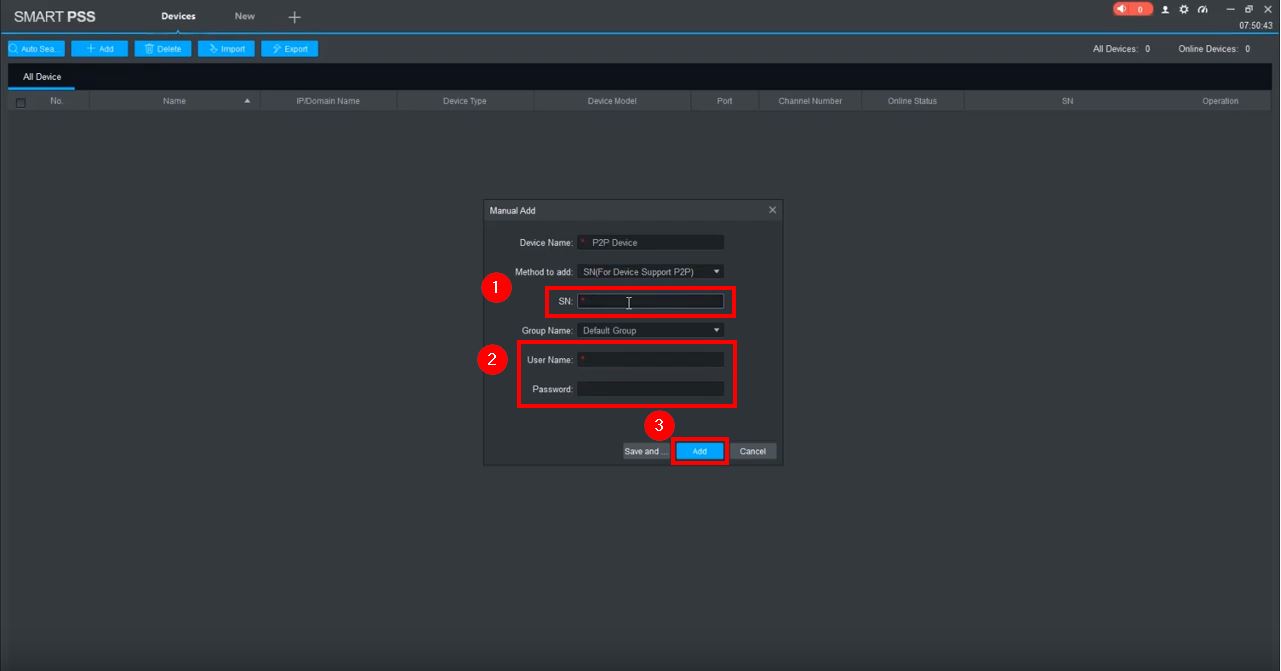

5. Use the drop-down box to change 'Method to add' to 'SN(For Device Support P2P)'

6. Enter the Serial Number for the unit in the field SN.

Enter the username and password for the device then click Add

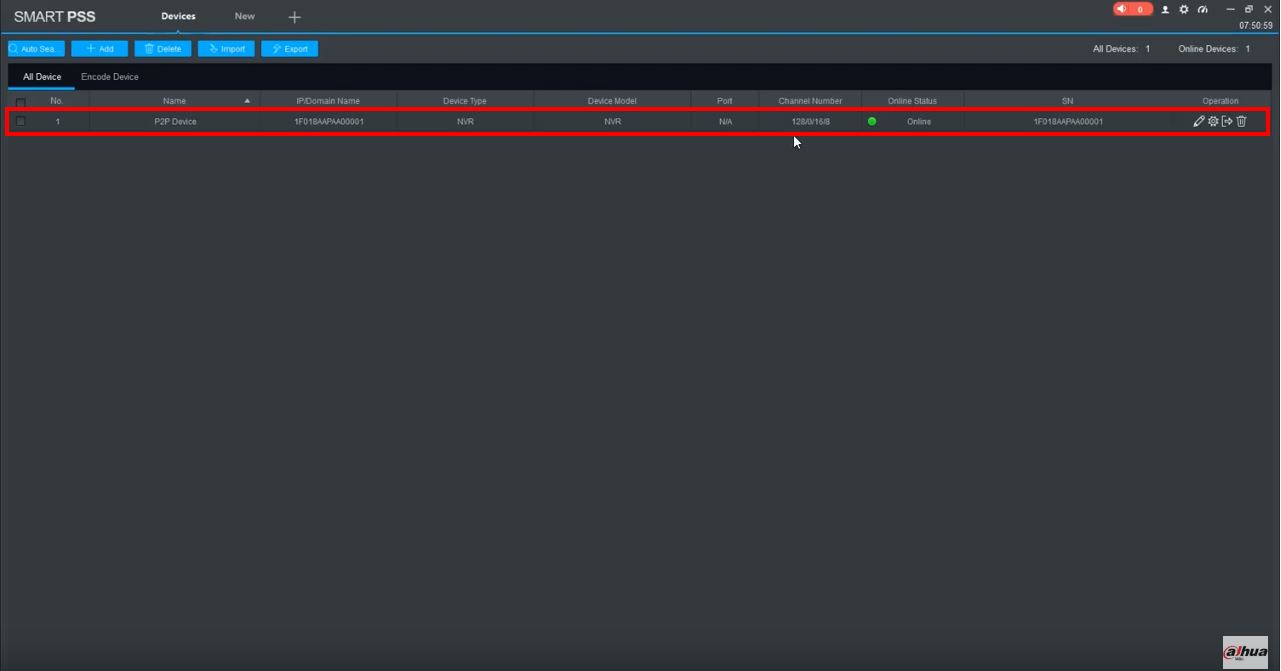

7. The added device will appear in the Device List

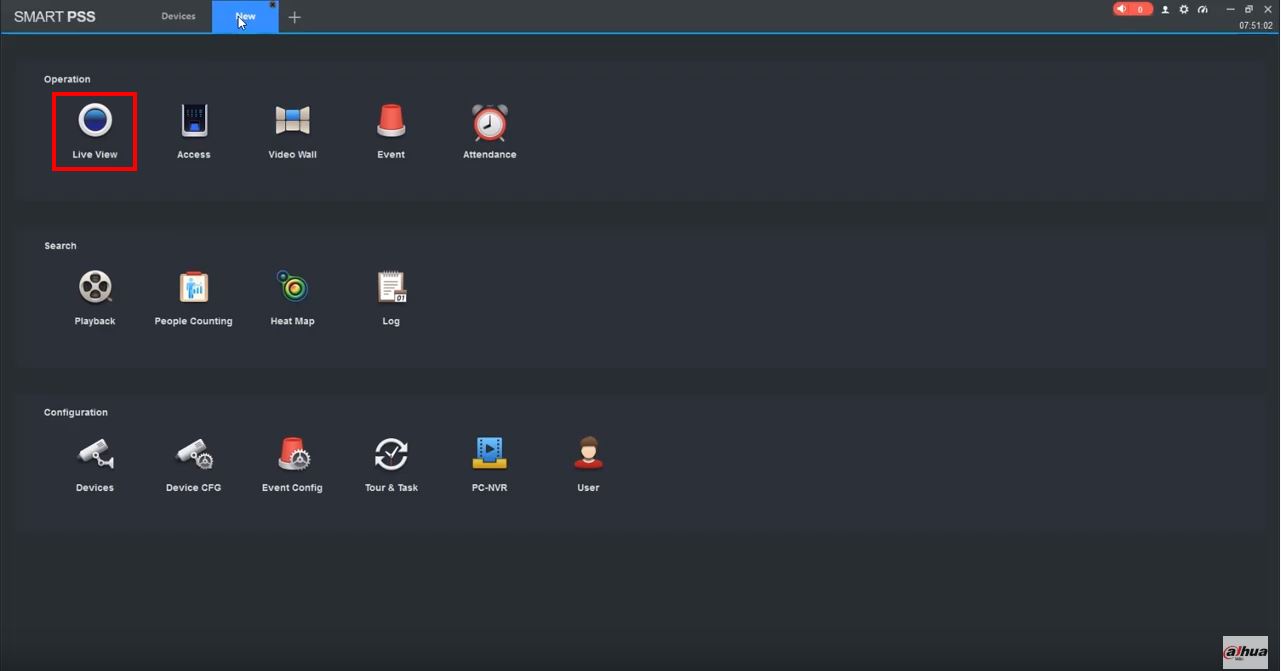

8. From the main page of SmartPSS click Live View

9. The added device will apear in the Device List and can be expanded to view all video channels from the device.
