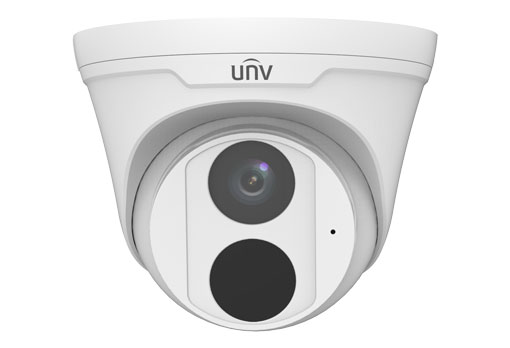

UNV 4MP WDR Fixed Turret, 2.8mm, Built-in Mic SV-TD4-N

Uniview
SKU: UN-IPC3614SR3ADPF28F

Optics

  • Day/night functionality
  • Up to 120dB WDR (Wide Dynamic Range)
  • Smart IR, up to 30m (98ft) IR distance




Compression

  • Ultra 265, H.264, MJPEG
  • Triple streams




Network

  • ONVIF Conformance




Structure

  • Wide temperature range: -30°C ~ 60°C (-22°F ~ 140°F)
  • Wide voltage range of ±25%
  • Micro SD, UP to 256GB
  • Built-in Mic
  • 2KV surge protection designed for network interface
  • IP67
  • 3-Axis





Image Sensor1/3", 4.0 megapixel, progressive scan, CMOS
Image Size4MP (2688*1520)
Electronic ShutterAuto/Manual, 1 ~ 1/100000s
Minimum IlluminationColour:0.01Lux (F2.0, AGC ON) 0Lux with IR on
Focal Length2.8mm
DORI Distance
Lens(mm)Detect(m)Observe(m)Recognize(m)Identify(m)
2.86325.212.66.3
IR DistanceDistance up to 30m (98.43ft)
S/N RatioMore than 50dB
Angle of ViewHorizontal: 107.8° ; Vertical: 57° ; Diagnal: 140.1°
Angle AdjustmentPan: 0° ~ 360° Tilt: 0° ~ 80° Rotate: 0° ~ 360°
DefogDigital Defog
Wide Dynamic Range120dB
OSDNo
Video CompressionUltra 265, H.265, H.264, MJPEG
Day / NightIR-cut filter with auto switch (ICR)
BLC ModeYes
HLCYes
ROIUp to 4 areas
Digital Noise Reduction2D/3D DNR
Motion DetectionUp to 4 areas
Privacy MaskingUp to 4 areas
Statistical AnalysisPeople counting
Audio CompressionG.711
Ethernet1 RJ45 10M/100M Base-TX Ethernet
Network ProtocolIPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, SSL
Network InteroperabilityONVIF (Profile S, Profile G, Profile T), API
StorageANR
Storage CardMicro SD, up to 256GB
Web ViewerPlug-in required live view: IE9+, Chrome 41 and below, Firefox 52 and below Plug-in free live view: Chorme 57.0+, Firefox 58.0+, Edge 16+, Safari 11+
MobileiPhone, Android
CertificationsCE: EN 60950-1
UL: UL60950-1
FCC: FCC Part 15
Power SupplyDC 12V±25%, PoE (IEEE 802.3af)
Power ConsumptionPower consumption: Max 5.5W
Operating Temperature-30°C ~ 60°C (-22°F ~ 140°F), Humidity: ≤95% RH (non-condensing)
Storage Temperature-30°C ~ 60°C (-22°F ~ 140°F), Humidity: ≤95% RH (non-condensing)
Ingress ProtectionIP67
DimensionsΦ118 x 96mm (Φ4.6” x 3.8”)
Weight0.33kg (0.73lb)
    • 70% less
    Market price:$538.00 save $378.00
  • $160.00
Qty:
OR

The UNV 4MP WDR Fixed Turret, 2.8mm, Built-in Mic SV-TD4-N is a high-performance surveillance camera designed for both indoor and outdoor applications. It features a 4-megapixel sensor that delivers crystal-clear and high-resolution images with up to 2688 x 1520 pixels.

This camera is equipped with a 2.8mm fixed lens that provides a wide angle of view, allowing it to capture a broad area of surveillance. The camera also features advanced WDR (Wide Dynamic Range) technology, which provides clear images in highly challenging lighting conditions. Furthermore, the built-in microphone captures audio with the video, providing a complete surveillance solution.

The UNV 4MP WDR Fixed Turret Camera features an infrared (IR) range of up to 30 meters, which allows it to capture clear images even in complete darkness. The camera also supports PoE (Power over Ethernet), which simplifies the installation process by eliminating the need for a separate power source.

This camera is designed to withstand harsh weather conditions, with an IP67 rating, making it resistant to dust, rain, and other environmental factors. The camera is also equipped with a vandal-resistant housing, making it highly resistant to tampering and physical damage.

The UNV 4MP WDR Fixed Turret Camera supports H.265 compression, which significantly reduces the amount of bandwidth and storage space required for video footage. Additionally, it is ONVIF compliant, which ensures compatibility with a wide range of third-party surveillance systems.

In summary, the UNV 4MP WDR Fixed Turret, 2.8mm, Built-in Mic SV-TD4-N is a highly capable surveillance camera that delivers exceptional performance in a variety of lighting conditions. With its advanced WDR technology, infrared range, and vandal-resistant housing, this camera provides a complete surveillance solution that is capable of withstanding harsh weather and physical damage. Its support for PoE, H.265 compression, and ONVIF compliance make it easy to install and integrate with a variety of security systems.

Optics

  • Day/night functionality
  • Up to 120dB WDR (Wide Dynamic Range)
  • Smart IR, up to 30m (98ft) IR distance




Compression

  • Ultra 265, H.264, MJPEG
  • Triple streams




Network

  • ONVIF Conformance




Structure

  • Wide temperature range: -30°C ~ 60°C (-22°F ~ 140°F)
  • Wide voltage range of ±25%
  • Micro SD, UP to 256GB
  • Built-in Mic
  • 2KV surge protection designed for network interface
  • IP67
  • 3-Axis





Image Sensor1/3", 4.0 megapixel, progressive scan, CMOS
Image Size4MP (2688*1520)
Electronic ShutterAuto/Manual, 1 ~ 1/100000s
Minimum IlluminationColour:0.01Lux (F2.0, AGC ON) 0Lux with IR on
Focal Length2.8mm
DORI Distance
Lens(mm)Detect(m)Observe(m)Recognize(m)Identify(m)
2.86325.212.66.3
IR DistanceDistance up to 30m (98.43ft)
S/N RatioMore than 50dB
Angle of ViewHorizontal: 107.8° ; Vertical: 57° ; Diagnal: 140.1°
Angle AdjustmentPan: 0° ~ 360° Tilt: 0° ~ 80° Rotate: 0° ~ 360°
DefogDigital Defog
Wide Dynamic Range120dB
OSDNo
Video CompressionUltra 265, H.265, H.264, MJPEG
Day / NightIR-cut filter with auto switch (ICR)
BLC ModeYes
HLCYes
ROIUp to 4 areas
Digital Noise Reduction2D/3D DNR
Motion DetectionUp to 4 areas
Privacy MaskingUp to 4 areas
Statistical AnalysisPeople counting
Audio CompressionG.711
Ethernet1 RJ45 10M/100M Base-TX Ethernet
Network ProtocolIPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, SSL
Network InteroperabilityONVIF (Profile S, Profile G, Profile T), API
StorageANR
Storage CardMicro SD, up to 256GB
Web ViewerPlug-in required live view: IE9+, Chrome 41 and below, Firefox 52 and below Plug-in free live view: Chorme 57.0+, Firefox 58.0+, Edge 16+, Safari 11+
MobileiPhone, Android
CertificationsCE: EN 60950-1
UL: UL60950-1
FCC: FCC Part 15
Power SupplyDC 12V±25%, PoE (IEEE 802.3af)
Power ConsumptionPower consumption: Max 5.5W
Operating Temperature-30°C ~ 60°C (-22°F ~ 140°F), Humidity: ≤95% RH (non-condensing)
Storage Temperature-30°C ~ 60°C (-22°F ~ 140°F), Humidity: ≤95% RH (non-condensing)
Ingress ProtectionIP67
DimensionsΦ118 x 96mm (Φ4.6” x 3.8”)
Weight0.33kg (0.73lb)
    • SKU
      UN-IPC3614SR3ADPF28F
    • Weight
      0.99 lbs
  • Manufacturer
    Uniview
  • Camera Type
    Turret
  • Camera Signal
    IP
  • Camera Resolution
    4 Megapixel
  • Lens Size
    2.8mm
  • Shipping Lead Time
    Ships Same Day
