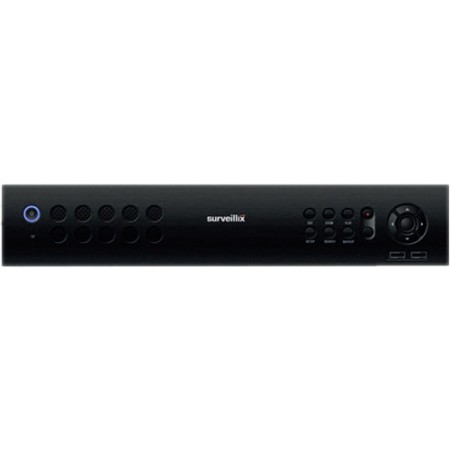

EHV8-240-500 Toshiba Surveillix 8-Channel Embedded Hybrid Video Recorder, 500 GB

Toshiba
SKU: EHV8-240-500
Features :
  • Up to 8 cameras and 60 FPS at full D1 resolution
  • eSATA output for extended storage capabilities
  • Local viewing via HDMI, VGA or BNC outputs (HDMI on EHV16-480D model only)
  • iPhone/iPad/Android/Blackberry mobile app support
  • Maximum of 4 IP camera licenses included
  • H.264 compression for maximum video storage
  • Remote viewing of IP and analog cameras via browser or VMS software
  • 500 GB Storage Capacity
    • 80% less
    Market price:$4295.97 save $3417.53
  • $878.44
Qty:
OR
EHV8-240-500 Toshiba Surveillix 8-Channel Embedded Hybrid Video Recorder, 500 GB

The Surveillix EHV series hybrid recorders enable analog and IP video recording for maximum flexibility in a cost effective solution. With up to 16 analog channels, 4 IP channels, and 480 FPS at full D1 resolution, the EHV series provides efficient and reliable video recording. Compatible with Surveillix SCS video management software and MySurveillix for remote access and multi-site deployments for a complete surveillance solution.

Features :
  • Up to 8 cameras and 60 FPS at full D1 resolution
  • eSATA output for extended storage capabilities
  • Local viewing via HDMI, VGA or BNC outputs (HDMI on EHV16-480D model only)
  • iPhone/iPad/Android/Blackberry mobile app support
  • Maximum of 4 IP camera licenses included
  • H.264 compression for maximum video storage
  • Remote viewing of IP and analog cameras via browser or VMS software
  • 500 GB Storage Capacity

Specifications :
  • Max Number of Channels : 8
  • Analog Video Channels : 8
  • Max IP Video Channels : 4
  • Local Display*1 : 1 VGA, 1 BNC, 1 BNC (Call monitor)
  • Analog frame rate (analog only) : 240fps@CIF
  • Analog frame rate (with IP cameras) : 180fps@CIF
  • Analog Compression Format : H.264
  • IP Recording Throughput : 32Mbps
  • IP Compressions supported : H.264
  • Storage Capacity : 500 GB
  • Number of HDDs : 2 Internal SATA II
  • External Storage : eSATA x 1 (3TB max, 10MB/s speed) *2
  • Export formats : AVI, MPEG
  • Analog Recording Rate:
    • 720 x 480 (analog only) : 60 fps
  • Analog Recording Rate:
    • 720 x 480 (with IP) : 45 fps
  • Analog Recording Rate:
    • 720 x 240 (analog only) : 120 fps
  • Analog Recording Rate:
    • 720 x 240 (with IP) : 90 fps
  • Analog Recording Rate:
    • 352 x 240 (analog only) : 240 fps
  • Analog Recording Rate:
    • 352 x 240 (with IP) : 180 fps
  • Analog Viewing Rate : 240 fps
  • Audio Inputs : up to 4 (4 analog)
  • Audio Outputs : 1 RCA Line Out
  • USB : 2 USB 2.0
  • Alarm IN/OUT : 8/4
  • RS-232 : 9 Pin D-Sub Male
  • RS-485 : Terminal Block
  • Ethernet : 1 Gigabit Ethernet
  • Browser Client : Internet Explorer
  • Smartphone apps : iPhone/Android/Blackberry
  • Tablet apps : iPad/Android
  • VMS Software : Surveillix SCS
  • Operating System : Embedded Linux
  • ONVIF : Version 1.02
  • Approvals : FCC Class B, EN55022, EN61000, EN50130, ANSI C63, IEC 0950
  • Live screen (client software) : 8 (analog ch, local display), 8 (client software)
  • Playback screen (client software) : 8 (client software)
  • User Interface control : Mouse and Wireless IR Remote
  • Dimension (H x W x D) : 3.46 x 16.53" x 16.85"
  • Weight : TBD
  • Temperature : Operating: 41° to 104°F
  • Humidity : 10% ~ 80% R.H
  • Power Input : 12V DC, 5A
  • Power Consumption : 60W

Data Sheet

    • SKU
      EHV8-240-500
    • Weight
      5 lbs
  • Manufacturer
    Toshiba
