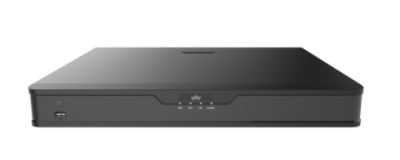

Uniview 12MP NDAA Compliant 8-Channel NVR 2 SATA HDD Bays
SKU: WEC-NVR302-08E2-P8- Shipping info
We deliver worldwide
- Payment methods
- Return Policy
We accept returns
- Customer Reviews
Check out our customer Reviews
- Support Ultra H.265/H.265/H.264 video formats
- 8 channel input
- Plug & Play with 8 independent PoE network interfaces
- Supports mainstream cameras of ONVIF conformance(Profile S, Profile G, Profile T ) and RTSP protocols
- Support 1-ch HDMI, 1-ch VGA. HDMI up to 4K (3840x2160) resolution
- HDMI and VGA independent outputs provided
- Up to 12 Megapixels resolution recording
- 2 SATA HDDs, Up to 10TB for each HDD
- Various fisheye dewarping modes for live view and playback for both web interface and GUI
- ANR technology to enhance the storage reliability when the network is disconnected
- Support cloud upgrade
Model | NVR302-08E2-P8 | NVR302-16E2-P16 |
Video/Audio Input | ||
IP Video Input | 8-ch | 16-ch |
Two-way Audio Input | 1-ch, RCA | |
Network | ||
Incoming Bandwidth | 320Mbps | |
Outgoing Bandwidth | 160Mbps | 320Mbps |
Remote Users | 128 | |
Protocols | TCP/IP, P2P, UPnP, NTP, DHCP, PPPoE, HTTP, HTTPS,DNS,DDNS,SNMP,SMTP,NFS | |
Browser | IE(IE10/11) for Windows Firefox (version 52.0 and above) for Windows Chrome(version 45 and above) for Windows Edge(version 79 and above) for Windows | |
Video/Audio Output | ||
HDMI/VGA Output | VGA: 1920x1080p/60Hz, 1920x1080p/50Hz, 1600x1200/60Hz,1280x1024/60Hz, 1280x720/60Hz, 1024x768/60Hz HDMI: 4K (3840x2160)/30Hz, 1920x1080p/60Hz, 1920x1080p/50Hz, 1280x1024/60Hz, 1280x720/60Hz, 1024x768/60Hz | |
Recording Resolution | 12MP/8MP/6MP/5MP/4MP/3MP/1080p/960p/720p/D1/2CIF/CIF | |
Audio Output | 1-ch, RCA | |
Audio Compression | G.711A, G.711U | |
Synchronous Playback | 8-ch | 16-ch |
Live View Display | 1/4/6/8/9 | 1/4/6/8/9/16 |
Corridor Mode Screen | 3/4/5/7/9 | 3/4/5/7/9/10/12/16 |
Snapshot | ||
FTP/Schedule/Event Snapshot | 16-ch snapshot, up to 1080P resolution | |
Decoding | ||
Decoding Format | Ultra 265, H.265, H.264 | |
Live View/Playback | 12MP/8MP/6MP/5MP/4MP/3MP/1080p/960p/720p/D1/2CIF/CIF | |
Capability | 1 x 12MP@30, 2 x 4K@30, 5 x 4MP@30, 8 x 1080P@30 | 1 x 12MP@30, 2 x 4K@30, 5 x 4MP@30, 10 x 1080P@30, 16 x 720P@30 |
Hard Disk | ||
SATA | 2 SATA interfaces | |
Capacity | up to 10TB for each HDD | |
eSATA | NA | |
Disk Group | Support | |
Smart | ||
VCA Detection by Camera | Intrusion Detection, Cross Line Detection, Enter Area, Leave Area, Defocus Detection, Scene Change Detection, Object Left Behind, Object Removed, Auto Tracking | |
VCA Search | Behavior Search, Vehicle Search | |
People Counting | People Flow Counting, Crowd Density Monitoring | |
Smart Intrusion Prevention (SIP), Vehicle Detection by Camera | Total 8-ch | |
General Alarm | ||
General Alarm | Motion, Tampering, Human Body Detection, Video Loss, Input Alarm, Audio Detection | |
Alert Alarm | IP Conflict, Network Disconnected, Disk Offline , Disk Abnormal, Illegal Access, Hard Disk Space Low, Hard Disk Full, Recording/Snapshot Abnormal | |
External Interface | ||
Network Interface | 1 RJ45 10M/100M/1000M self-adaptive Ethernet Interfaces | |
USB Interface | Front panel: 1 x USB2.0,Rear panel: 1 x USB3.0 | |
RS232 | NA | |
RS485 | 1 | |
Alarm In | 8-ch | |
Alarm Out | 2-ch | |
PoE | ||
Interface | 8 RJ-45 10M/100M self-adaptive Ethernet Interface | 16 RJ-45 10M/100M self-adaptive Ethernet Interface |
Max Power | Max 30W for single port Max 130W in total | Max 30W for single port Max 240W in total |
Supported Standard | IEEE 802.3af/at | |
General | ||
Power Supply |
