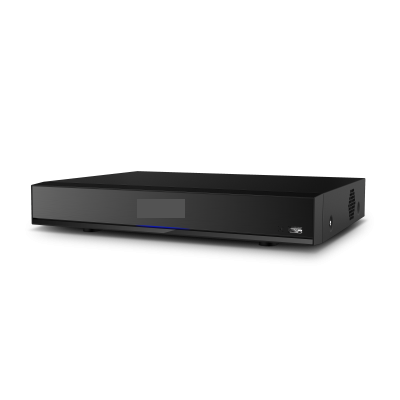

The 8/16 Channel Penta-brid 4K Mini 1U Digital Video Recorder is a powerful and reliable video recording device that supports multiple video technologies, including AHD, TVI, CVI, IP, and analog. This DVR is designed for professional-grade surveillance systems and is capable of recording in ultra-high-definition 4K resolution, providing clear and detailed video footage for enhanced surveillance and monitoring.

This DVR comes in a compact and sleek 1U chassis, making it easy to install and use. It is available in both 8 and 16-channel configurations, giving users the flexibility to choose the right size for their surveillance system.

The DVR features a user-friendly interface that makes it easy to configure and manage the system. It supports multiple recording modes including continuous recording, manual recording, motion detection recording, and alarm recording. The motion detection feature allows users to set up customizable motion detection zones and alerts for specific areas of the property, enhancing the overall security of the property.

The DVR includes a variety of advanced features such as video loss detection and alarm notification via email or mobile devices. These features help to enhance the overall security of the property and make it a powerful and reliable security solution.

This DVR also supports remote access via mobile devices and web browsers, allowing users to view live or recorded video footage from anywhere in the world. It supports multiple language options, making it accessible to a global audience.

Overall, the 8/16 Channel Penta-brid 4K Mini 1U Digital Video Recorder is an excellent choice for anyone seeking a versatile and reliable security solution for their property. Its advanced features, compatibility with a wide range of cameras, and user-friendly interface make it an ideal choice for both residential and commercial applications.

> H.265+/H.265 dual-stream video compression
> Supports HDCVI/AHD/TVI/CVBS/IP video inputs
> Supports 16/32 channels of IPC access, each channel up to 8MP input; Max 64/128Mbps Incoming Bandwidth
> IoT & POS functionalities
> Smart Search and Intelligent Video System

Functions

Smart H.265+

Smart Codec, H.265+ can reduce up to 90% bit rate and storage requirements compared with H.264 without having to invest in new cameras.

HDCVI/AHD/TVI/CVBS Auto-detect

The XVR can auto recognize the signal of front-camera without any setting. It makes operation more friendly and convenient.

8MP Resolution

The XVR supports up to 8MP HD resolution (3840 x 2160) HDCVI camera and IP camera input.

Coaxial Audio/Upgrade/Alarm

The integrated design can reduce wiring troubles which makes it much more cost-effective and convenient for installation.

Long Distance Transmission

The HDCVI system supports long distance transmission over coaxial cable and UTP, max. 700m for 4K/4MP, 800m for 1080P and 1200m for 720P.

IoT Functionality

HDCVI IoT can achieve multi-dimensional surveillance by integrating sensors with monitoring video, which not only can generate the report for analysis but also prevent risk in advance.

POS Functionality

This funcion includes POS ticket information overlay and search which can be widely used in retail programs.

Smart Fan Design

The smart fan can automatically turn on or turn off according to the CPU temperature. This function can effectively reduce the fan noise to provide a better user experience.

Spot Output

It is made for a secondary monitor. This allows the operator to view one special monitor that assigned to selected cameras or video inputs from higher security areas.

Intelligent Video System (IVS)

With built-in intelligent video analytics, the XVR has the ability to detect and analyze moving objects for improved video surveillance. The XVR provides optional standard intelligence at the edge allowing detection of multiple object behaviors such as abandoned or missing objects. IVS also supports Tripwire analytics, allowing the camera to detect when a pre-determined line has been crossed.

Face Detection

It is a typical technology being used in a variety of applications for searching or identification of individuals.

Smart Search

This function helps you get more motion detect video during a short time through drawing a region when playback. It is very useful when an emergency occurs.
