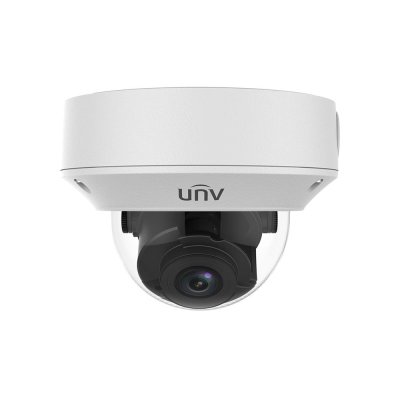

Uniview IPC3235ER3-DUVZ | 5MP 2.8-12mm Lens WDR Starlight Motorized IR Vandal Fixed Dome IP Camera

Uniview
SKU: WEC-IPC3235ER3DUVZ

Features

  • Ultra 265 Compression (H.265 + U-Code)
  • 1/2.7" 5MP progressive scan CMOS
  • Effective Pixels: 2592 x 1944
  • Smart IR, IR anti-reflection window
  • IR Distance is up to 98ft (30M)
  • 0.02 lux @F1.8, AGC ON; 0Lux
  • 5MP(2592 x 1944): Max. 20 fps,
    5MP(2592 x 1944): Max. 25 fps(WDR OFF),
    4MP(2560 x 1440): Max. 30 fps,
    3MP(2048x 1536): Max. 30 fps,
    2MP(1920 x 1080): Max. 30 fps
  • WDR, 3D DNR, microSD,
  • Audio I/O, Alarm I/O
  • 2.8~12mm Motorized Lens
  • DC 12V/PoE
  • IP67, IK10
More Information
Image Sensor1/2.7" 5MP CMOS
Image Size2592 x 1944
Electronic ShutterAuto / Manual, shutter time: 1~1/100000 s
Minimum Illumination

Color: 0.002 Lux (F1.2, AGC ON),
B/W: 0Lux with IR

Focal Length2.8~12mm,AF automatic focusing and motorized zoom lens
DORI Distance
LensDetect(m)Observe(m)Recognize(m)Identify(m)
2.8mm6325.212.66.3
12mm2701085427
IR LEDsSmart IR
IR Distance98ft (30 m)
S/N Ratio>52dB
Angle of ViewH: 83.6°~31.5° / V:58.4°~14.9° / O:108.7~38.7°
Angle Adjustment

Pan: 0°~360°, Tilt: 0°~90°, Rotate:0°~360°

DefogDigital Defog
Wide Dynamic Range120dB
OSDYes
Video CompressionUltra265, H.265, H.264, MJPEG
Video Resolution

5MP, 4MP, 3MP, 2MP, 1.3MP, D1

Video Frame Rate

Main Stream: 5MP(2592 x 1944): Max.20 fps,5MP(2592 x 1944): Max.25fps(WDR OFF), 4MP(2560 x 1440): Max. 30 fps,3MP(2048x 1536): Max. 30 fps, 2MP(1920 x 1080): Max.30 fps;
Sub Stream:2MP(1920 x 1080): Max.30 fps;
Third Stream: D1(720 x 576): Max.30 fps;

9:16 Corridor ModeSupported
Day / NightIR-cut filter with auto switch (ICR)
BLC ModeSupported
HLCSupported
ROIUp to 8 areas
Digital Noise Reduction2D / 3D DNR
Motion DetectionUp to 4 areas
Privacy MaskingUp to 8 areas
Behavior DetectionIntrusion, crossing line, motion detection
Exception DetectionAudio detection
Intelligent IdentificationFace detection, Defocus, Scene Change
Statistical AnalysisPeople counting
General Function

Watermark, IP Address Filtering, Tampering Alarm, Alarm input, Alarm output, Access Policy, ARP Protection, RTSP Authentication, User Authentication

Audio CompressionG.711
Audio InInput: impedance 35kΩ; amplitude 2V [p-p]
Audio OutOutput: impedance 600Ω; amplitude 2V [p-p]
Alarm In1CH
Alarm Out1CH
EthernetRJ45 x 1; 10M/100M Base-TX Auto-adaptive Ethernet
Network ProtocolIPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x, SNMP
Network InteroperabilityONVIF, API
StorageANR
Storage CardMicro SD, up to 256 GB
Web ViewerIE web browser
MobileiPhone, Android
Video OutputBNC x 1, impedance 75 Ω; amplitude 1 V [p-p]
Power SupplyDC12V±25%, PoE(IEEE802.3af)
Power ConsumptionMax.8.7 W
Operating Temperature-40°C ~ +60°C (-40°F ~ 140°F), Humidity ≤ 95% RH(non-condensing)
Ingress ProtectionIP66, IK10
Dimensions5.8” x 4.4” (Φ148 x 111.3 mm)
Weight1.7Lbs (0.75 Kg)
    • 40% less
    Market price:$598.00 save $240.00
  • $358.00
Qty:
OR

The Uniview IPC3235ER3-DUVZ is a high-quality IP camera designed for advanced surveillance applications. With its 5MP resolution and 2.8-12mm motorized zoom lens, this camera captures clear and detailed images, even in low-light conditions.

This camera features WDR (Wide Dynamic Range) technology, which enhances its ability to capture clear images in scenes with both bright and dark areas. This feature ensures that you can monitor your property effectively, regardless of the lighting conditions.

The camera also has Starlight technology, which allows it to capture clear images even in very low-light conditions. With a minimum illumination of just 0.005 lux, this camera can produce color images in near darkness.

Additionally, the camera has motorized IR technology that allows it to automatically adjust its IR intensity based on the distance to the object being monitored. This feature ensures that the camera captures clear and detailed images, even in complete darkness.

The vandal-resistant design of this camera ensures that it is able to withstand tampering and physical damage. The camera is also rated for outdoor use, making it an ideal choice for surveillance applications in harsh environments.

The camera can be easily installed and configured using a web browser or the Uniview EZStation software. It is also compatible with the ONVIF standard, ensuring that it can be integrated with third-party systems.

Overall, the Uniview IPC3235ER3-DUVZ is an excellent choice for those who need a high-quality surveillance camera that delivers exceptional performance in a variety of lighting conditions. Its advanced features, durable design, and ease of use make it an ideal solution for a wide range of applications, from residential properties to commercial buildings.



Features

  • Ultra 265 Compression (H.265 + U-Code)
  • 1/2.7" 5MP progressive scan CMOS
  • Effective Pixels: 2592 x 1944
  • Smart IR, IR anti-reflection window
  • IR Distance is up to 98ft (30M)
  • 0.02 lux @F1.8, AGC ON; 0Lux
  • 5MP(2592 x 1944): Max. 20 fps,
    5MP(2592 x 1944): Max. 25 fps(WDR OFF),
    4MP(2560 x 1440): Max. 30 fps,
    3MP(2048x 1536): Max. 30 fps,
    2MP(1920 x 1080): Max. 30 fps
  • WDR, 3D DNR, microSD,
  • Audio I/O, Alarm I/O
  • 2.8~12mm Motorized Lens
  • DC 12V/PoE
  • IP67, IK10
More Information
Image Sensor1/2.7" 5MP CMOS
Image Size2592 x 1944
Electronic ShutterAuto / Manual, shutter time: 1~1/100000 s
Minimum Illumination

Color: 0.002 Lux (F1.2, AGC ON),
B/W: 0Lux with IR

Focal Length2.8~12mm,AF automatic focusing and motorized zoom lens
DORI Distance
LensDetect(m)Observe(m)Recognize(m)Identify(m)
2.8mm6325.212.66.3
12mm2701085427
IR LEDsSmart IR
IR Distance98ft (30 m)
S/N Ratio>52dB
Angle of ViewH: 83.6°~31.5° / V:58.4°~14.9° / O:108.7~38.7°
Angle Adjustment

Pan: 0°~360°, Tilt: 0°~90°, Rotate:0°~360°

DefogDigital Defog
Wide Dynamic Range120dB
OSDYes
Video CompressionUltra265, H.265, H.264, MJPEG
Video Resolution

5MP, 4MP, 3MP, 2MP, 1.3MP, D1

Video Frame Rate

Main Stream: 5MP(2592 x 1944): Max.20 fps,5MP(2592 x 1944): Max.25fps(WDR OFF), 4MP(2560 x 1440): Max. 30 fps,3MP(2048x 1536): Max. 30 fps, 2MP(1920 x 1080): Max.30 fps;
Sub Stream:2MP(1920 x 1080): Max.30 fps;
Third Stream: D1(720 x 576): Max.30 fps;

9:16 Corridor ModeSupported
Day / NightIR-cut filter with auto switch (ICR)
BLC ModeSupported
HLCSupported
ROIUp to 8 areas
Digital Noise Reduction2D / 3D DNR
Motion DetectionUp to 4 areas
Privacy MaskingUp to 8 areas
Behavior DetectionIntrusion, crossing line, motion detection
Exception DetectionAudio detection
Intelligent IdentificationFace detection, Defocus, Scene Change
Statistical AnalysisPeople counting
General Function

Watermark, IP Address Filtering, Tampering Alarm, Alarm input, Alarm output, Access Policy, ARP Protection, RTSP Authentication, User Authentication

Audio CompressionG.711
Audio InInput: impedance 35kΩ; amplitude 2V [p-p]
Audio OutOutput: impedance 600Ω; amplitude 2V [p-p]
Alarm In1CH
Alarm Out1CH
EthernetRJ45 x 1; 10M/100M Base-TX Auto-adaptive Ethernet
Network ProtocolIPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x, SNMP
Network InteroperabilityONVIF, API
StorageANR
Storage CardMicro SD, up to 256 GB
Web ViewerIE web browser
MobileiPhone, Android
Video OutputBNC x 1, impedance 75 Ω; amplitude 1 V [p-p]
Power SupplyDC12V±25%, PoE(IEEE802.3af)
Power ConsumptionMax.8.7 W
Operating Temperature-40°C ~ +60°C (-40°F ~ 140°F), Humidity ≤ 95% RH(non-condensing)
Ingress ProtectionIP66, IK10
Dimensions5.8” x 4.4” (Φ148 x 111.3 mm)
Weight1.7Lbs (0.75 Kg)
    • SKU
      WEC-IPC3235ER3DUVZ
    • Weight
      0.99 lbs
  • Manufacturer
    Uniview
  • Camera Type
    Dome
  • Camera Signal
    IP
  • Camera Resolution
    5 Megapixel
