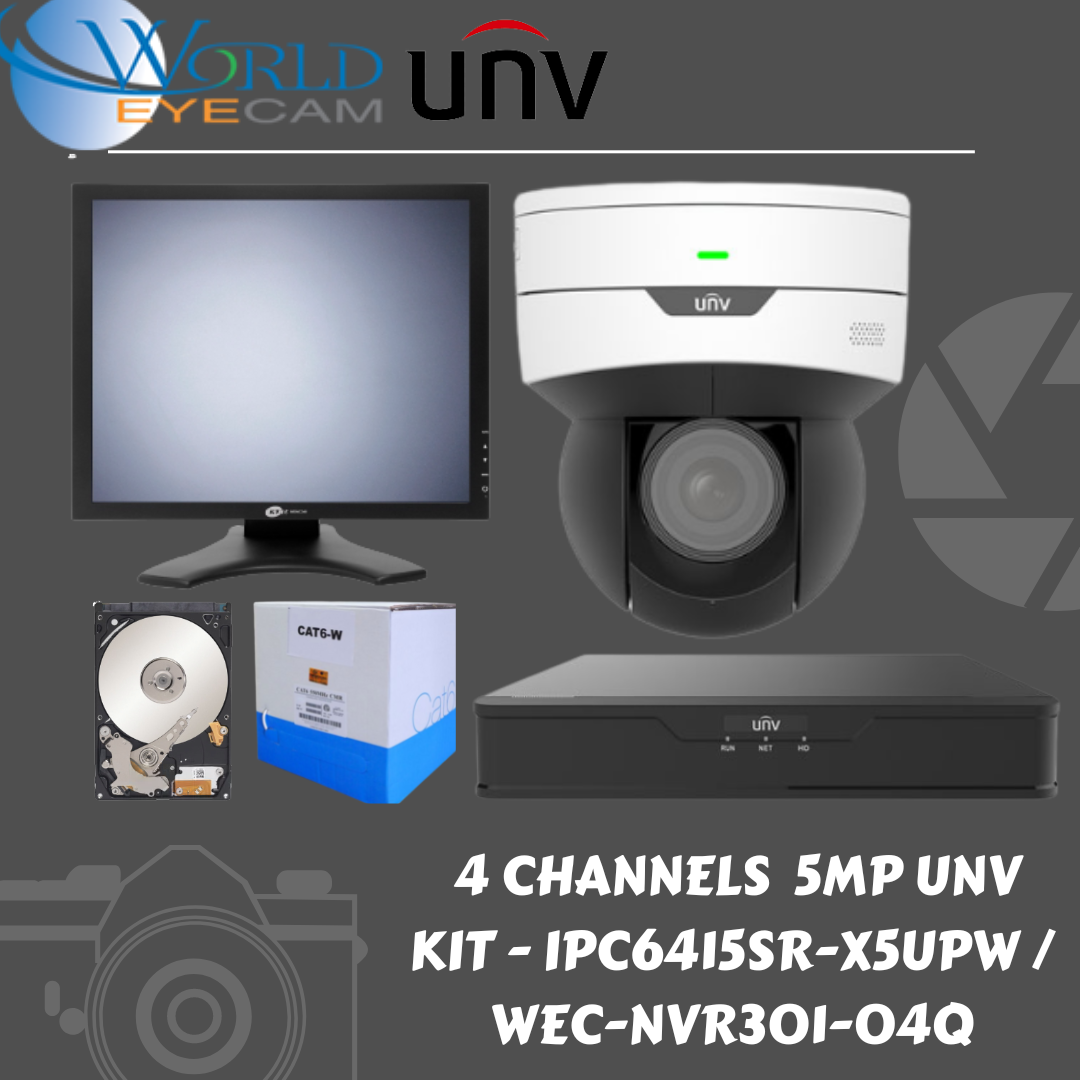

        4 Channels 5MP UNV KIT - IPC6415SR-X5UPW / WEC-NVR301-04Q

        SKU: UNV KIT IPC6415SR-NVR301-04Q
        Uniview
        SKU: UNV KIT IPC6415SR-NVR301-04Q

        5MP WDR Starlight IR Network Indoor MiniPTZ Dome Camera (IPC6415SR-X5UPW)

        Sensor 1/2.7" progressive scan, 5.0 megapixel, CMOS
        Lens 2.7~13.5mm，AF automatic focusing and a motorized zoom lens
        DORI Distance Lens Detect(m) Observe(m) Recognize(m) Identify(m)
        2.7mm 60.8 24.3 12.2 6.1
        13.5mm 303.8 121.5 60.8 30.4
        Angle of View (H) 27.9°~98.3°
        Angle of View (V) 20.6°~70.3°
        Angle of View (O) 30.0°~136.9°
        Shutter Auto/Manual, shutter time: 1 s ~ 1/100000 s
        Minimum Illumination Colour: 0.002 lux (F1.2,AGC ON)
        0 lux with IR
        Iris F1.2
        Day/Night IR-cut filter with auto switch (ICR)
        Digital noise reduction 2D/3D DNR
        S/N >55 dB
        IR Range UP to 30m (98ft)
        WDR 120dB

        Video
        Video Compression Ultra 265,H.265, H.264, MJPEG
        H.264 code profile Baseline profile, Main Profile, High Profile
        Frame Rate Main Stream:5M (2592*1944):Max. 30 fps;
        Sub Stream: 720P (1280×720): Max. 30 fps;
        Third Stream: D1 (720×576): Max. 30 fps
        BLC Supported
        OSD Up to 8 OSDs
        Privacy Mask Up to 24 areas
        ROI Up to 8 areas
        Motion Detection Up to 4 areas
        Smart
        General Function Watermark, IP Address Filtering, Tampering Alarm, Alarm input, Alarm output, Access Policy, ARP Protection, RTSP Authentication, User Authentication

        Audio
        Audio Compression G.711
        Suppression Supported
        Sampling Rate 8 KHZ

        Storage
        Edge Storage Micro SD, up to 256 GB
        Network Storage ANR
        Network Protocols IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP , PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP , 802.1x , SNMP, SSL

        Compatible Integration
        ONVIF(Profile S, Profile G), API
        Pan & Tilt
        Pan Range 350°
        Pan Speed 0.1°/s ~ 60°/s
        Preset speed: 60°/s
        Tilt Range 0° ~ 90°
        Tilt Speed 0.1° ~ 50°/s
        Preset speed: 50°/s
        Number of Presets 1024
        Home Position Supported

        Interface
        Alarm I/O 1/1
        Serial Port 1 RS485
        Network 1 RJ45 10M/100M Base-TX Ethernet
        Built-in Mic Supported
        Built-in Speaker Supported
        WIFI Supported

        General
        Power DC 12V±25%, PoE (IEEE802.3 at)
        Power consumption: Max 16W
        Dimensions (Ø x H) Φ129mm×143mm(Φ5.07” x5.63”)
        Weight 0.75kg(1.65lb)
        Working Environment –10°C ~ +50°C (14°F ~ 122°F), Humidity:≤95% RH(non-condensing)
        Reset Button Supported
          • 32% less
          Market price:$3542.80 save $1145.75
        • $2397.05

        OR

        The 4 Channels 5MP UNV KIT, which includes the IPC6415SR-X5UPW cameras and the WEC-NVR301-04Q Network Video Recorder, is a high-performance surveillance solution designed for small to medium-sized businesses or organizations. This kit provides reliable and comprehensive surveillance capabilities, allowing you to monitor your premises with ease and convenience.

        The IPC6415SR-X5UPW cameras are equipped with 5MP high-resolution sensors, providing crystal-clear images and video footage. They are also equipped with infrared capability, ensuring that you can still capture clear footage even in low-light conditions. The cameras have a sleek and durable design that is weather-resistant, making them suitable for use in outdoor areas.

        The WEC-NVR301-04Q Network Video Recorder provides a reliable platform for managing and viewing recorded footage. The NVR can support up to four cameras, making it ideal for small to medium-sized businesses or organizations. It also supports various recording modes, including continuous, scheduled, and motion-detection recording.

        The kit also includes all the necessary cables and mounting hardware, making installation and setup quick and easy. The cameras can be mounted on walls or ceilings, providing flexibility in positioning and ensuring that you can capture the footage you need.

        Overall, the 4 Channels 5MP UNV KIT is a reliable and comprehensive security solution that can help businesses and other organizations protect their assets and maintain a secure environment. With its high-resolution cameras, infrared capability, and reliable Network Video Recorder, this kit provides businesses with a versatile and powerful surveillance solution that is suitable for a wide range of applications.



        5MP WDR Starlight IR Network Indoor MiniPTZ Dome Camera (IPC6415SR-X5UPW)

        Sensor 1/2.7" progressive scan, 5.0 megapixel, CMOS
        Lens 2.7~13.5mm，AF automatic focusing and a motorized zoom lens
        DORI Distance Lens Detect(m) Observe(m) Recognize(m) Identify(m)
        2.7mm 60.8 24.3 12.2 6.1
        13.5mm 303.8 121.5 60.8 30.4
        Angle of View (H) 27.9°~98.3°
        Angle of View (V) 20.6°~70.3°
        Angle of View (O) 30.0°~136.9°
        Shutter Auto/Manual, shutter time: 1 s ~ 1/100000 s
        Minimum Illumination Colour: 0.002 lux (F1.2,AGC ON)
        0 lux with IR
        Iris F1.2
        Day/Night IR-cut filter with auto switch (ICR)
        Digital noise reduction 2D/3D DNR
        S/N >55 dB
        IR Range UP to 30m (98ft)
        WDR 120dB

        Video
        Video Compression Ultra 265,H.265, H.264, MJPEG
        H.264 code profile Baseline profile, Main Profile, High Profile
        Frame Rate Main Stream:5M (2592*1944):Max. 30 fps;
        Sub Stream: 720P (1280×720): Max. 30 fps;
        Third Stream: D1 (720×576): Max. 30 fps
        BLC Supported
        OSD Up to 8 OSDs
        Privacy Mask Up to 24 areas
        ROI Up to 8 areas
        Motion Detection Up to 4 areas
        Smart
        General Function Watermark, IP Address Filtering, Tampering Alarm, Alarm input, Alarm output, Access Policy, ARP Protection, RTSP Authentication, User Authentication

        Audio
        Audio Compression G.711
        Suppression Supported
        Sampling Rate 8 KHZ

        Storage
        Edge Storage Micro SD, up to 256 GB
        Network Storage ANR
        Network Protocols IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP , PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP , 802.1x , SNMP, SSL

        Compatible Integration
        ONVIF(Profile S, Profile G), API
        Pan & Tilt
        Pan Range 350°
        Pan Speed 0.1°/s ~ 60°/s
        Preset speed: 60°/s
        Tilt Range 0° ~ 90°
        Tilt Speed 0.1° ~ 50°/s
        Preset speed: 50°/s
        Number of Presets 1024
        Home Position Supported

        Interface
        Alarm I/O 1/1
        Serial Port 1 RS485
        Network 1 RJ45 10M/100M Base-TX Ethernet
        Built-in Mic Supported
        Built-in Speaker Supported
        WIFI Supported

        General
        Power DC 12V±25%, PoE (IEEE802.3 at)
        Power consumption: Max 16W
        Dimensions (Ø x H) Φ129mm×143mm(Φ5.07” x5.63”)
        Weight 0.75kg(1.65lb)
        Working Environment –10°C ~ +50°C (14°F ~ 122°F), Humidity:≤95% RH(non-condensing)
        Reset Button Supported

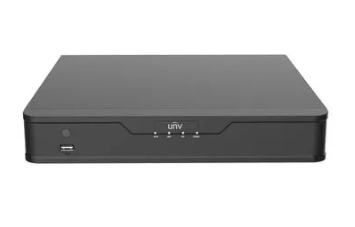

        UNV 1 Hard Disks 4-Channel 5MP TVI CVI AHD H.265 Hybrid Network Video Recorder


        ModelNVR301-04Q
        Video/Audio Input
        Analog Video Input4-ch, BNC
        IP Video Input2-ch(only IP up to 6ch),each channel up to 4K
        Supported Analog Camera TypesSupport AHD input: 8MP@15fps (channel1)
        5MP@20fps
        4MP@30fps
        3MP@30fps (channel1)
        1080P@30fps
        720P@60fps
        Support TVI input: 8MP@15fps(channel1)
        5MP@20fps
        4MP@30fps
        3MP@20fps (channel1)
        1080P@30fps
        720P@60fps
        Support CVI input: 8MP@15fps(channel1)
        5MP@20fps
        4MP@30fps
        1080P@30fps
        720P@30fps
        Support CVBS input
        Audio Input1-ch, RCA
        Two-way Audio1-ch, RCA
        Channel Associated Audio1-ch,RCA
        Network
        Incoming Bandwidth40Mbps
        Outgoing Bandwidth60Mbps
        Remote Users128
        ProtocolsTCP/IP, P2P, UPnP, NTP, DHCP, PPPoE
        Video/Audio Output
        CVBS Output1-ch, BNC
        VGA Output1920x1080p/60Hz, 1920x1080p/50Hz, 1600×1200/60Hz, 1280×1024/60Hz, 1280×720/60Hz, 1024×768/60Hz
        HDMI Output1920x1080p/60Hz, 1920x1080p/50Hz, 1600×1200/60Hz, 1280×1024/60Hz, 1280×720/60Hz,
        1024×768/60Hz
        Audio Output1-ch, RCA
        Synchronous Playback4-ch
        Encoding
        Recording Resolution8MP Lite/5MP Lite/4MP Lite /3MP/1080P/960P/720P/960H/4CIF/CIF
        Recording Frame RateMain stream: 8MP Lite@8fps(channel1）
        5MPLite@12fps
        4MP Lite@15fps
        3MP@15fps(channel1)
        2MP@15fps
        720P@30fps
        Sub stream: D1@30fps(Max)
        Hard Disk
        SATA1 SATA interfaces
        CapacityUp to 10TB for each HDD
        External Interface
        Network Interface1RJ45 10M/100M self-adaptive Ethernet Interface
        USB InterfaceRear panel：2 x USB2.0
        Serial Interface1 x RS485
        General
        Power Supply12V DC
        Power Consumption: ≤ 8 W( without HDD )
        Working Environment-10°C ~ + 55°C ( +14°F ~ +131°F ), Humidity ≤ 90% RH(non-condensing)
        Dimensions(W×D×H)260mm ×240mm× 46mm (10.2″ × 9.4″×1.8″)
        Weight ( without HDD )≤1.1 Kg ( 4.19lb )


        17" LED Monitor

        Camera packaging contents:



        • Suitable for every Video Surveillance and Security application: displays HDMI digital plus VGA and BNC analog inputs (with looping BNC analog output)
        • Superlative image quality with 16.7 million color capability
        • Resolution:1280 x 1024
        • Customizable video settings in flexible On Screen Display (OSD) Menu with 7 language options
        • Bright LED illuminated panel with 170° H viewing angle
        • LED panel conserves energy and extends service life
        • Included desk stand is easily removable for 100mm VESA mounting



        ModelKPM-17
        Screen Size17”
        Resolution1280 x 1024 @60Hz
        Brightness250cd/m2
        Contrast Ratio1000:01:00
        Aspect Ratio5:04
        Viewing Angle (H/V)170° / 160°
        Pixel Pitch0.264 x 0.264mm
        Display Colors16.7 Million
        Response Time<5ms
        Video SystemNTSC / PAL
        Scanning Frequency(H) 31~80 KHz/ (V) 56 ~ 75 Hz
        HDMI-In1
        VGA-In1
        BNC-In/Out1/1
        OSD LanguageEnglish, Spanish, French, German, Italian, Portugese, Netherlands
        Dimensions (W x H x D)15.12” x 14.1” x 7.8” (384 x 358 x 195mm)
        Net Weight8.8lbs (4KG)
        Tilt Stand / Tilt RangeFr: 5 / Rear: 15
        ColorBlack
        VESA Mount100mm x 100mm (M4 x 10mm Screw)
        MTBF (Approx)30,000 Hours
        Power Consumption<20W
        Power Source100~240VAC
        Operating Temperature32° ~104° F / 0° ~ 40° C



        KPM-17.pdf



          • SKU
            UNV KIT IPC6415SR-NVR301-04Q
          • Weight
            5 lbs
        • Manufacturer
          Uniview
        • Camera Type
          PTZ
        • Camera Signal
          IP
        • Camera Resolution
          5 Megapixel
        • Lens Size
          2.7~13.5mm
        • Keywords
          UNV KIT
        • Number of Channels
          4 Channels
        • Recorder Type
          NVR
        • HDD Storage
          1TB SATA HDD, 2TB SATA HDD, 3TB SATA HDD, 4TB SATA HDD, 6TB SATA HDD, 8TB SATA HDD, 10TB SATA HDD, I have my own SATA HDD
        • IP Camera 1
          UN-NVR30432EPB, UN-UN-IPC2122SR3PF40B, UN-IPC2124SR3DPF36, UN-IPC2124SR3DPF36, UN-IPC2124SR3DPF36, IPC562E-DUG, I have my own IP Camera
        • IP Camera 2
          UN-IPC2222EBR5HDUPF4, UN-IPC2122SR3PF40B, UN-IPC2222ER5DUPF40C, IPC322SR3-DVSPF28-B, IPC322ER3-DUVPF28B, IPC562E-DUG, I have my own IP Camera
        • IP Camera 3
          UN-IPC2222EBR5HDUPF4, UN-IPC2122SR3PF40B, UN-IPC2222ER5DUPF40C, IPC322SR3-DVSPF28-B, IPC322ER3-DUVPF28B, IPC562E-DUG, I have my own IP Camera
        • IP Camera 4
          UN-IPC2222EBR5HDUPF4, UN-IPC2122SR3PF40B, UN-IPC2222ER5DUPF40C, IPC322SR3-DVSPF28-B, IPC322ER3-DUVPF28B, IPC562E-DUG, I have my own IP Camera
        • Network cables and others
          4 pcs. 100 ft CAT6 Pre-made cable, 4 pcs. 50 ft CAT6 Pre-made cable, 4 pcs. 150 ft CAT6 Pre-made cable, 4 pcs. 200 ft CAT6 Pre-made cable, 4 pcs. 300 ft CAT6 Pre-made cable, 1000 ft. CAT5 spool cable + 1 pack 100 pcs. RJ45 Modular Plugs + Crimping Tool, 1000 ft. CAT6 spool black cable, Non UL + 1 pack 100 pcs. RJ45 Modular Plugs + Crimping Tool, I have my own network cables
