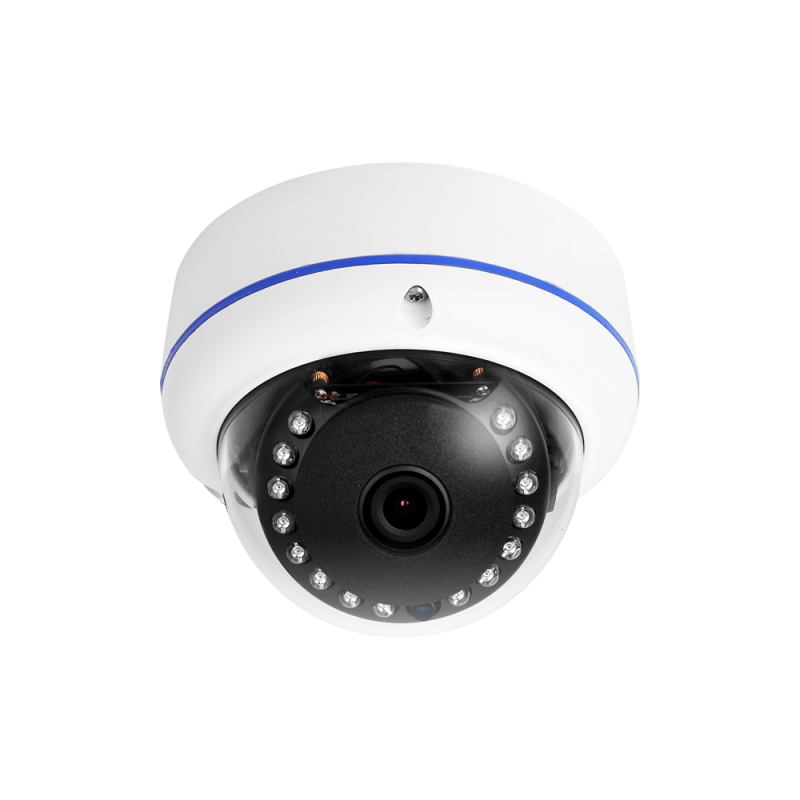

2MP 4-In-1 HD Mini Vandal Camera


Details

Weight 0.73 lbs
SKU WECHDA-VP2M15
Manufacturer Worldeyecam
List Price: $100.00
Sale Price: $50.00 (Save 50%)

Description


Features

  • 4-In-1 (AHD, HD-TVI, HD-CVI, 960H)
  • 1/2.9" 2.4MP HD Aptina Sensor
  • 3.6mm Fixed Lens
  • 15 IR, 0Lux
  • IR Distance: 33ft ~ 39ft (10~ 12m)
  • 12V DC, IP66, IK10
  • OSD Menu, Can Switch to Analog Mode
  • CoC Compatible (Control Over Coax)
More Information
Image Sensor 1/2.9" CMOS Sensor
Image Size 1920 ×1080
Electronic Shutter PAL:1/50s~1/100,000s, NTSC:1/60s~1/100,000s
Minimum Illumination 0.01Lux @ F1.2, 0Lux (IR on)
Focal Length 3.6mm Fixed Lens
Angle of View Horizontal field view: 93°
S/N Ratio ≥45dB(Max 70 dB)
IR LEDs 12 IR
IR Distance 49ft (15m)
Wide Dynamic Range DWDR
Video Compression H.264
Video Compatibility HD-TVI / AHD / CVI/ 960H
Video Resolution 5MP/ 4MP
Video Frame Rate

NTSC:  2MP@30fps;
PAL: 2MP@25fps

Video Bitrate N/A
Day / Night Auto / Color / BW / EXT
Video Encode CBR
AGC Yes
BLC Mode Yes
White Balance Auto adaptive (Range 2200~10000K)
Digital Noise Reduction 2D DNR
Quality Not adjustable under CBR
Web Viewer IE Broswer
Mobile iPhone, Android
Video Output BNC x 1
RS485 N/A
Power Supply DC 12V ± 10%
Power Consumption 400mA
Operating Temperature -22℉ ~ 140℉ (- 30℃~+60℃)
Ingress Protection IP66
Dimensions 4.13" x 3.15:" (105mm*80mm)
Weight 0.73Lbs (0.33KG)
