16 Output Power Dist Module; 16 Fuse Protected Outputs; AC Or DC Dual Inputs
SKU: PDS16
SKU: PDS16PDS16

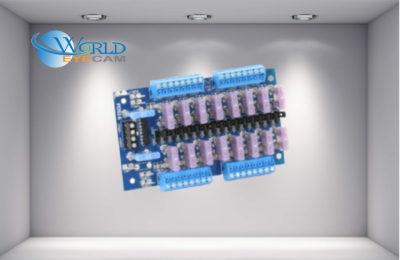

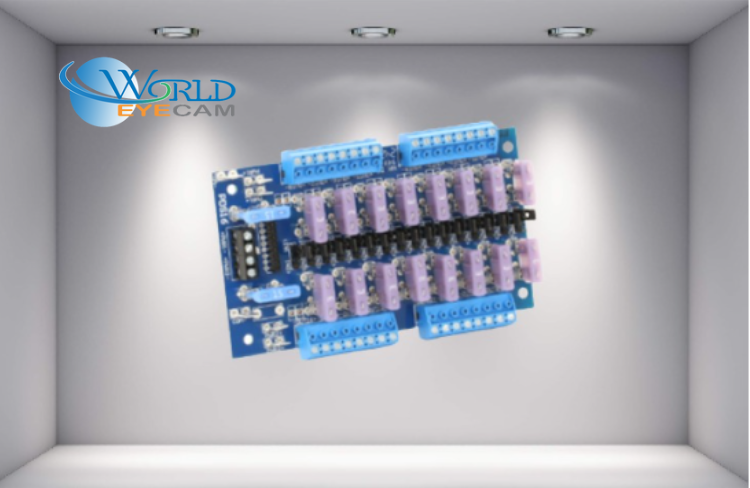

Dual Input Power Distribution Module, 16 Fused Outputs
Altronix PDS16 dual input power distribution module is designed to steer the power from either two (2) low voltage AC or DC power sources. The two Inputs can be either, both DC (e.g. 12VDC and 24VDC) or both AC (e.g. 16VAC and 24VAC). That power is distributed over a total of sixteen (16) fuse protected outputs. The spade connectors allow you to daisy chain multiple PDS16 modules. This feature allows you to distribute the power over more outputs for larger systems.
- Specifications
- Dimensions & Weight
- Documentation
Input
- Voltage Range: 5VDC to 24VDC, up to 10A each or 16VAC to 28VAC, 60Hz, up to 10A each, 20A total input.
Main Fuse Rating
- 15/32A.
Outputs
- Fuse protected outputs rated @ 3A per output, non power-limited. Total output 20A max.
- Do not exceed the individual power supply ratings.
- Any of the sixteen (16) fuse/PTC protected power outputs are selectable to follow power Input 1 or Input 2.
- Individual outputs may be set to OFF position for servicing.
- Fuses are rated 3A/32V each.
- Total output current is determined by the power supply(ies), not to exceed a maximum of 10A for each input.
LED Indicators
- DC Output: Individual voltage LEDs indicate 12VDC (Green) or 24VDC (Red and Green).
Features
- Multiple units may be daisy-chained to accommodate larger systems.
Temperature
- Operating: 0° C to 49° C (32° F to 120° F).
- Storage: - 20° C to 70° C ( - 4° F to 158° F).
- Relative Humidity 85% +/- 5%.
