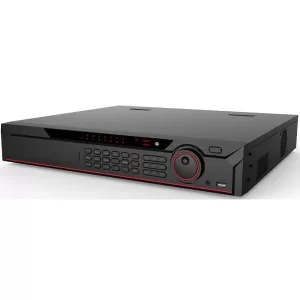

iMaxCamPro WECICP-NVR15U16CH006 | 16 Channel 1.5U 16PoE 4K&H.265 Lite Network Video Recorder
SKU: WECICP-NVR15U16CH00616 Channel 1.5U 16 PoE 4K & H.265 Lite Network Video Recorder, 200Mbps, HDMI/VGA, 16CH Alarm, 4 SATA, IVS, UL Listed
- Shipping info
We deliver worldwide
- Payment methods
- Return Policy
We accept returns
- Customer Reviews
Check out our customer Reviews
PRODUCT FEATURES
- H.265/H.264 codec decoding
- Max 200Mbps Incoming Bandwidth
- Up to 8MP Resolution for Preview and Playback
- Up to 2ch@4K/8ch@1080P decoding
- HDMI/VGA simultaneous video output
- Support IPC UPnP, 16PoE ports
System Compression | H.265/ H.264 |
---|---|
Main Processor | Embedded Processor |
Operating System | Embedded Linux |
Video Output | 1 HDMI, 1 VGA |
Video Resolution | HDMI: 3840×2160, 1920×1080, 1280×1024, 1280×720 VGA: 1920×1080, 1280×1024, 1280×720 |
IP Camera Input | 16CH |
Display Split | 1/4/8/9/16 |
Recording Resolution | 8MP, 6MP, 5MP, 3MP, 1080P, 1.3MP, 720P, etc |
Recording Rate | 200Mbps |
Bit Rate | 16~20Mbps |
Recording Mode | Manual, Schedule (Regular, Continuous), MD (Video detection: Motion Detection, Tampering, Video Loss), Stop |
Record Interval | 1 ~ 120 min (default: 60 min), Pre-record: 1 ~ 30 sec, Post-record: 10 ~ 300 sec |
Audio In | 1 |
Audio Out | 1 |
2 Way Audio | 1 Channel Input, 1 Channel Output, RCA |
Alarm In | 16 Channel |
Alarm Out | 4 Channel |
Trigger Events | Recording, PTZ, Tour, Video Push, Email, Snapshot, Buzzer and Screen Tips |
Video Detection | Motion Detection, MD Zones: 396 (22 × 18), Video Loss and Tampering |
Alarm Relay Output | N/A |
Playback Channels | 1/4/9/16 |
Playback Search | Time/Calendar Search, Event (motion) |
Playback Function | Play, Pause, FF, FB; Digital zoom |
Backup Mode | USB Device, network |
Performance | Max 12 face pictures /sec processing 2 channel video stream face recognition 8 channel picture stream face recognition ( with FD camera) |
Stranger Mode | Detect strangers' faces(not in device's face database). Similarity threshold can be set manually. |
AI Search | Up to 8 target face images search at same time, similarity threshold can be set for each target face image. |
Database Management | Up to 10 face databases with 20,000 face images in total. Name, gender, birthday, address, certificate type, certificate No., countries®ions and state can be added to each face picture. |
Database Application | Each database can be applied to video channels independently. |
Network Interface | RJ-45 port (10/100/1000Mbps) |
PoE Ports | 16 ports (IEEE802.3af/at) |
Network Function | HTTP, HTTPS, TCP/IP, IPv4/IPv6, UPnP, RTSP, UDP, SMTP, NTP, DHCP, DNS, IP Filter, PPPoE, DDNS, FTP, SNMP, IP Search (Support Dahua IP camera, DVR, NVS, etc.), Easy4ip |
Network Max. Users | 128 users |
Mobile | iPhone, Android |
USB | 2 ports(1 USB2.0, 1 USB3.0) |
RS485 | 1 port, for PTZ control |
RS232 | 1 port, for communication with PC or keyboard |
Internal HDD | 4 SATA III Ports, Up to 6 TB capacity for each HDD |
e-SATA | N/A |
Power Supply | AC100V ~ 240V, 50 ~ 60 Hz |
Power Consumption | NVR: <13.7W (Without HDD) PoE: Max 25.5w for single port, 150w in total |
Operating Conditions | -10 ~+55°C / 10~90%RH / 86~106kpa |
Dimensions | 1.5U, 440mm×411.1mm×76mm (17.3" x 16.2" x 3.0") |
Weight | Net Weight 4.7kg (10.4lb) (without HDD) Gross Weight 7.5kg(16.5 lb)(without HDD) |
- ManufactureriMaxCamPro
- Number of Channels16ch
- Recorder TypeNVR (with POE Ports)
- Network CableI have my own network cables, 50 Feet CAT6 Cable, 100 Feet CAT6 Cable, 150 Feet CAT6 Cable, 200 Feet CAT6 Cable, 300 Feet CAT6 Cable, Cat 5 Cable 1000 feet spool, CAT6 Network Cable 1000 Feet Non UL, Black
- Hard Drive #1I will install my own hard drive, 1TB HDD, 2TB HDD, 3TB HDD, 4TB HDD, 6TB HDD
- Hard Drive #2I Will Install My Own Hard Drive, 1TB HDD, 2TB HDD, 3TB HDD, 4TB HDD, 6 TB HDD
- Remote Login SupportNo Login Support Needed, FREE Setup: Remote Access Mobile App Configuration - Motion Detection Setup
