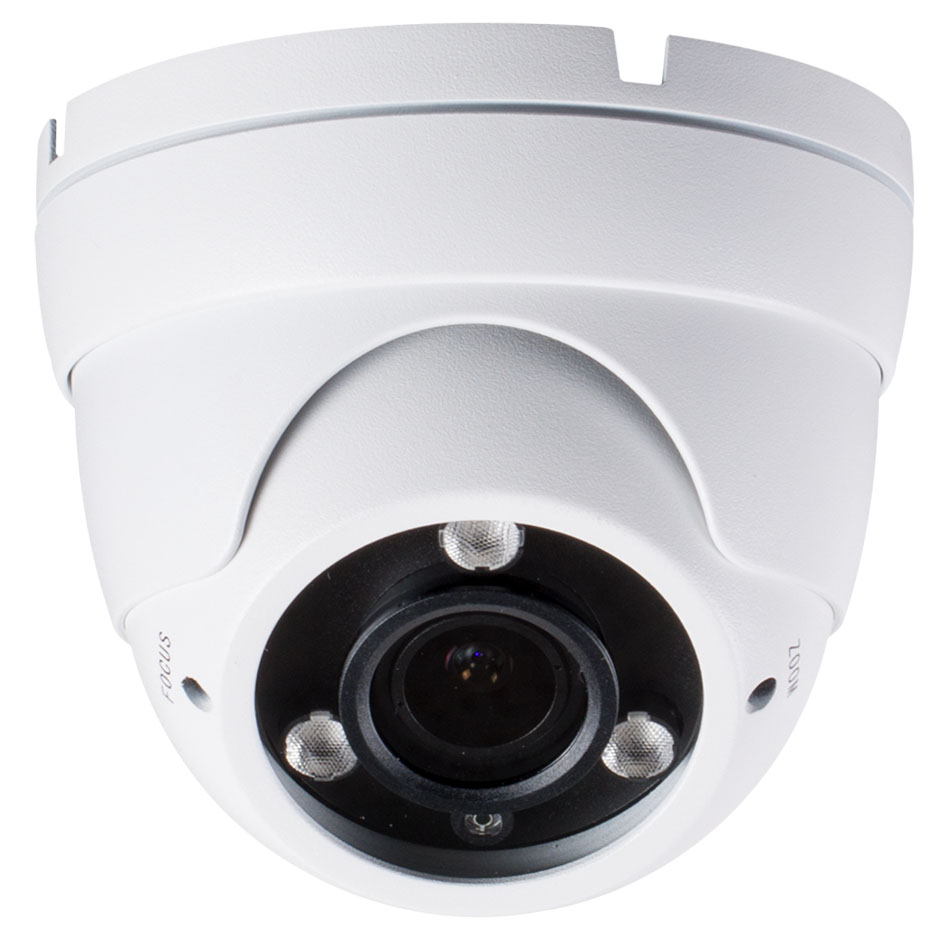

1080p 2.8-12mm Varifocal Analog & AHD/TVI/CVI Dome


Manufacturer Worldeyecam
Camera Type: Dome
Camera Resolution: 1080p
Camera Signal: 4 in 1
Lens Size: 2.8-12mm
Optical Zoom: Varifocal
Sale Price: $96.00



  • 4-in-1: HDCVI, HDTVI, AHD and Analog Video
  • 1/2.7” 2.1MP CMOS Image Sensor
  • 1080p@30fps Maximum Recording Rate
  • 2.8 - 12mm Varifocal Lens
  • Maximum IR LED Distance of 40m
  • Digital Wide Dynamic Range (DWDR)
  • IP66 Ingress Protection Rating

  • Technical Specifications

    WEC-DX4 1080p Varifocal Eyeball-Dome 4-in-1 Camera
    Camera Feautures
    Image Sensor 1/2.7” 2.1MP CMOS Image Sensor
    Digital Signal Processor Fullhan FH8536C / Eyenix EN771E
    Effective Pixels 1928 (H) x 1088 (V)
    Electronic Shutter Speed Auto
    Video Frame Rate CVI, TVI, AHD: 1080p@30fps / Analog: 1280H@30fps
    Synchronization Internal
    Minimum Illumination Color: 0.1 Lux@F1.2; B&W: 0.01Lux@F1.2 (0Lux IR on)
    Synchronization Internal
    Video Output 1 Channel BNC HDCVI/HDTVI/AHD/Analog Video Output
    Maximum IR LED Distance 40m
    Day/Night Auto (ICR) / Color / B&W
    Noise Reduction 2DNR
    Lens Size 2.8 - 12mm
    Field of View 90° (Wide) - 30° (Zoomed)
    Lens Type Varifocal
    Mount Type “C” Mount
    Power Requirement DC12V
    Power Consumption less than < 4W
    Operating Environment -10°C - +60°C; less than 90% Relative Humidity
    Ingress Protection Rating IP66
    Dimensions 130mm x 119mm x 90mm
    Weight 1.5lbs
    Shipping Weight 2lbs
