30X Optical Zoom, 12X Digital Zoom, High Resolution Sony Exmor 2 Megapixel IP-Camera, Tele & Wide Angle IR LEDs, Web Interface, Weatherproof


$1,320.00


Availability: In Stock
Ships Same Day
List Price: $1,999.99
SKU: IMAX-PTZ-30Z-IR
Product #: 82196
Manufacturer:
Camera Resolution: 1080p
Camera Signal: IP
UPC: 881314695362
Shipping Lead Time: Ships Same Day
Lens Size: 30X

Remote Login Support:
Quantity

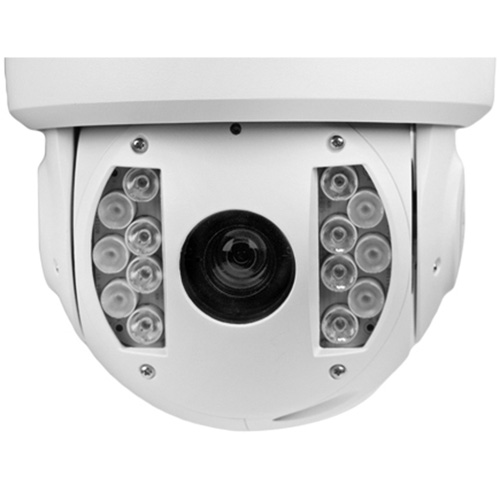

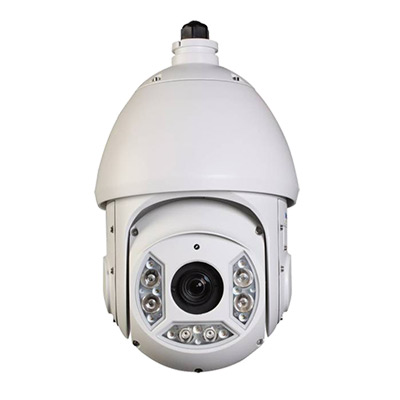

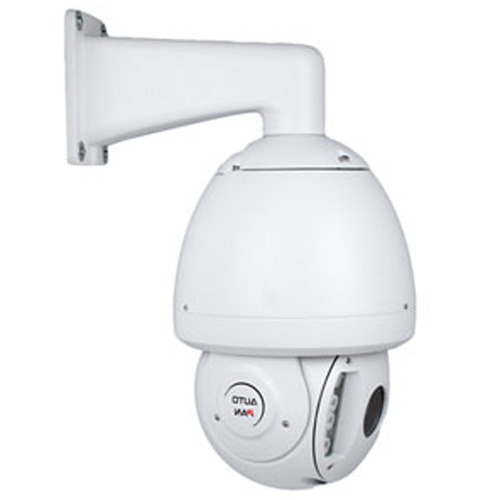

This high resolution pan/tilt/zoom surveillance camera has a 30x optical zoom lens. It records at 30 frames per second with a 1080p resolution. The pan/tilt/zoom functions allow for a 360 degree view and infrared LEDS allow the security camera to continue recording event in the dark. It is approved for outdoor use and adheres to IP67 standards.



Product Features

  • 30x optical zoom
  • Support dual-streams encoding
  • Max. 25/30fps@1080P(1920x1080) & 50/60fps@720P resolution
  • DWDR, Day/Night(ICR), Ultra DNR, Auto iris, Auto focus
  • Multiple network monitoring: Web viewer, CMS(DSS/PSS) & DMSS
  • Max 240°/s pan speed, 360° endless pan rotation
  • Up to 255 presets, 5 auto scan, 8 tour, 5 pattern
  • Built-in 2/1 alarm in/out
  • Support intelligent 3D positioning with DH-SD protocol
  • Micro SD memory, IP66
  • IR Distance up to 100m / 328 ft.



SPECIFICATIONS
Model IMAX-PTZ-30Z-IR
IP PTZ Camera
Image Sensor 1/2.8” Exmor CMOS
Effective Pixels 1920(H) x 1080(V)
Scanning System Progressive
Electronic Shutter Speed 1/1 ~ 1/30,000s
Min. Illumination Color: 0.05Lux @F1.6; B/W: 0.005Lux @F1.6, 0Lux (IR on)
S/N Ratio More than 50dB
Video Output BNC(1.0Vp-p/75Ω), PAL / NTSC
Camera Features
Day/Night Auto(ICR) / Color / B/W
Backlight Compensation BLC / HLC / DWDR (Digital WDR)
White Balance Auto, ATW, Indoor, Outdoor, Manual
Gain Control Auto / Manual
Noise Reduction Ultra DNR (2D/3D)
Privacy Masking Up to 24 areas
Digital Zoom 16X
Lens
Focal Length 4.5mm ~ 135mm ( 30X Optical zoom)
Max Aperture F1.6 ~ F4.4
Focus Control Auto / Manual
Angle of View H: 67.8° ~ 2.77°
Close Focus Distance 100mm ~ 1000mm
PTZ
Pan / Tilt Range Pan: 0° ~ 360° endless; Tilt: -15° ~ 90°, auto flip 180°
Manual Control Speed Pan: 0.1° ~160° /s; Tilt: 0.1° ~120° /s
Preset Speed Pan: 240° /s; Tilt: 200° /s
Preset 300
PTZ Mode 5 Pattern, 8 Tour, Auto Pan, Auto Scan
Speed Setup Human-oriented focal length/ speed adaptation
Power up Action Auto restore to previous PTZ and lens status after power failure
Idle Motion Activate Preset/ Pan/ Scan/ Tour/ Pattern if there is no command in the specified period
Protocol DH-SD, Pelco-P/D (Auto recognition)
IR Distance 100m / 328ft (2 near IR LED+ 4 far IR LED)
Video
Compression H.264 / MJPEG
Resolution 1080P (1920×1080) / 720P (1280×720) / D1 (704×576/ 704×480) /CIF (352×288 / 352×240)
Main Stream Frame Rate 1080P / D1 (1 ~ 25/30fps), 720P (1~50/60fps)
Sub Stream 1 Frame Rate D1 /CIF (1 ~ 25/30fps)
Sub Stream 2 Frame Rate 720P/D1/ CIF (1 ~ 25/30fps)
Bit Rate H.264: 56K ~ 8192Kbps, MJPEG: 56K ~ 20480Kbps
Audio
Compression G.711a / G.711u (32kbps) / PCM(128kbps)
Interface 1/1 channel In/Out
Intelligent Function
IVS Tripwire, Intrusion, Abandoned Object Detection, Missing Object Detection
Face Detect Support
Network
Ethernet RJ-45 (10/100Base-T)
Protocol IPv4/ IPv6, HTTP, HTTPS, SSL, TCP/IP, UDP, UPnP, ICMP, IGMP, SNMP, RTSP, RTP, SMTP, NTP, DHCP, DNS, PPPOE, DDNS, FTP, IP Filter, QoS, Bonjour, 802.1x
Compatibility ONVIF PSIA CGI
Max. User Access 20 users
Smart Phone iPhone, iPad, Android, Windows Phone
Auxiliary Interface
Memory Slot Micro SD, Max 128GB
RS485 1
Alarm 2/1 channel In/Out
General
Power Supply AC 24V/3A (±10%)
Power Consumption 10.5W, 26W (IR on, Heater on)
Working Environment -40ºC ~ 60ºC / Less than 90% RH
Ingress Protection IP66

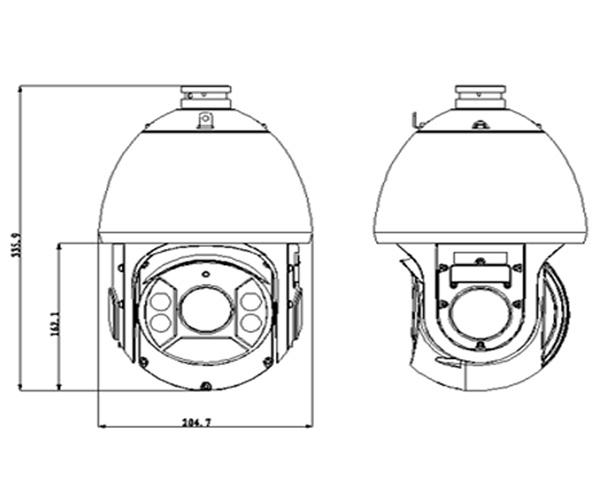

Dimensions Φ204.7(mm) x 359.9(mm)
Weight 5.0kg

Average Customer Rating:


2 Most useful customer reviews
Mr. Anderson
Apr 18, 2014
This customer purchased the item at our site.
If you have the courage to set this up yourself then you will be very happy. If you are one that would need help through customer support, you shouldn't have issue they are great. The camera itself was perfect, but I had never set one up before and I wanted to view it from my android phone. with a little research about ddns servers, I was surprised at how easy it was. My best advice is to make sure you plug it directly into the router via cat5 to access the menus at first. Once I figured it out, I was so happy with the quality of the video and smoothness of the pan & tilt. I bought one more and set it up in minutes.The infrared night vision is awesome and on the droid phones I recommend using IMaxCamPro app. you won't be disappointed with the picture quality either. Love it!!
Loading...Was the above review useful to you? Yes (2) / No (1)
Adam Baker
Apr 8, 2015
This customer purchased the item at our site.
The sophisticated design and appearance of this security camera enticed me a lot when I first saw it. Let me tell you this security camera is very high in technology from the inside as well. It was difficult for me to set it up in my home’s hallway but I figured it would be a better option if contacted the website through live chat which by the way is 24/7 available. They helped me out and told me all the details I needed to know. After that it barely took me an hour to finish up on all the necessities.

But I did find it difficult to connect the camera to my Windows phone so I asked the support again and they sent me this link to answer all my questions:http://www.worldeyecam.com/iMaxCamPRO-support.html.

This security camera is the first i have ever purchased and I'm glad it is for it is a really good one form the point of view of its specifications and graphics’ quality. I especially love the infrared LEDs that enable my camera to videotape in the dark at a distance of 100m.
Loading...Was the above review useful to you? Yes (1) / No (0)

Mobile APPs


QR Code Scan P2P iPhone Android iOS instructions

How to enable remote viewing without Port-Forwarding

We offer our own WorldEyeCam mobile apps for iPhone, iPad, Android phones and tablets. Our mobile apps allow you to remotely view your DVR and cameras from anywhere on the world. In this guide we will show you how to setup P2P or QR Code Scanning setup. No Port-Forwarding Needed.


Easy remote Viewing
P2P/QR Code Easy Setup


To access the P2P or QR code screen, you must first power on your recorder. Right click and select Main Menu->Setup->Network->P2P and the P2P/QR code will display.


You must check the box to enable P2P function and then click Apply to save at bottom of screen.




Make sure that your NVR/DVR is connected to your modem/router with a CAT5/Ethernet cable. Once P2P has been enabled please go to TCP/IP section inside of the network screen. Enable “DHCP” inside of the Network settings and save. Once DHCP has been enabled you will need to reboot the system.



Upon rebooting navigate back to the P2P setting to the system and scan the code with your mobile iMaxCam app and from this point you should be able to see the cameras.





How to setup the iPhone app with the P2P/QR Code

Step 1: Open the iMaxCam app and tap on Camera.

Step 2: Tap the menu icon on the top left corner to access the menu as shown in the picture.

Step 3: Tap the DEVICE MANAGER option to enter your DVR/NVR login information

Step 4: Once in device manager tap the plus sign button (+), in the top right corner to advance to the next screen.

Step 5: In the add device screen, select P2P

Step 6: In this Screen you need to tap the QR code icon on the right where the S/N field is.

Once you tap on QR Code icon the camera of your phone will start, go ahead and scan the code.

Name: DVR

S/N: Tap on the icon to scan the QR Code

User Name: admin (default)

Password: admin (default)

Step 7: Press the “Start Live Preview” button to start watching the cameras.

Viewing the live camera feed from your Integrator Series Network Video Recorder, or NVR, through a mobile device is simple, and can be done in less than five minutes. If you have used our G4MX App you will find it’s very similar, but if you haven’t, that’s okay too. As in the tutorial for iMaxCam, In this short tutorial we’ll be showing you how to setup your live security camera feed on your mobile device via the peer-to-peer, or P2P method, using a QR Code Scanning setup. Think of it as allowing your camera server and your mobile device to meet up and communicate together in the cloud, just by using a bar code your device can read. No Port-Forwarding or IT specialists needed. On your NVR, rick click to login to the main menu. Then select “System”, then “Network”, then click the box marked “Enable DHCP”. This should allow all the forms to be automatic when you connect your device. If you would rather set your IP address manually, you can do that as well. Just leave the “Enable DHCP” box unchecked and you will be given an opportunity to set your IP address yourself. In the setting page you’ll see the QR code. Leave that up on your screen, because you will need to scan it with your mobile momentarily. On your mobile device, download the “EZView” App from your preferred app store. Once downloaded, go ahead and open “EZView”. Select the main menu icon in the top left hand corner. Then select “Devices”. This is where you can add new devices and manage existing ones. Now that you have your device page open, you will need to add a new device. To do this, select the “+“ in the top right corner. Select “Add By P2P” to change the registration mode. Be sure to name your device (any name that works for you), then tap on the QR code icon to scan the QR code displayed on your monitor. Once you’ve done this, all of the information for your NVR should appear on your mobile, with exception of your user name and password. Go ahead and enter your login details there if prompted. After Inputting the information above select “Start Live View” at the bottom of the page to complete the setup and begin viewing your camera’s live feed! If you have any other issues or need further assistance, don’t hesitate to contact us via phone, email, or live chat. We’re here to help you. Because at World Eye Cam, we’re not just about security cameras. We want you to feel secure.
