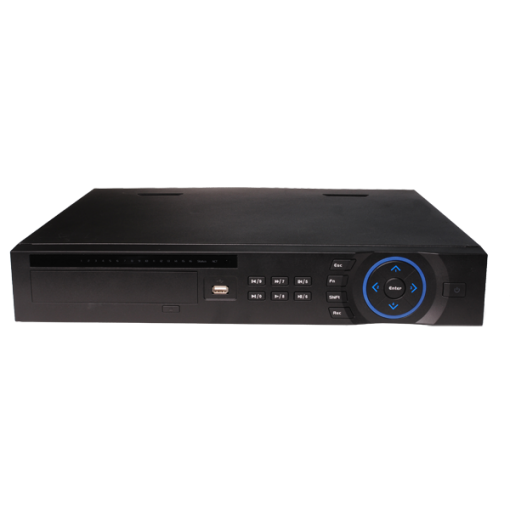

16CH 720P/1080P HD-CVI DVR, 4HDD UP TO 24TB, 1.5U, Tribrid
        • 16CH 720P/1080P HD-CVI DVR, 4HDD UP TO 24TB, 1.5U, Tribrid
        • 16CH 720P/1080P HD-CVI DVR, 4HDD UP TO 24TB, 1.5U, Tribrid

        16CH 720P/1080P HD-CVI DVR, 4HDD UP TO 24TB, 1.5U, Tribrid

        SKU: HVR504L-16-V2=HCVR5416L-V2
        iMaxCamPro
        SKU: HVR504L-16-V2=HCVR5416L-V2
        Up to 4/8/16 cameras with 1080p realtime preview H.264 dual-stream video compression HCVR5404/5408/5416L: All channel 720P HDMI / VGA/BNC simultaneous video output 4/8 channel synchronous realtime playback, GRID interface & smart search 3D intelligent positioning with Dahua PTZ dome camera Support 4 SATA HDD up to 16TB, 1 eSATA up to 16TB,3 USB2.0 Multiple network monitoring: Web viewer, CMS(DSS/PSS) & DMSS
          • 44% less
          Market price:$1377.00 save $602.00
        • $775.00

        OR
        • Up to 4/8/16 cameras with 1080p realtime preview
        • H.264 dual-stream video compression
        • HCVR5404/5408/5416L: All channel 720P
        • HDMI / VGA/BNC simultaneous video output
        • 4/8 channel synchronous realtime playback, GRID interface & smart search
        • 3D intelligent positioning with Dahua PTZ dome camera
        • Support 4 SATA HDD up to 24TB, 1 eSATA up to 16TB,3 USB2.0
        • Multiple network monitoring: Web viewer, CMS(DSS/PSS) & DMSS

        Model

        DH-HCVR5404L

        DH-HCVR5408L

        DH-HCVR5416L

        System

        Main Processor

        Embedded processor

        Operating System

        Embedded LINUX

        Video

        Input

        4 channel, BNC

        8 channel, BNC

        16 channel, BNC

        Standard

        NTSC(525Line, 60f/s), PAL(625Line, 50f/s)

        Audio

        Input

        4 channel, BNC

        Output

        1 channel, BNC

        Two-way Talk

        Reuse audio input/output channel 1

        Display

        Interface

        1 HDMI, 1 VGA, 1BNC

        Resolution

        1920×1080, 1280×1024,

        1280×720, 1024×768, 800×600

        Display Split

        1/4

        1/4/8/9

        1/4/8/9/16

        Privacy Masking

        4 rectangular zones (each camera)

        OSD

        Camera title, Time, Video loss, Camera lock, Motion detection, Recording

        Recording

        Video/Audio

        Compression

        H.264 / G.711

        Resolution

        720P(1280×720/1280×600)/960H

        (960×576/960×480)/D1/4CIF(704×576

        /704×480) / CIF(352×288/352×240) / QCIF

        (176×144/176×120)

        Record

        Rate

        Main

        Stream:

        720P/960H/D1/HD1/2CIF/CIF(1~25/30fps)

        Extra

        Stream

        CIF/QCIF(1~25/30fps)

        Bit Rate

        48~6144Kb/s

        Record Mode

        Manual, Schedule(Regular(Continuous), MD), Stop

        Record Interval

        1~120 min (default: 60 min), Pre-record: 1~30 sec, Post-record: 10~300 sec

        Video Detection&Alarm

        Trigger Events

        Recording, PTZ, Tour, Video Push, Email, FTP, Spot, Buzzer & Screen tips

        Video Detection

        Motion Detection, MD Zones: 396(22×18), Video Loss & Camera Blank

        Alarm Input

        4 channel

        8 channel

        16 channel

        Alarm Output

        6 channel

        Playback & Backup

        Sync Playback

        1/4

        1/4/8

        1/4/8/16

        Search Mode

        Time/Date, MD & Exact search (accurate to second)

        Playback Functions

        Play, Pause, Stop, Rewind, Fast play, Slow play, Next file, Previous file, Next camera, Previous camera, Full screen, Repeat, Shuffle, Backup selection, Digital zoom

        Backup Mode

        USB Device / Network

          • SKU
            HVR504L-16-V2=HCVR5416L-V2
        • Manufacturer
          iMaxCamPro
        • Number of Channels
          16ch
        • Recorder Type
          DVR
        • Hard Drive #1
          I will install my own hard drive, 1TB HDD, 2TB HDD, 3TB HDD, 4TB HDD, 6TB HDD
        • Remote Login Support
          No Login Support Needed, FREE Setup: Remote Access Mobile App Configuration - Motion Detection Setup
