WEC-IP-PT8800 -  2 Megapixel High-Resolution 20X PTZ IP Camera
More products by

WEC-IP-PT8800 - 2 Megapixel High-Resolution 20X PTZ IP Camera

(1 reviews)



Availability In Stock
Ships Same Day


Product # 86049

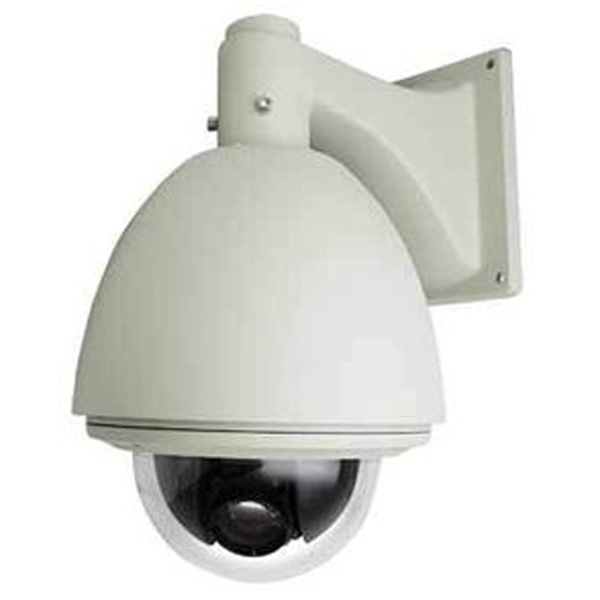

This high definition IP surveillance camera records 30 frames per second with a 1080p resolution. It has a powerful 20x optical zoom lens and auto focus. This is a pan/tilt/zoom security camera with a 360 degree continuous pan and no blind spot monitor. It meets IP66 standards and has a built-in temperature control device.

Product Features

  • 1/3" Progressive scan CMOS, 20 X optical zoom ; HD network video output
  • 1920x1080 @ 25fps (pal) / 30fps (NTSC)
  • SD card local storage, network remote storage
  • Support frame selection zoom in function
  • Provide standard SDK, easy to integrate with other digital system
  • CVBS video output : 1CH HD-SDI, 1 CH CVBS
  • IP66 weather proff ; 4KV lightning Protection ; Surge Protection
  • Power transformer Included



Model WEC-IP-PT8800
Image Sensor 1/3" Progessive CMOS
Image pixels 1920 X 1080
Horizontal resolution 1000 TVL
Min. illumination 0.5 Lux (Day) 0.1 Lux (Night) 0.05 Lux (DSS ON)
WB & S/N Ratio Auto/ Manual/ Timing ; Auto / Manual
Lens 20X Zoom, f=4.7 - 94mm, f1.6 - f3.5
Pan range 360 endless rotation
Pan Speed Preset Speed: 400/s; Manual Control Speed 0.5~120 /s
Tilt Range 0~90 (auto rotation)
Tilt Speed Preset Speed: 400/s; Manual Control Speed 0.5~90 /s
PTZ Control Support
Preset & Time Task Preset: 255, Time Task :8
Patrol , Trace & Scan Patrol: 8, Trace:4, Scan: 2
Home position display & flip Support position display ; Auto Flip
Alarm input / Output 4CH / 1CH (NC/NO)
Alarm linkage Support
Power Consumption 9W (max 24W, Heater on)
Power Supply AC24V/ DC12V
Work environment Temp: -20C ~ 60C : Humidity: less than 95%
Protection Level & Weight IP66 ; 5KG
Frame Rate 1~30FPS (25FPS)
Storage SD card local Storage, network remote storage
Smart Alarm Motion , Sensor
Resolution 1920 X 1080 , 1280 X 720 , 640 X 480 , 320 X 240 , 160 X 120
Multi-stream Support
Network interface 10Base-T / 100Base-TX, RJ45
Audio Mic input x 1 , output x 1
Analog Output CVBS
Average customer rating:
(1 reviews)

1 Most useful customer reviews (see all reviews):
Jenny Harris
Jun 8, 2015
This customer purchased the item at our site.
I had been looking for a pan, tilt and zoom security camera for ages now and never found it….in my local electronics stores. It had not crossed my mind to check online stores! After I found this security camera and ordered it said “ships same day” but it came about 3 days later and that is not the problem of the website. After the product reaches your city it is the responsibility of the mail service to deliver it to your doorstep and it is shortage of diligence on their side that brings your product a few days later.

I fixed this camera on my own without the help of external services and it took me a considerably short period of time. And of course the pan/tilt/zoom feature was absolutely flawless. It shoots footage all around the area and there is nothing that is kept out of view. The auto focus is perfect for I don’t need to manually fix that. As for the illumination I find that very fortunate for me! When snowfall is excessive in my region, all the land is white and very over exposure. But with this camera’s minimal illumination feature it is clearer to see everything properly.
