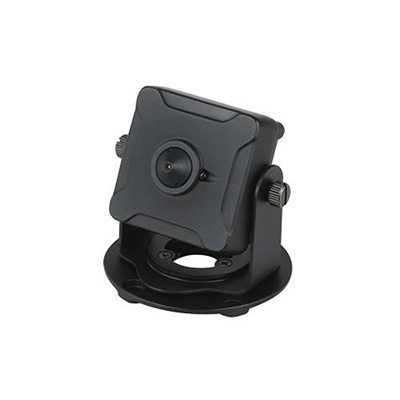

1080P 2MP HD-CVI Pinhole Camera, 3.7mm len, 12VDC
More products by

1080P 2MP HD-CVI Pinhole Camera, 3.7mm len, 12VDC

(0 reviews)



Availability In Stock
Ships same day


Product # 86290

Power supply

This hidden pinhole surveillance camera records high definition footage with a 2 MP / 1080P resolution. It has a 3.7mm fixed lens with low lux sensitivity for recording in very low light. Footage is transmitted up to 1500 feet over coax cable.


Product Features

  • 1080P 1/3" 2Megapixel CMOS
  • 25 / 30 / 50 / 60fps @ 960P, 25 / 30 / 50 / 60fps @ 720P
  • High speed, long distance real-time transmission
  • OSD Menu, DVR control as default, coaxial control optional.
  • Day/Night (ICR), AWB, AGC, BLC, 3D-DNR
  • 3.7mm pinhole lens
  • DC12V


Model WEC-HDW7320
Image Sensor 1/2.8" 2Megapixel CMOS
Effective Pixels 1920(H) × 1080(V)
Electronic Shutter 1/60s ~ 1/60,000s
Video Frame Rate 25/30fps @ 1080P, 25/30/50/60 fps @ 720P
Synchronization Internal
Min. Illumination 0.01Lux @ F1.2(AGC ON)

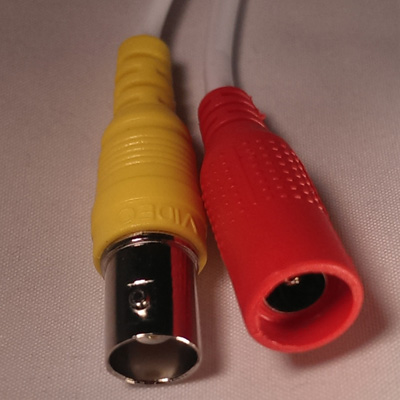

Video Output 1-channel BNC HDCVI high definition video output/ CVBS 960H definition video output (Switchable)
Camera Features
Max. IR LEDs Length N/A
Day/Night Auto / Color / B/W
Noise Reduction 2D
OSD Menu Supported
Focal Length 3.7mm pinhole lens
Power Supply DC12V ± 10%
Power Consumption Max 8W
Working Environment -20°C to 60°C (-4°F to 140°F), Less than 95% RH (no condensation)
Transmission Distance Over 500m (1640 ft.) via 75-3 coaxial cable
Ingress Protection N/A
Dimensions (W x H x D) 1.65" x 1.65" x 0.39" (42 x 42 x 10 mm)
Weight (Without Lens) 0.33lbs (0.15 kg)
