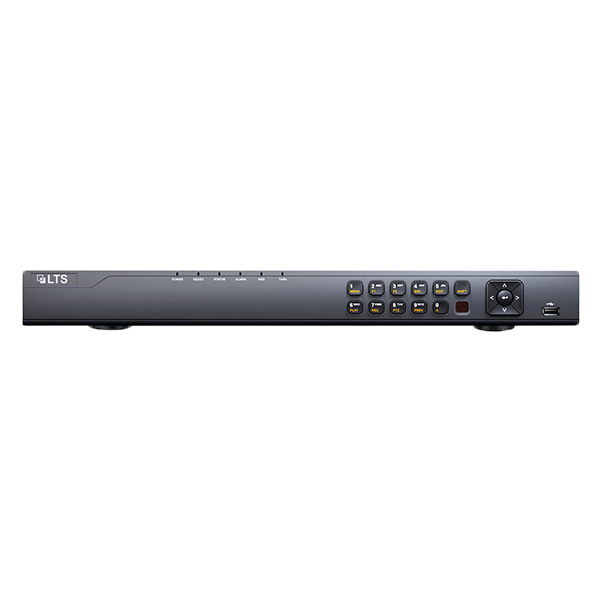

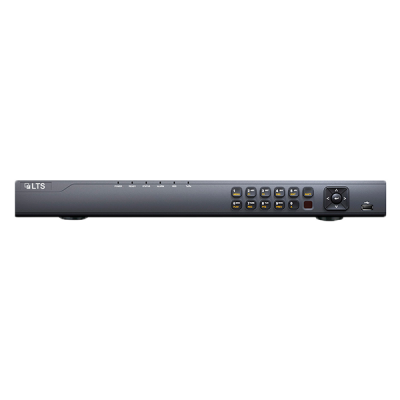

Professional Level 16 Channel NVR, 1U
More products by
LT Security

Professional Level 16 Channel NVR, 1U


(0 reviews)

$625.00

$780.00

Availability In Stock

SKU LTN8716-P16

Product # 86589

Hard Drive #1

  • 16 Channel Network Video Recorder
  • Video Input: 16CH IP@160Mbps
  • Video Output: VGA/HDMI up to 1920x1080P
  • Pentaplex Operation: Record, Playback, Backup, Live & Remote Access
  • Recording Resolution: Up to 6MP (3072x2048)
  • Recording Mode: Manual, Schedule, Video Detection, Motion Detection, Video Loss, Stop
  • Playback Channel: 16CH
  • Playback Resolution: Up to 6MP (3072x2048)
  • Audio In/Out: 1CH/ 1CH, RCA
  • Built-in PoE: 16CH
  • Network: 10/100/1000M
  • Storage: 2 SATA up to 16TB
                    2 USB, Support NAS, IP SAN
  • Support POS #: 4
  • Backup: USB or NAS

Video/Audio Input

  • IP Video Input 16-CH
  • Two-Way audio Input 1-ch, RCA (2.0 Vp-p, 1kΩ)



Network

  • Incoming Bandwidth 160Mbps
  • Outgoing Bandwidth 80Mbps
  • Remote Connection 128



Video/Audio Output

  • Recording Resolution 6MP/3MP/1080P/UXGA/720P/VGA/4CIF/DCIF/2CIF/CIF/QCIF
  • Frame Rate Main stream: 50 fps (P) / 60 fps (N)
  • Sub-stream: 50 fps (P) / 60 fps (N)
  • HDMI/VGA Output 1-ch, resolution: 1920 × 1080 /60Hz, 1600 × 1200 /60Hz, 1280 × 1024 /60Hz, 1280 × 720 /60Hz,1024 × 768 /60Hz
  • Audio Output 1-ch, RCA (Linear, 1kΩ)



Decoding

  • Live View/Playback Resolution 6MP/3MP/1080P/UXGA/720P/VGA/4CIF/DCIF/2CIF/CIF/QCIF
  • Capability 16-ch@4CIF, 12-ch@720P, 6-ch@1080P



Hard Disk

  • SATA 2 SATA interfaces for 2 HDDs
  • Capacity Up to 8TB for each disk



External Interface

  • Network Interface 1 RJ-45 10 /100 /1000 Mbps self-adaptive Ethernet interface
  • USB Interface 1 × USB 2.0 and 1 × USB 3.0



PoE

  • Interface 16 independent 100 Mbps PoE network interfaces
  • Max. Power 200W
  • Supported Standard AF and AT



General

  • Power Supply 100~240V AC
  • Consumption ≤ 15W
  • Working Temperature +14 ºF~ + 131 ºF(-10 ºC ~ +55 ºC )
  • Working Humidity 10% - 90%
  • Casing 19-inch rack-mounted 1U casing
  • Dimensions (WxDxH) 445 × 290 × 45mm (17.5 ×11.4 × 1.8 inch)
  • Weight ≤ 1 kg (2.2 lb)
There have been no reviews


Spec Sheet Spec Sheet (2332 KB)
Quick Start Guide Quick Start Guide (1652 KB)
User Manual User Manual (8038 KB)
