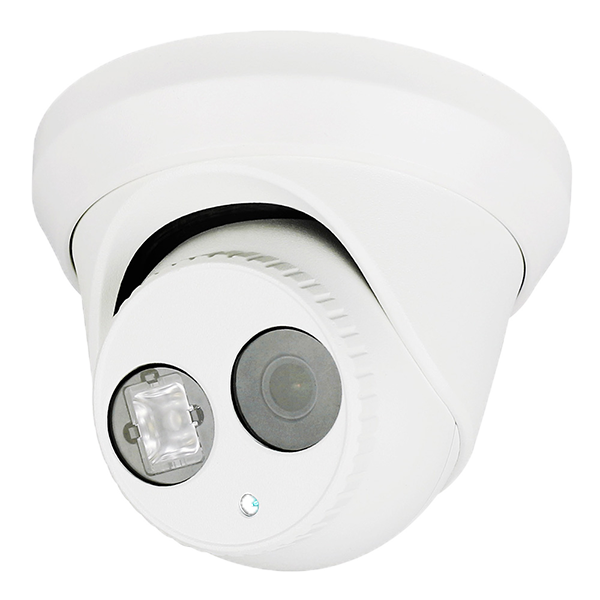

Previous Next Platinum Fixed Lens Turret IP Camera 2.1MP - 2.8mm
More products by

Previous Next Platinum Fixed Lens Turret IP Camera 2.1MP - 2.8mm


(0 reviews)

$135.00

$170.00

Availability In Stock

SKU CMIP3022-28

Product # 86643

  • 2.1MP High Definition
  • 1/2.8” CMOS
  • 1920X1080P@30fps
  • 2.8mm Fixed Lens
  • 1 Matrix IR LED up to 100ft
  • 3D DNR, DWDR, BLC, VCA
  • IP66
  • Junction Box Sold Seperately
  • DC 12V, PoE


Camera



  • Image Sensor 1/2.8” progressive scan CMOS
  • Min. Illumination0.01Lux @(F1.2,AGC ON)
  • 0 Lux with IR
  • Shutter Speed1/3s ~ 1/100,000s
  • Lens2.8mm@F2.0
  • Angle of view: 86°
  • Lens MountM12
  • Angle adjustmentHorizontal: 0° ~ 360°, vertical: 0° ~ 75°, rotation: 0° ~ 360°
  • Day & NightICR
  • Digital Noise Reduction3D DNR
  • Wide Dynamic RangeDigital WDR


Compression Standard



  • Video CompressionH.264 / MJPEG
  • Bit Rate32 Kbps ~ 8 Mbps
  • Dual streamYes





  • Max. Resolution1920 x 1080
  • Frame Rate60 Hz: 30 fps (1920 × 1080), 30fps (1280 × 960), 30 fps (1280 x 720)
  • 50 Hz: 25 fps (1920 × 1080), 25 fps (1280 × 960), 25 fps (1280 x 720
  • Image Settings
  • Rotate mode, Saturation, Brightness, Contrast adjustable
  • by client software or web browser
  • BLCYes, zone optional
  • ROISupport


Network



  • Network StorageNAS (Support NFS, SMB/CIFS)

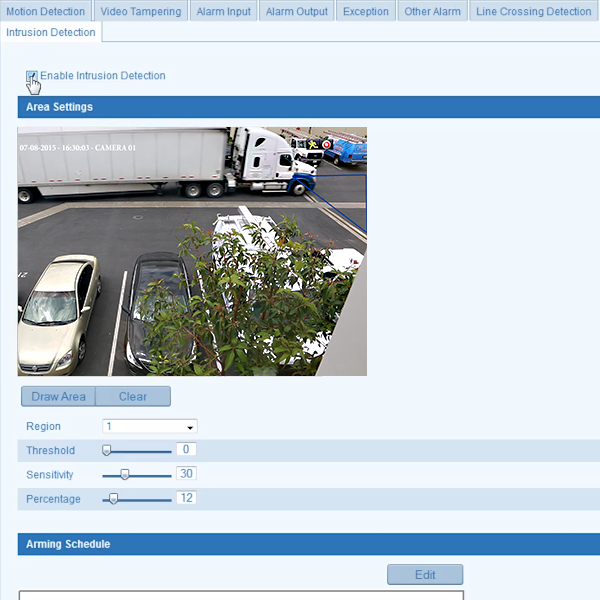

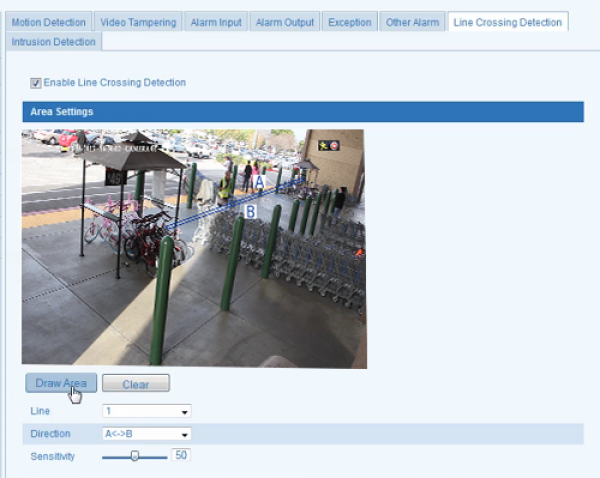

  • Alarm Triggerntrusion detection, Line crossing detection, Motion detection, Dynamic
  • analysis, Tampering alarm, Network disconnect , IP address conflict,
  • Storage exception
  • Protocols
  • TCP/IP,ICMP,HTTP,HTTPS,FTP,DHCP,DNS,DDNS,RTP,RTSP,RTCP,
  • PPPoE,NTP,UPnP,SMTP,SNMP,IGMP,802.1X,QoS,IPv6,Bonjour
  • System CompatibilityONVIF, PSIA, CGI, ISAPI
  • General functionalitiesOne-key reset, Flash-prevention, dual stream, heartbeat, mirror, password protection, privacy mask, watermark, IP address filtering, Anonymous access


Interface



  • Communication Interface1 RJ45 10M / 100M ethernet port


General



  • Working Temperature
  • /Humidity-22°F ~ 140°F(-30°C ~ 60°C )   humidity 95% or less (non-condensing)
  • Power Supply12 VDC ± 10%, PoE (802.3af)
  • Power ConsumptionMax. 7.5W
  • Ingress Protection LevelIP66
  • IR RangeAbout 65 to 100ft(20-30m)
  • Dimension Φ5.0“× 3.8”(Φ126.7 x 97.2 mm)
  • Weight1.3lb(570g)
There have been no reviews


Spec Sheet Spec Sheet (508 KB)
