Point of Sale Data Capture Box (DB9, DB25, and RS485 Connections)

The following diagram illustrates the connection for different interfaces connection between POS system and POSV3.

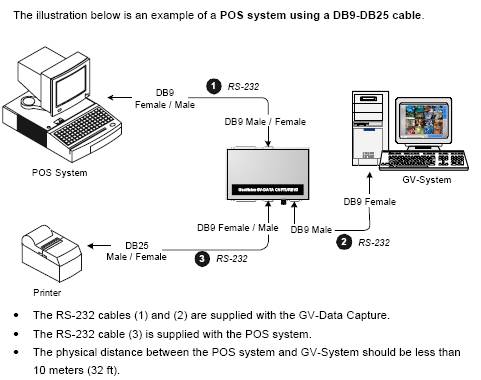

1. DB9 Serial Connection
2. DB25 Serial Connection

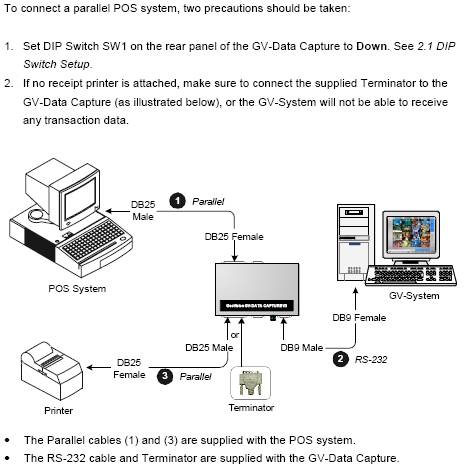

3. Parallel Connection

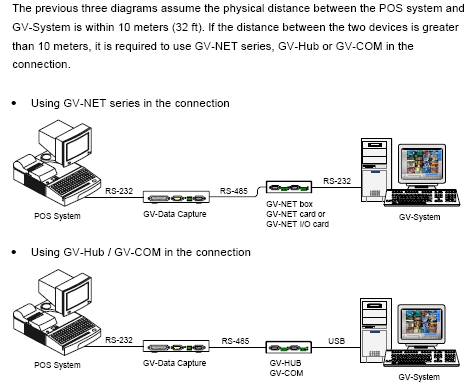

4. Extend Distance Connection
Note: The maximum distance of RS-485 is 600 meters (2000 ft).
5. Configure Multicam System
