Platinum Professional Level 8 Channel NVR 1U
More products by
LT Security

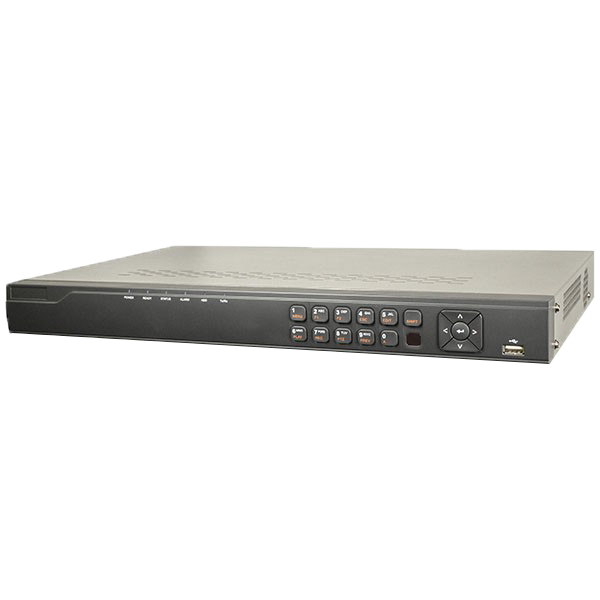

Platinum Professional Level 8 Channel NVR 1U


(0 reviews)

$275.00

$350.00

Availability In Stock

SKU LTN8708-P8

Product # 86587

Hard Drive #1

  • 8 Channel Network Video Recorder
  • Video Input: 8CH IP@80Mbps
  • Video Output: VGA/HDMI up to 1920x1080P
  • Pentaplex Operation: Record, Playback, Backup, Live & Remote Access
  • Recording Resolution: Up to 6MP (3072x2048)
  • Recording Mode: Manual, Schedule, Video Detection, Motion Detection, Video Loss, Stop
  • Playback Channel: 8CH
  • Playback Resolution: Up to 6MP (3072x2048)
  • Audio In/Out: 1CH/ 1CH, RCA
  • Built-in PoE: 8CH
  • Network: 10/100/1000M
  • Storage: 2 SATA up to 16TB
                    2 USB, Support NAS, IP SAN
  • Support POS #: 4
  • Backup: USB or NAS



Video / Audio input
IP video input 8-ch
Two-way audio input 1-ch, RCA (2.0 Vp-p, 1kΩ)

Network
Incoming bandwidth 80Mbps
Outgoing bandwidth 80Mbps
Remote connection 128

Video / Audio output
Recording resolution 6MP/3MP/1080P/UXGA/720P/VGA/4CIF/DCIF/2CIF/CIF/QCIF
HDMI / VGA output 1-ch, resolution:
1920 × 1080P /60Hz, 1600 × 1200 /60Hz,
1280 × 1024 /60Hz, 1280× 720 /60Hz, 1024 × 768 /60Hz
Audio output 1-ch, RCA (Linear, 1kΩ)
Frame rate Main stream: 50 fps (P) / 60 fps (N)
Sub-stream: 50 fps (P) / 60 fps (N)

Decoding
Live view / Playback resolution 6MP/3MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF
Capability 8-ch

Hard disk
SATA 1 SATA interface for 1 HDD
Capacity Up to 8TB for each disk

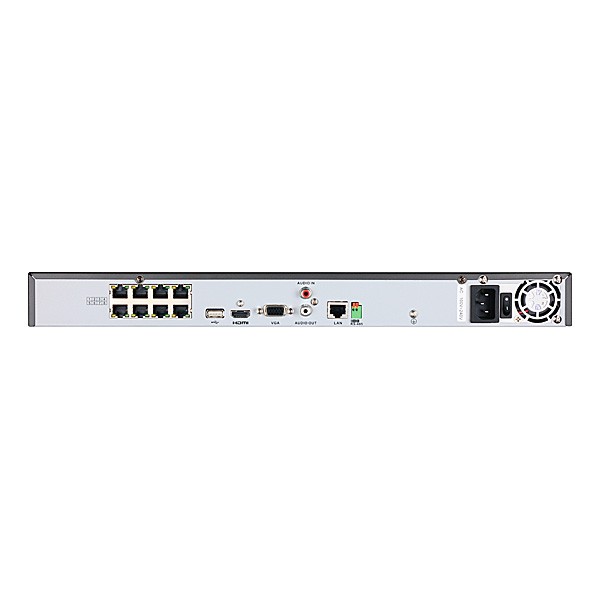

External interface
Network interface 1 RJ-45 10 / 100 / 1000 Mbps self-adaptive Ethernet interface
Serial interface 1 RS-485 half-duplex interface
USB interface 1 × USB 2.0 and 1 × USB 3.0

PoE
PoE Interface 8 independent 100 Mbps PoE
Max. Power 120W
Standard AF and AT

General
Power supply 100~240 VAC, 47 ~ 63 Hz, 3A
Power Consumption ≤ 10 W (without hard disk)
Working temperature 14°F~131°F(-10 °C ~ +55 °C)
Working humidity 10% ~ 90%
Chassis 19-inch Rack-Mounted 1U Chassis
Dimension 17.5”×11.4”×1.8”(445 × 290 × 45mm)
Weight ≤ 8.8lb(4 Kg )( without hard disk)
