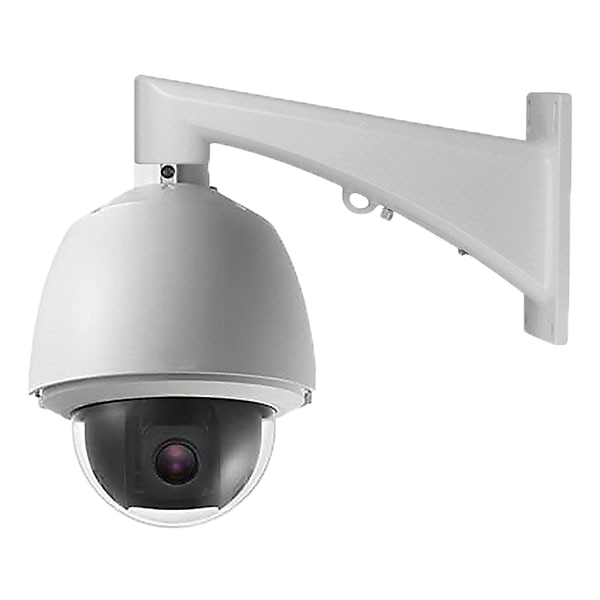

Platinum IP PTZ High Speed Dome Camera 1.3MP
More products by
LT Security

Platinum IP PTZ High Speed Dome Camera 1.3MP


(0 reviews)

$500.00

$625.00

Availability In Stock

SKU PTZIP741X20

Product # 86699



  • 1.3MP High Definition
  • 1/2.8” CMOS Sensor
  • 1280X960P@30fps
  • 4.7-94mm Lens
  • 20x Optical Zoom
  • True Day/Night, 3D-DNR, DWDR, Privacy Masking
  • AC 24V, PoE Plus
  • 5"(Φ)
  • Wall Mount Bracket Included








Camera



  • Image Sensor 1/3’’ sensor
  • Effective Pixel1320K pixels
  • Min. IlluminationColor: 0.05Lux@( F1.4, AGC ON)
  • B/W: 0.01Lux@( F1.4, AGC ON)
  • White BalanceAuto / Manual /ATW/Indoor/Outdoor/Daylight lamp/Sodium lamp
  • AGCAuto / Manual
  • S / N Ratio≥ 50dB
  • Digital Noise Reduction3D DNR
  • Backlight compensationBLC
  • Wide Dynamic RangeDigital WDR
  • Shutter Speed1 ~ 1/10,000s
  • Day & NightIR Cut Filter
  • Focus ModeAuto / Semiautomatic / Manual


Lens



  • Focal Length4.7 ~ 94.0mm, 20x
  • Zoom SpeedApprox 3s(Optical Wide-Tele)
  • Angle of View58.3 ~ 3.2 degree (Wide-Tele)
  • Min. Working Distance10 ~ 1000mm(Wide-Tele)
  • Aperture RangeF1.4 ~ F3.5


Pan and Tilt



  • Pan / Tilt RangePan: 360° endless; Tilt: -5° ~ 90° (Auto Flip )
  • Pan / Tilt SpeedPan Manual Speed: 0.1° ~ 250°/s, Pan Preset Speed: 300°/s
  • Tilt Manual Speed: 0.1° ~ 150°/s, Tilt Preset Speed: 200°/s
  • Proportional ZoomRotation speed can be adjusted automatically according to zoom multiples
  • Number of Preset256
  • Park actionPattern/Pan scan/Tilt scan/Frame scan/Panorama scan/Random scan
  • Patrol8 patrols, up to 32 presets per patrol

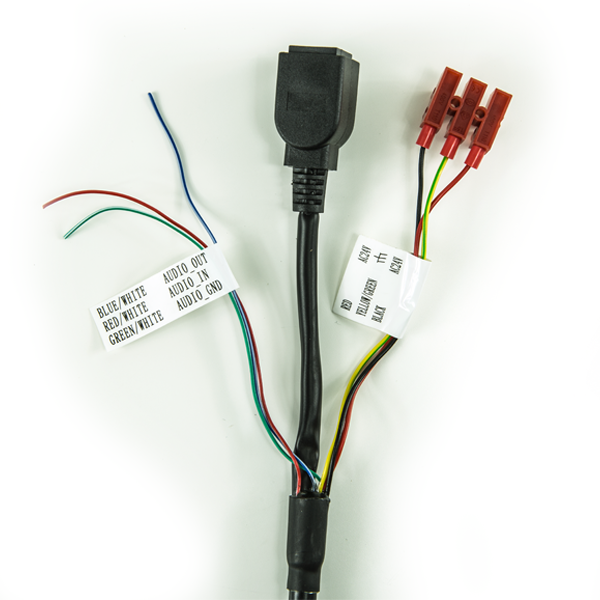

Input/ Output



  • Audio InputAudio input (Line input), 2 ~ 2.4V[p-p]; output impedance: 1KΩ±10%
  • Audio OutputLine level, impedance: 600Ω


Network



  • Ethernet10Base-T / 100Base-TX, RJ45 connector
  • Max. Image Resolution1280×960
  • Frame Rate60Hz: 30 fps (1280×960) , 30 fps (1280×720)
  • 50Hz: 25 fps (1280×960) , 25 fps (1280×720)
  • Image CompressionH.264/MPEG4
  • Audio CompressionG.711u /G.711a /G.726
  • ProtocolsIPv4/IPv6, HTTP, HTTPS, 802.1x, Qos, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTP, TCP, UDP, IGMP, ICMP, DHCP, PPPoE
  • Simultaneous Live ViewUp to 6
  • StreamsDual Streams
  • Mini SD Memory CardMicro SD Slot, up to 32GB
  • User/Host LevelUp to 32 users, 3 Levels: Administrator, Camera control, Live view only
  • Security MeasuresUser authentication (ID and PW), Host authentication (MAC address), IP address filtering


Integration



  • Application programmingOpen-ended API, support Onvif, PSIA and CGI
  • Web BrowserIE 7, IE 8, IE 9, Chrome 8 +, Firefox 3.5 +, Safari 5 +


General



  • Working Temperature
  • /Humidity-30 °C ~ 65°C(-22°F ~ 149°F)
  • 90% or less
  • Power Supply24 VAC / PoE+;
  • Power ConsumptionMax. 22W
  • Ingress protection levelIP66 standard
  • TVS 4,000V lightning protection, surge protection and voltage transient protection
  • Impact ProtectionIEC60068-275Eh, 20J; EN50102, up to IK10
  • Dimension Φ220×305mm (Φ8.66”×12.02” without bracket)
  • Weight5kg(11.02Ibs without bracket)
