Platinum IP PTZ High Speed Dome 1.3MP - In Ceiling
More products by
LT Security

Platinum IP PTZ High Speed Dome 1.3MP - In Ceiling


(0 reviews)

$375.00

$460.00

Availability In Stock

SKU PTZIP211X20-C

Product # 86694



  • 1.3MP High Definition
  • 1/2.8” CMOS Sensor
  • 1280X720P@30fps
  • 4.7-94mm Lens
  • 20x Optical Zoom
  • True Day/Night, 3D-DNR, DWDR, Privacy Masking
  • Indoor
  • AC 24V, PoE Plus
  • 4"(Φ)

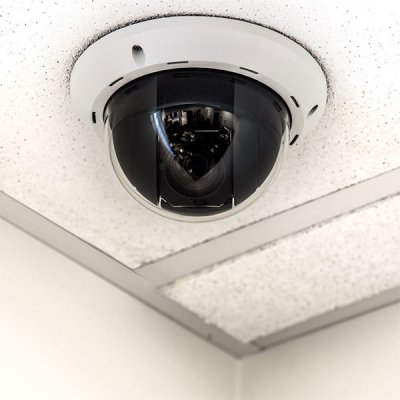

  • Ceiling and Flush Mount








Camera

  • Image Sensor 1/3" Progressive Scan CMOS
  • Effective Pixel1280(H) × 720(V)
  • Min. IlluminationColor: 0.05Lux @ (F1.6, AGC On), B/W: 0.01Lux @ (F1.6, AGC On)
  • White BalanceAuto/Manual/ATW/Indoor/Outdoor/Daylight lamp/Sodium lamp
  • AGCAuto / Manual
  • S / N Ratio≥ 52dB
  • Digital Noise Reduction3D DNR
  • Backlight compensationBLC
  • Wide Dynamic RangeDigital WDR
  • DefogSupport
  • Shutter Speed1/1~ 1/10,000s
  • Day and NightIR Cut Filter
  • Digital Zoom16X
  • Focus ModeAuto / Semiautomatic / Manual
  • Privacy Mask2 privacy masks programmable


Lens


Focal Length4.7-94mm, 20x
Zoom SpeedApprox.3s (Optical Wide-Tele)
Angle of View58.3 ~ 3.2 degree (Wide-Tele)
Min. Working Distance10 ~1000mm (Wide-Tele)
Aperture RangeF1.6 ~ F3.5


Pan and Tilt



  • Pan / Tilt RangePan: 360° endless; Tilt: -2° ~ 90°(Auto Flip)
  • Pan / Tilt SpeedPan manual speed: 0.1° ~ 160°/s, Pan preset speed: 160°/s
  • Tilt manual speed: 0.1° ~ 120°/s, Tilt preset speed: 120°/s
  • Proportional ZoomRotation speed can be adjusted automatically according to zoom multiples
  • Number of Preset256
  • Patrol8 patrols, up to 32 presets per patrol
  • Park ActionPattern/Pan scan/Tilt scan/Frame scan/Panorama scan/Random scan
  • Power-Off MemorySupport
  • PTZ Position DisplayOn / off
  • Preset FreezingSupport


Local Video and Audio

  • Alarm Input / Output1 input 0-5v DC / 1 replay output, alarm response actions configurable
  • Audio Input / Output1 mic/Line in, 2-2.4V[p-p]; output impedance: 1KΩ, ±10% / 1 output, Line level, impedance: 600Ω


Network


Ethernet10Base-T / 100Base-TX, RJ45 connector
Max. Image Resolution1280×720
Frame Rate60Hz: 30 fps (1280×720);50Hz: 25 fps (1280×720)
Image CompressionH.264/MJPEG
SVCSupport
ROI EncodingSupport 2 areas with adjustable levels
Audio CompressionG.711u /G.711a /G.726 /MP2L2
ProtocolsIPv4/IPv6, HTTP, HTTPS, 802.1X, QoS, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTP,TCP, UDP,IGMP, ICMP, DHCP, PPPoE
Simultaneous Live ViewUp to 6
StreamsDual streams
SD Memory CardBuilt-in micro SD card slot, up to 64GB, support edge recording


Integration



  • Application ProgrammingOpen-ended API, support Onvif, PSIA and CGI
  • Web BrowserIE 7+, Chrome 18+, Firefox 5.0+, Safari 5.02+


General

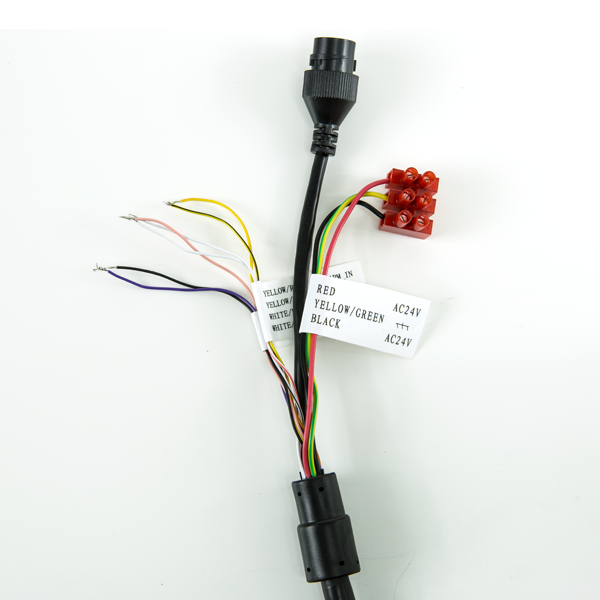

  • Power24VAC/PoE+(802.3at), Max18W; -C: 24VAC/PoE(802.3af), Max 12W
  • Working Temperature-22°F ~ 149°F (-30°C ~ 65°C) ; -C: 14°F ~122°F (-10°C ~ 50°C)
  • Humidity90% or less
  • Protection LevelIP66 standard(PTZIP211X20) TVS 4,000V lightning protection, surge protection and voltage transient protection
  • DimensionsΦ7.06”×9.43”(Φ179.4×239.5mm )(PTZIP211X20) Φ6.50”×6.61”(Φ165×168mm) (PTZIP211X20-C)
  • WeightApprox. 4.41Ibs (2Kg)
There have been no reviews


Spec Sheet Spec Sheet (2215 KB)
Quick Start Guide Quick Start Guide (2385 KB)
User Manual User Manual (3776 KB)
Installation Manual Installation Manual (3981 KB)
