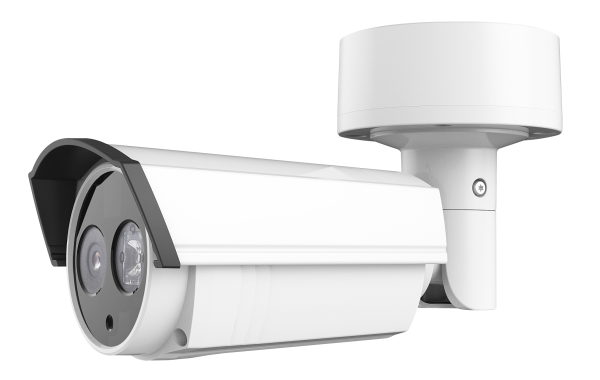

Platinum HD Fixed Lens Bullet IP Camera 3.2MP
More products by
LT Security

Platinum HD Fixed Lens Bullet IP Camera 3.2MP


(0 reviews)

$160.00

$200.00

Availability In Stock

SKU CMIP9532

Product # 86679

  • 3.2MP High Definition
  • 1/3” CMOS
  • 2048X1536P@20fps
  • 4mm Fixed Lens
  • 1 Matrix IR LED up to 100ft
  • 3D DNR, DWDR, BLC, VCA
  • IP66
  • Junction Box Included
  • DC 12V, PoE






Camera



  • Image Sensor 1/3” sensor
  • Min. Illumination0.14 lux@F2.0, AGC on
  • 0 lux with IR
  • Shutter Speed1/25s ~ 1/100,000s
  • Lens4mm@F2.0
  • 2048 × 1536:Angle of view: 70°
  • 1920 × 1080:Angle of view: 79°
  • Lens MountM12
  • Day & NightICR
  • Digital Noise Reduction3D DNR
  • Wide Dynamic RangeDigital WDR


Compression Standard



  • Video CompressionH.264 / MJPEG
  • Bit Rate32 Kbps ~ 16 Mbps
  • Dual streamYes





  • Max. Resolution2048 × 1536
  • Frame Rate60Hz: 15fps (2048 x 1536), 30fps (1920 × 1080), 30fps (1280 x 720)
  • 50Hz: 12.5fps (2048 x 1536), 25fps (1920 × 1080), 25fps (1280 x 720)
  • Image SettingsSaturation, brightness, contrast adjustable through client software or web browser


Network



  • Network StorageNAS ( iSCSI optional)
  • Alarm TriggerMotion detection.tampering alarm
  • ProtocolsTCP/IP, HTTP, DHCP, DNS, DDNS, RTP, RTSP, PPPoE, SMTP, NTP, SNMP, HTTPS, FTP,802.1x, Qos (SIP, SRTP, IPv6 optional)
  • System CompatibilityONVIF, PSIA, CGI
  • General functionalitiesFlickerless, heartbeat, mirror, user authentication, video mask, watermark


Interface



  • Communication Interface1 RJ45 10M / 100M ethernet port


General



  • Working Temperature
  • /Humidity-13°F ~ 140°F(-25°C ~ 60°C)   humidity 95% or less (non-condensing)
  • Power SupplyDC12V ± 10%, PoE (802.3af)
  • Power ConsumptionMax. 9.5W
  • Ingress protection levelIP66
  • IR RangeUp to 100ft (About 30m)
  • Dimension 3.96"×3.47"×11.22"(100.5 x 88.1 x 285 mm)
  • Weight2.65 lb(1200g)
There have been no reviews


Spec Sheet Spec Sheet (8202 KB)
Quick Start Guide Quick Start Guide (419 KB)
