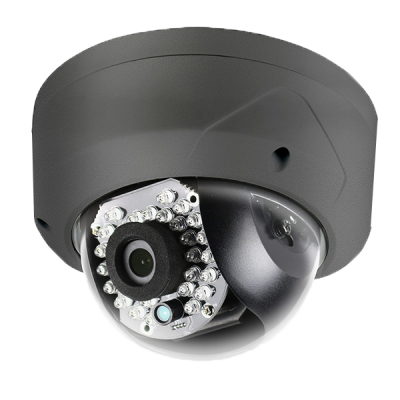

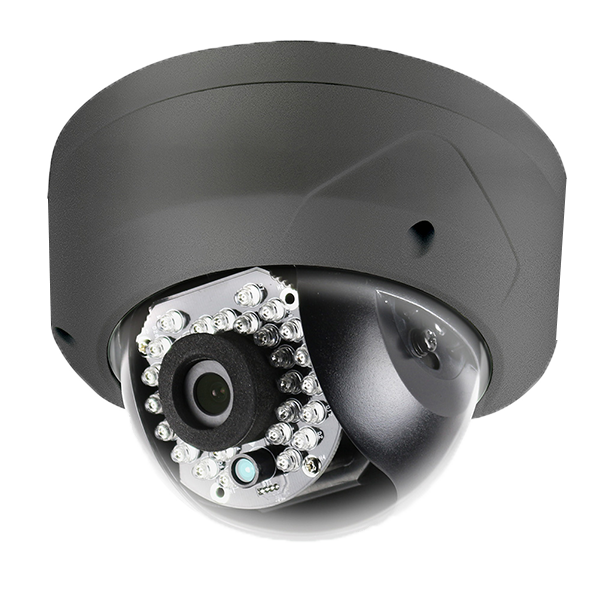

Platinum Fixed Lens Dome IP Camera 4.1MP - 2.8mm
More products by
LT Security

Platinum Fixed Lens Dome IP Camera 4.1MP - 2.8mm


(0 reviews)

$285.00

$355.00

Availability In Stock

SKU CMIP7442WB-28M

Product # 86677

  • 4.1MP High Definition
  • 1/3” CMOS
  • 2688X1520P@20fps
  • 2.8mm Fixed Lens
  • 30 IR LEDs up to 100ft
  • 3D DNR, WDR, BLC, VCA, 3-Axis
  • Micro SD/SDHC/SDXC Card Slot
  • Vandalproof, IP66
  • Junction Box Sold Seperately
  • DC 12V, PoE






Camera



  • Image Sensor1/3" Progressive Scan CMOS
  • Min. Illumination0.01Lux @ (F1.2, AGC ON), 0 Lux with IR
  • Shutter Speed1/3 s to 1/10,000 s
  • Lens2.8mm
  • Lens MountM12
  • Day & NightIR cut filter with auto switch
  • DNR3D DNR
  • Wide Dynamic Range120dB
  • Swivel-90° ~ 9 0°, Tilt: 0° ~ 75°


Compression Standard



  • Video CompressionH.264 / MJPEG/H.264 Zip+
  • H.264 TypeMain Profile
  • Video Bit Rate32 Kbps ~ 8 Mbps
  • Dual StreamsSupport





  • Max. Resolution2688×1520
  • Frame Rate60Hz: 20fps (2688×1520), 30fps (1920×1080), 30fps(1280×720)
  • 50Hz: 20fps (2688×1520), 25fps(1920×1080), 25fps(1280×720)
  • Image SettingRotate Mode, Saturation, Brightness, Contrast, Sharpness adjustable by client software or web browser
  • BLCSupport, zone configurable
  • ROI CodecSupport


Network



  • Network StorageNAS (Support NFS,SMB/CIFS), ANR
  • Alarm TriggerMotion detection, Tampering alarm, Network disconnect, IP address conflict, Storage exception
  • ProtocolsTCP/IP, UDP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, Bonjour
  • GeneralOne-key reset, Flash-prevention, dual stream, heartbeat, mirror, password protection, privacy mask, watermark, IP address filtering, Anonymous access
  • StandardONVIF (PROFILE S, PROFILE G), PSIA, CGI, ISAPI


Interface



  • Communication Interface1 RJ45 10M/100M Ethernet port
  • On-Board StorageBuilt-in Micro SD/SDHC/SDXC slot, up to 128GB
  • ResetYes


General



  • Working Temperature
  • /Humidity -22 ° F ~ 140 °F (-30 °C ~ 60 °C)
  • Humidity 95% or less (non-condensing)
  • Power SupplyDC12V ± 10%, PoE (802.3af)
  • Power ConsumptionMax. 5W
  • IR RangeApprox. 100ft (30 meters)
  • Weather Proof RatingsIP66
  • Impact ProtectionIK10
  • DimensionsΦ4.4” × 3.2” (Φ111×82.0mm)
  • Weight1.1 lbs (500g)
There have been no reviews


Spec Sheet Spec Sheet (4116 KB)
Quick Start Guide Quick Start Guide (867 KB)
User Manual User Manual (3531 KB)
