Platinum Enterprise Level 64 Channel NVR 2U
More products by
LT Security

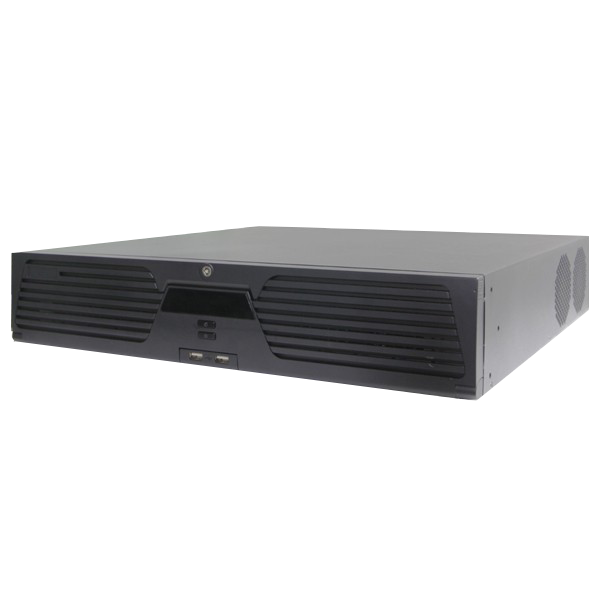

Platinum Enterprise Level 64 Channel NVR 2U


(0 reviews)

$4,150.00

$5,180.00

Availability In Stock

SKU LTN0764-R8

Product # 86602

Hard Drive #1

  • 64 Channel Network Video Recorder
  • Video Input: 64CH IP@768Mbps
  • Video Output: VGA/HDMI up to 3840x2160
  • Pentaplex Operation: Record, Playback, Backup, Live & Remote Access
  • Recording Resolution: Up to 8MP (3840x2160)
  • Recording Mode: Manual, Schedule, Video Detection, Motion Detection, Video Loss, Stop
  • Playback Channel: 16CH
  • Playback Resolution: Up to 8MP (4096x2160)
  • Audio In/Out: 1CH/ 1CH, BNC
  • Alarm In/Out: 16/4
  • Network: 10/100/1000M, 2xRJ45
  • Storage: 8 SATA up to 64TB, RAID
                    eSATA, 2 USB 2.0 + 2 USB 3.0, NAS, IP SAN
  • Backup: USB, NAS, or eSATA, DVD-RW

Video / Audio Input



  • IP Video Input 64-ch
  • Two-Way Audio Input 1-ch, RCA (2.0 Vp-p, 1kΩ)


Network

  • Incoming Bandwidth 768Mbps
  • Outgoing Bandwidth 768Mbps
  • Remote connection 128
  • Network Protocol HIKVISION, ACTi, ARECONT, AXIS, BOSCH, BRICKCOM, CANON, HUNT, ONVIF(Version 2.4), PANASONIC, PELCO, PSIA, SAMSUNG,SANYO, SONY, VIVOTEK, ZAVIO
  • HDMI output
  • 2-ch, resolution:
  • HDMI1: 1920 × 1080P /60Hz, 1600 × 1200 /60Hz, 128 ×0 1024 /60Hz,
  • 1280 × 720 /60Hz,1024 × 768 /60Hz
  • HDMI2: 3840 × 2160P /60Hz, 1920 × 1080P /60Hz,1600 × 1200 /60Hz,
  • 1×28 10024 /60Hz,1 280 × 720 /60Hz, 1024 × 768 /60Hz
  • VGA Output
  • 1-ch, resolution:
  • 1920 × 1080P /60Hz, 1600 × 1200 /60Hz, 1280 × 1024 /60Hz, 1028 × 720 /60Hz,
  • 1024 × 768 /60Hz
  • Audio Output 1-ch, BNC (Linear, 600 Ω)


Decoding



  • Decoding Format H.264, MPEG4, M-JPEG
  • Recording Resolution 8MP/5MP/3MP/1080P/ UXGA/ 720P/ VGA / 4CIF/DCIF/2CIF/CIF/QCIF
  • Synchronous playback 16-ch


Hard disk



  • SATA Up to 8 SATA interfaces for 4HDD+1 DVD-R/W, or 8HDDs
  • eSATA 1 eSATA interface
  • Capacity Up to 8TB capacity for each HDD



  • Disk array
  • Array Type RAID0, RAID1, RAID5, RAID10
  • Number of Array 8

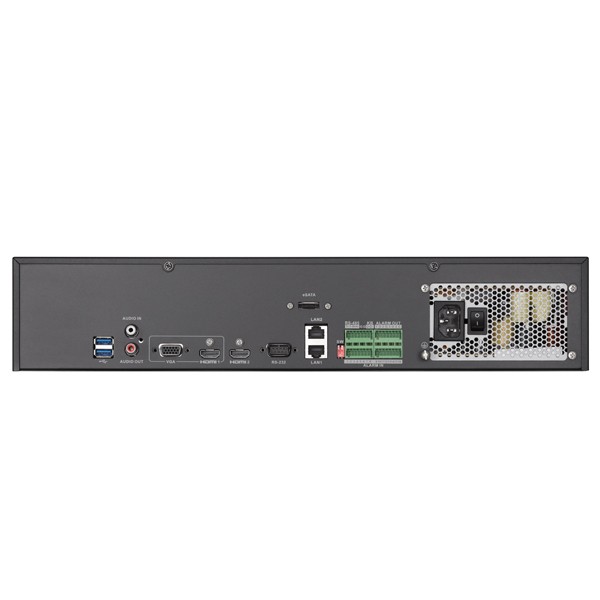

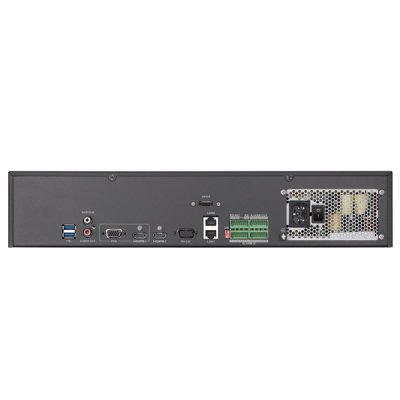

Interface



  • Network Interface 2 RJ-45 10 /100 /1000 Mbps self-adaptive Ethernet interfaces
  • Serial interface RS-232, RS-485, RS-485 keyboard
  • USB Port 2 x USB2.0 + 2 x USB3.0
  • Alarm In/Out 16/4


General



  • Power Supply 100 ~ 240 VAC, 6.3A, 50 ~ 60Hz
  • Power Consumption ≤100W
  • Working Temperature -10°C ~ +55°C (14 °F ~ 131 °F)
  • Working humidity 10% ~ 90%
  • Dimension 445 × 470 × 90 mm (17.52" ×18.5"× 3.54")
  • Weight ≤ 8 kg (17.64 lb) ( without hard disk or DVD-R/W )
There have been no reviews


 Spec Sheet Spec Sheet (1430 KB)
Quick Start Guide Quick Start Guide (2578 KB)
User Manual User Manual (9214 KB)
