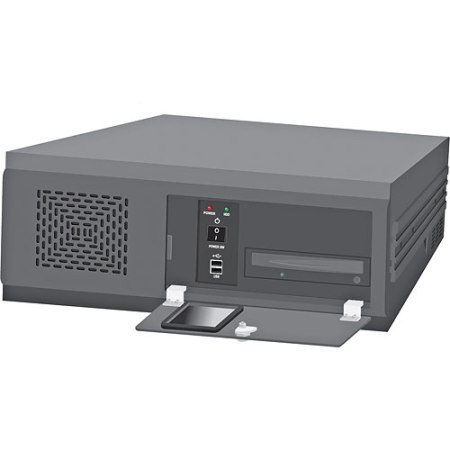

Pelco DX8116-250A 16 Channel DVR with 250GB Storage and Audio
The Pelco DX8116-250A is a superior performance DVR, loaded with the
functions and features you've come to expect from a high end recorder,
especially one with the Pelco name on it. It records at a super high
frame rate of 480 IPS across all channels, supports motion detection as
well as PTZ control for each camera input plus numerous other features.
It's most important characteristic however is its upgrade capability. As your business grows so will your security needs. If you find yourself requiring more camera inputs, you can attach the 16-channel expansion box option, giving you a total of 32 video inputs.
If you suspect that you will be soon running out of storage space, you can acquire an external HDD unit, available with storage capacity up to 3 terabytes.
Step Up Features From DX8000 Series DVRs
It's most important characteristic however is its upgrade capability. As your business grows so will your security needs. If you find yourself requiring more camera inputs, you can attach the 16-channel expansion box option, giving you a total of 32 video inputs.
If you suspect that you will be soon running out of storage space, you can acquire an external HDD unit, available with storage capacity up to 3 terabytes.
Step Up Features From DX8000 Series DVRs
- Shipping info
We deliver worldwide
- Payment methods
- Return Policy
We accept returns
- Customer Reviews
Check out our customer Reviews
Pelco DX8116-250A 16 Channel DVR with 250GB Storage and Audio
The Pelco DX8116-250A is a superior performance DVR, loaded with the functions and features you've come to expect from a high end recorder, especially one with the Pelco name on it. It records at a super high frame rate of 480 IPS across all channels, supports motion detection as well as PTZ control for each camera input plus numerous other features.
It's most important characteristic however is its upgrade capability. As your business grows so will your security needs. If you find yourself requiring more camera inputs, you can attach the 16-channel expansion box option, giving you a total of 32 video inputs.
If you suspect that you will be soon running out of storage space, you can acquire an external HDD unit, available with storage capacity up to 3 terabytes.
Step Up Features From DX8000 Series DVRs
16-Channel Audio Recording
This DVR comes installed with the DX8000-AUD PCI expansion card, allowing audio from all camera inputs to be recorded along with their video. The ability to hear as well as see provides an operator with a full sense of an occurrence, greatly enhancing security performance. It is also a particularly useful feature for retail stores, factories and similar applications requiring 2-way verbal communication.
Easily Upgradeable
Upgrade options are available to expand camera inputs and storage capacity. The Pelco DX8100-EXP 16-channel external expansion box adds 16 more camera inputs for a total of 32 channels. This box also provides one additional video output. The optional DX9200HDDI external HDD unit further increases storage capacity by up to 3 terabytes. This HDD unit can also be used in a RAID configuration to provide fail-safe redundant operation.
Backwards Compatible with DVR8000 Units
While offered as an upgrade unit, the DX8100 is fully compatible with DX8000 DVRs. Any type of external controller or software developed for the DX8000 can also be used with this DVR. The DVR8100 can also be used in a mixed environment with DX8000 units without causing any incompatibility issues.
Shared Features
Super Fast Recording Speeds
Video is recorded at speeds up to 480 IPS across all 16 channels, and at a resolution of up to 704 x 480. Faster recording speeds eliminate jerky video movements, resulting in properly defined images as well as less eye fatigue for an operator who is viewing for long hours.
Support for Third Party Domes Via Optional Keyboard
PTZ dome cameras from different manufacturers can be controlled alongside Pelco coaxitron domes using the optional KBD300A joystick controller. This allows facilities containing older PTZ domes from different manufacturers to upgrade their DVR to this feature-rich model without having to replace their existing cameras.
Ability to Daisy Chain 5 DVRs
Five DX8100 DVRs can be connected together in a server-to-server configuration, resulting in up to 100 simultaneous client-to-server connections. An operator can then view up to 36 cameras on a single screen. This potential is even more fully realized when used with a super large monitor such as Pelco's 700 series of DLP monitors. The KBD300A will also come in handy here, giving an operator fingertip control for selecting cameras and camera view sizes.
Direct Connection to ATM/POS Devices
When connected to an ATM/POS device, this DVR will record electronic transactions such as credit card swipes along with video. This is an extremely important feature for banks, retail stores, ATM kiosks, casinos and numerous other applications requiring the ability to search for text as well as video. It can also be used to trigger recording at the same instant as the occurrence of an out of ordinary cash register activity such as a void or missed scan. This will eliminate employee sweet-hearting and other such actions, assuring that cash register receipts and register contents add up at the end of the day.
Hidden Camera Function
Any camera or group of cameras can be selected to record in the background without actually appearing on the monitor. This prevents a potential perpetrator from figuring out camera locations by studying cameras and their orientation on the multi-image monitor.
Full Duplex Operation
Thanks to its built-in multiplexer, video from all 16 cameras can be viewed, recorded and played back by both local and remote users simultaneously with no degradation in image quality or performance.
Built-In CD Burner
A built-in CD burner is one of the most important things to have in a DVR. It provides an easy method for transferring short term event footage to an optical disc for archiving purposes or for quick viewing on a PC.
SVGA Output
An SVGA (15-pin VGA) output allows video to be displayed in super high resolution on a computer screen or projected on a wall using an SVGA video projector.
Adjustable Frame Rates and Resolution
Each video input can be individually adjusted for frame rates and resolution. This allows a user for example to set a camera that is being recorded, at its highest resolution while using a lower frame rate for cameras in display mode or vice versa, depending on an application.
Motion Detection
A motion detection function, fully configurable for area and sensitivity, can be assigned to each camera input. Motion detection not only alerts an operator to suspicious activities, but when used to trigger recording, makes it a lot easier to locate event footage.
Alarm I/O Ports
A number of external sensors can be attached to trigger alarms or to activate devices following an alarm occurrence.
Rack Mount Ready
The DVR ships with rack ears and will readily install in a standard 19" EIA rack (4 RU high).
Specifications :
The Pelco DX8116-250A is a superior performance DVR, loaded with the functions and features you've come to expect from a high end recorder, especially one with the Pelco name on it. It records at a super high frame rate of 480 IPS across all channels, supports motion detection as well as PTZ control for each camera input plus numerous other features.
It's most important characteristic however is its upgrade capability. As your business grows so will your security needs. If you find yourself requiring more camera inputs, you can attach the 16-channel expansion box option, giving you a total of 32 video inputs.
If you suspect that you will be soon running out of storage space, you can acquire an external HDD unit, available with storage capacity up to 3 terabytes.
Step Up Features From DX8000 Series DVRs
16-Channel Audio Recording
This DVR comes installed with the DX8000-AUD PCI expansion card, allowing audio from all camera inputs to be recorded along with their video. The ability to hear as well as see provides an operator with a full sense of an occurrence, greatly enhancing security performance. It is also a particularly useful feature for retail stores, factories and similar applications requiring 2-way verbal communication.
Easily Upgradeable
Upgrade options are available to expand camera inputs and storage capacity. The Pelco DX8100-EXP 16-channel external expansion box adds 16 more camera inputs for a total of 32 channels. This box also provides one additional video output. The optional DX9200HDDI external HDD unit further increases storage capacity by up to 3 terabytes. This HDD unit can also be used in a RAID configuration to provide fail-safe redundant operation.
Backwards Compatible with DVR8000 Units
While offered as an upgrade unit, the DX8100 is fully compatible with DX8000 DVRs. Any type of external controller or software developed for the DX8000 can also be used with this DVR. The DVR8100 can also be used in a mixed environment with DX8000 units without causing any incompatibility issues.
Shared Features
Super Fast Recording Speeds
Video is recorded at speeds up to 480 IPS across all 16 channels, and at a resolution of up to 704 x 480. Faster recording speeds eliminate jerky video movements, resulting in properly defined images as well as less eye fatigue for an operator who is viewing for long hours.
Support for Third Party Domes Via Optional Keyboard
PTZ dome cameras from different manufacturers can be controlled alongside Pelco coaxitron domes using the optional KBD300A joystick controller. This allows facilities containing older PTZ domes from different manufacturers to upgrade their DVR to this feature-rich model without having to replace their existing cameras.
Ability to Daisy Chain 5 DVRs
Five DX8100 DVRs can be connected together in a server-to-server configuration, resulting in up to 100 simultaneous client-to-server connections. An operator can then view up to 36 cameras on a single screen. This potential is even more fully realized when used with a super large monitor such as Pelco's 700 series of DLP monitors. The KBD300A will also come in handy here, giving an operator fingertip control for selecting cameras and camera view sizes.
Direct Connection to ATM/POS Devices
When connected to an ATM/POS device, this DVR will record electronic transactions such as credit card swipes along with video. This is an extremely important feature for banks, retail stores, ATM kiosks, casinos and numerous other applications requiring the ability to search for text as well as video. It can also be used to trigger recording at the same instant as the occurrence of an out of ordinary cash register activity such as a void or missed scan. This will eliminate employee sweet-hearting and other such actions, assuring that cash register receipts and register contents add up at the end of the day.
Hidden Camera Function
Any camera or group of cameras can be selected to record in the background without actually appearing on the monitor. This prevents a potential perpetrator from figuring out camera locations by studying cameras and their orientation on the multi-image monitor.
Full Duplex Operation
Thanks to its built-in multiplexer, video from all 16 cameras can be viewed, recorded and played back by both local and remote users simultaneously with no degradation in image quality or performance.
Built-In CD Burner
A built-in CD burner is one of the most important things to have in a DVR. It provides an easy method for transferring short term event footage to an optical disc for archiving purposes or for quick viewing on a PC.
SVGA Output
An SVGA (15-pin VGA) output allows video to be displayed in super high resolution on a computer screen or projected on a wall using an SVGA video projector.
Adjustable Frame Rates and Resolution
Each video input can be individually adjusted for frame rates and resolution. This allows a user for example to set a camera that is being recorded, at its highest resolution while using a lower frame rate for cameras in display mode or vice versa, depending on an application.
Motion Detection
A motion detection function, fully configurable for area and sensitivity, can be assigned to each camera input. Motion detection not only alerts an operator to suspicious activities, but when used to trigger recording, makes it a lot easier to locate event footage.
Alarm I/O Ports
A number of external sensors can be attached to trigger alarms or to activate devices following an alarm occurrence.
Rack Mount Ready
The DVR ships with rack ears and will readily install in a standard 19" EIA rack (4 RU high).
Specifications :
| System | |
|---|---|
| Signal System | NTSC/PAL (user selectable) |
| Multiplexing | Full duplex |
| Compression | Pelco proprietary |
| Channels | 16 |
| Storage |
250GB Storage drive Built-in CD burner |
| Recording Resolution |
320 x 240 (352 x 288 PAL) 640 x 240 (704 x 288 PAL) 640 x 480 (704 x 576 PAL) 352 x 240 (352 x 288 PAL) 704 x 240 (704 x 288 PAL) 704 x 480 (704 x 576 PAL) |
| Recording Rate | 480 IPS |
| Switching Method | Manual or sequential |
| Display Modes | Full or multi image (up to 16 on one screen), 6x digital zoom |
| Recording Modes | Continuous, Motion Detection, Alarm, ATM/POS, and Scheduled Recording Simultaneously |
| Video Inputs | BNC x16 |
| Video Outputs |
Loop-Through: BNC x16 BNC x1 VGA x1 (15-pin) |
| Audio Inputs | RCA x16 |
| Audio Outputs | Mini mono x1 (3.5mm) |
| PTZ Control | Via RS-422/RS-485 or Coaxitron |
| Motion Detection | Yes |
| USB Port | USB x6 (2 front, 4 rear)) |
| SCSI Port | No |
| Control Ports |
RS-422/RS-485 (for PTZ) PS/2 (for mouse and keyboard) DB9 x1 (COM 1) |
| Alarm I/O | 16 Alarm inputs, 16 alarm outputs |
| Network | |
|---|---|
| Network Interface | RJ-45 (10/100/1000 Megabits) |
| Network Protocol Support | LAN, WAN, or Internet-based TCP/IP |
| Simultaneous Client Access | Up to 100 |
| Minimum System Requirements |
(for remote client access) Windows 2000 SP4, XP Pro Pentium 4, 2.8GHz 256MB Memory AGP or PCI-e Graphics card with 64MB memory, 1280 x 1024 resolution and DirectX 8.1 support (for mobile PDA client) Pocket PC with Microsoft PPC 2002 or higher Intel XScale CPU with 400MHz and 64MB of memory |
| General | |
|---|---|
| Power Requirements | 100-240 VAC |
| Power Consumption | 350W |
| Operating Temperature | 50 - 95°F (10 - 35°C) |
| Dimensions (WxHxD) | 17 x 7 x 19.9" (43.2 x 17.8 x 55.9cm) |
| Weight | 42.5 lbs (19.3 kg) |
