 Next Platinum HD Cube Network IP Camera 3.2MP - WIFI
More products by
LT Security

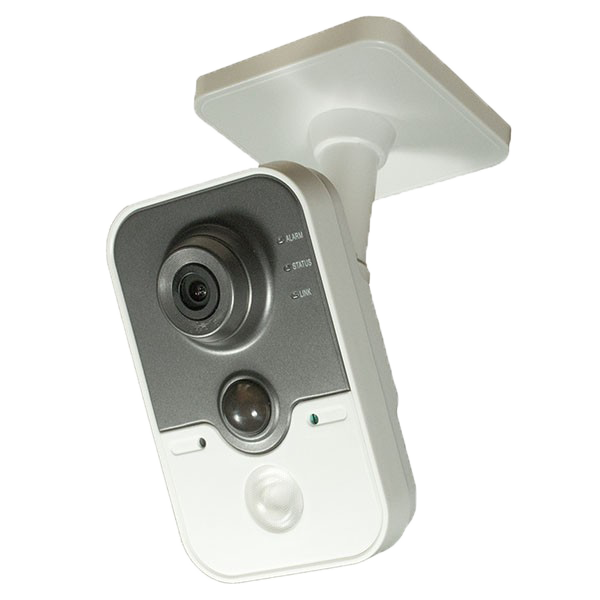

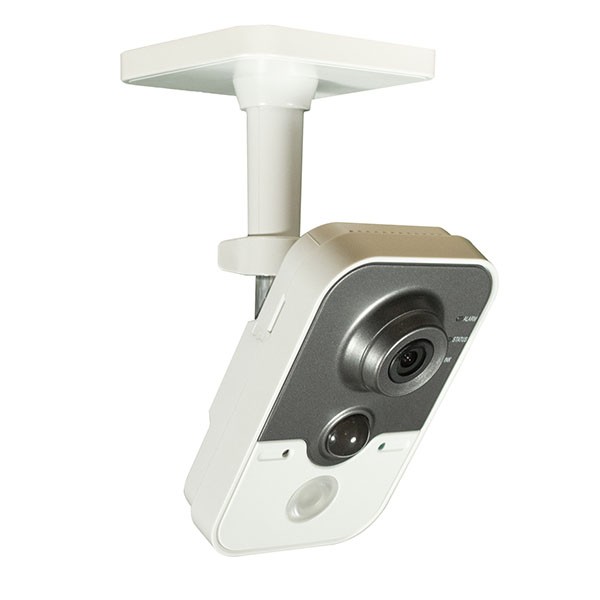

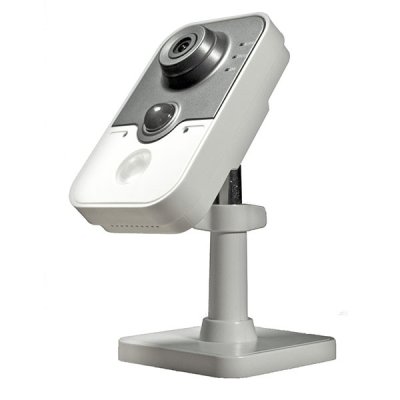

Next Platinum HD Cube Network IP Camera 3.2MP - WIFI


(0 reviews)

$150.00

$185.00

Availability In Stock

SKU CMIP8932-W

Product # 86692

  • 3.2MP High Definition
  • 1/3” CMOS
  • 2048X1536P@20fps
  • 4mm Fixed Lens
  • 1 IR LED up to 33ft
  • Micro SD/SDHC/SDXC Card Slot
  • Built-in Microphone
  • Built-in Speaker
  • WiFi, Alarm In, Out

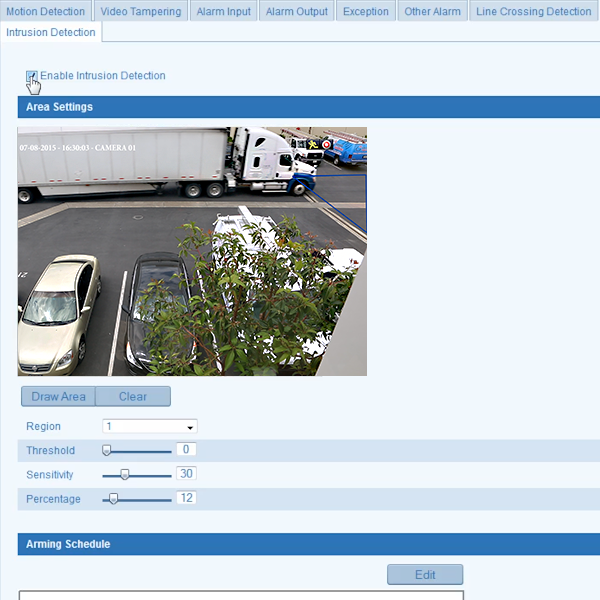

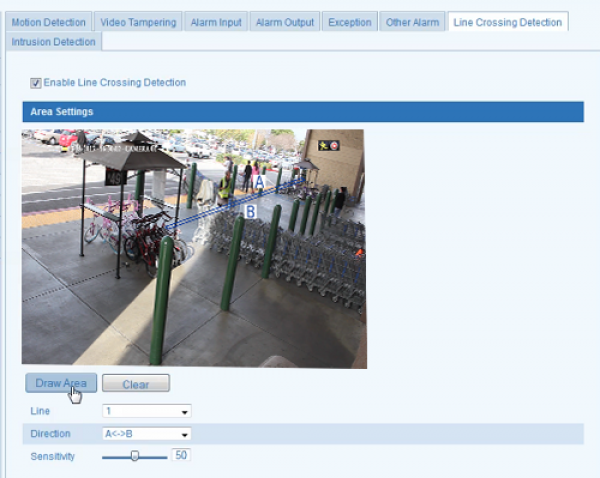

  • 3D DNR, DWDR, BLC, PIR, VCA
  • DC 12V, PoE


Camera



  • Image Sensor 1/3” sensor
  • Min. Illumination0.01 lux @F1.2, AGC on
  • 0 lux with IR
  • Shutter Speed1/25s ~ 1/100,000s
  • Lens4.0 mm @F2.0
  • 2048 × 1536: Angle of view: 70°
  • 1920 × 1080:Angle of view: 79°
  • Lens MountM12
  • Day & NightIR cut filter with auto switch
  • Digital Noise Reduction3D DNR
  • Wide Dynamic RangeDigital WDR
  • Backlight compensationYes,zone configurable


Compression Standard



  • Video CompressionH.264 /  MJPEG
  • H.264 codec profileMain profile
  • Bit Rate32 Kbps ~ 16 Mbps
  • Audio compressionG.711/G.726/MP2L2
  • Audio bit rate64Kbps(G.711) / 16Kbps(G.726) / 32-128Kbps(MP2L2)





  • Max. Resolution2048 × 1536
  • Frame Rate60Hz: 20fps (2048 x 1536),30fps (1920 × 1080),30fps(1280 x 720)
  • 50Hz: 20fps (2048 x 1536),25fps (1920 × 1080),25fps(1280 x 720)
  • Image Settings
  • Rotate mode, Saturation, brightness, contrast, sharpeness adjustable
  • through client software or web browser
  • ROIYes, up to 3 configurable areas


Network



  • Network StorageLocal storage: Built-in Micro SD/SDHC/SDXC card slot, up to 6 4GB. NAS
  • Alarm TriggerMotion detection, Dynamic Analysis, Tampering alarm, Network disconnect,IP address conflict,
  • Storage exception


Protocols



  • TCP/IP,ICMP,HTTP,HTTPS,FTP,DHCP,DNS,DDNS,RTP,RTSP,RTCP,
  • PPPoE,NTP,UPnP,SMTP,SNMP,IGMP,802.1X,QoS,IPv6,Bonjour
  • System compatibilityONVIF, PSIA, CGI, ISAPI
  • General functionalitiesFlickerless, dual stream, heartbeat, mirror, user authentication, video mask, watermark

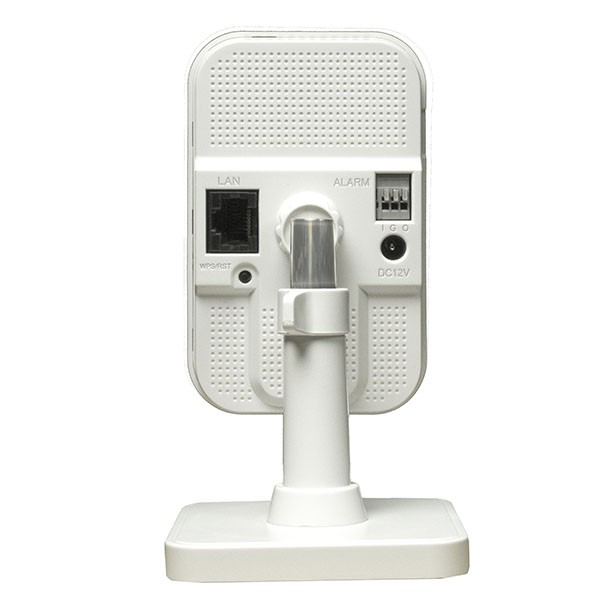

Interface



  • Communication Interface1 RJ45 10 M / 100 M Ethernet interface
  • On-board StorageBuilt-in Micro SD/SDHC/SDXC card slot, up to 64 GB
  • Alarm I/O1/1
  • Wi-Fi parameters
  • Wi-Fi standardIEEE802.11b, 802.11g, 802.11n Draft
  • Frequency range2.4 GHz ~ 2.4835 GHz
  • Communication
  • bandwidthSupport 20/40 MHz
  • Protocols802.11b: CCK, QPSK, BPSK; 802.11g/n: OFDM
  • 802.11g/n: OFDM64/128-bit WEP, WPA/WPA2, WPA-PSK/WPA2-PSK, WPS
  • Transmission rate11b: 11Mbps, 11g: 54Mbps, 11n: 150Mbps
  • Transmission rangeOutdoor: 200m, Indoor: 50m(depend on environment)
  • Wireless StandardsIEEE802.11b, 802.11g, 802.11n Draft


General



  • Working Temperature
  • /Humidity-22 °F ~ 140 °F(-30 °C ~ 60 °C )
  • Humidity 95% or less (non-condensing)
  • Power SupplyDC12V±10% / PoE(802.3af)
  • Power ConsumptionMax. 5W
  • PIRAngle: 80°
  • Range: 33ft(10m)
  • IR Range33ft(10m)
  • Dimension 2.60”×3.60” ×5.17”(66.0×91.5×131.3mm)
  • Weight0.9lbs(400g)
There have been no reviews


Spec Sheet Spec Sheet (1872 KB)
User Manual User Manual (2353 KB)
Quick Start Guide Quick Start Guide (1194 KB)
