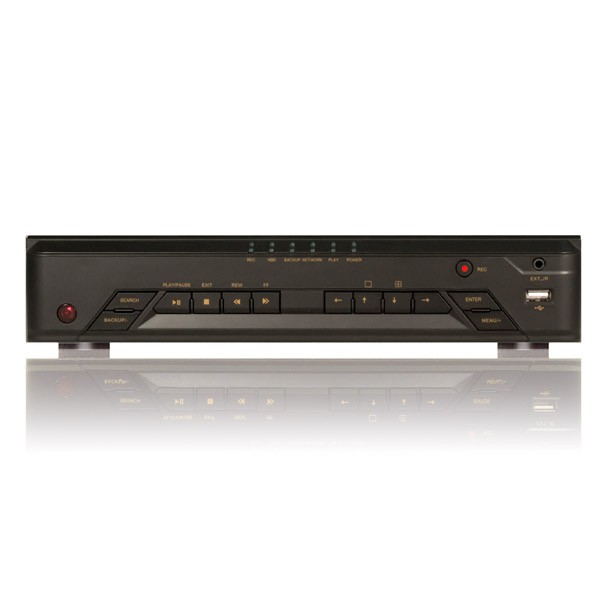

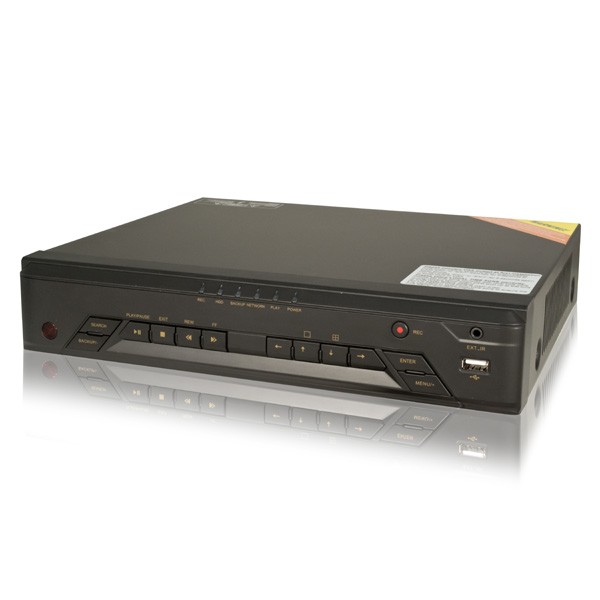

 Next Analog Advanced Level 16 Channel DVR - Compact Case
More products by
LT Security

Next Analog Advanced Level 16 Channel DVR - Compact Case


(0 reviews)

$165.00

$200.00

Availability In Stock

SKU LTD2316SE-C

Product # 86632

Hard Drive #1

  • 16 Channel Digital Video Recorder
  • Video Input: 16CH
  • Video Output: CVBS, SPOT, VGA/HDMI
  • Pentaplex Operation: Record, Playback, Backup, Live & Remote Acess
  • Realtime Record: 16CH D1
  • Recording Rate: 16CH WD1@15fps
  • Playback Channel: 16CH
  • Video Bit Rate: 768 Kbps ~ 2560 Kbps, or user defined (Max. 2560 Kbps)
  • Audio In/Out: 4CH/1CH, RCA
  • Alarm In/Out: 16/1
  • Dual Stream: Support; Master Stream, Sub-Stream: CIF
  • USB: 2 USB 2.0
  • Network: 10/100M
  • Storage: 1 SATA up to 4TB
  • PTZ: 1 RS485
  • Backup: USB, Network

Video / Audio input

  • Video compressionH.264
  • Video input16-ch
  • Video input interfaceBNC (1.0 Vp-p, 75Ω )
  • Audio compressionG.711u
  • Audio input4-ch, RCA(2.0 Vp-p, 1 kΩ)
  • Two-way audio input1-ch, RCA (2.0 Vp-p, 1 kΩ) (using the audio input)


Video / Audio output



  • HDMI output1-ch, resolution: 1080P:1920×1080 /60 Hz
  • VGA output1-ch, resolution: 1280×1024 /60 Hz,1024×768/60HZ,800×600/60HZ
  • CVBS output1-ch, BNC (1.0 Vp-p, 75Ω), resolution: NTSC: 704 × 480,PAL: 704 × 576
  • Video spot out1-ch, BNC (1.0 Vp-p, 75Ω), resolution:NTSC: 704 × 480, PAL: 704 × 576
  • Encoding resolutionWD1:240(NTSC)/192(PAL)fps;D1:480(NTSC)/400(PAL)fps;CIF:480(NTSC)/400(PAL)fps
  • Video bit rate32 Kbps ~ 3072 Kbps, or user defined (max. 3072 Kbps)
  • Audio output1-ch, RCA (linear, 1KΩ)
  • Audio bit rate64 Kbps
  • Dual-streamSupport; Sub-stream: CIF
  • Synchronous playback16-ch


Hard disk



  • SATA1 SATA interfaces
  • CapacityUp to 3TB

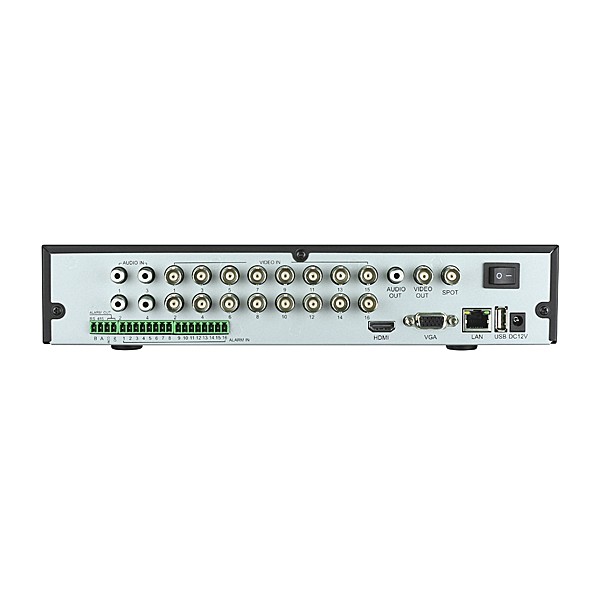

External interface



  • Network interface1, RJ45 10M / 100M / 1000M Ethernet interface
  • PTZ interfaceRS-485(half-duplex)
  • USB interface2, USB2.0
  • Alarm in16
  • Alarm out1


General



  • Power supplyDC 12V 2A
  • Power Consumption≤ 10 W(without hard disk or DVD-R/W)
  • Working temperature-10 °C ~ + 55 °C(14 °F - 122°F)
  • Working humidity10% ~ 90%
  • Dimension 300 × 270× 58mm(11.8"×10.6"×2.3")
  • Weight≤ 2kg(4.4lb) (without hard disk or DVD-R/W)
