MLA-6 Louroe Electronics Microphone Mixer
More products by
Louroe Electronics

MLA-6 Louroe Electronics Microphone Mixer


(0 reviews)

$275.00

Availability In Stock

SKU WECMLA-6

Product # 23956

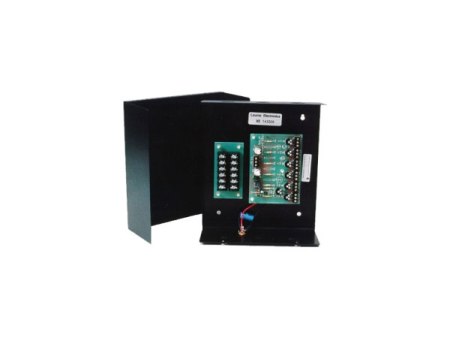

Microphone (or speaker/microphone) mixer for combining up to six microphones (or six speaker/microphones) for zone expansion. It is located between the remote units and the Louroe Base Station. Contains a power amplifier to compensate for amplitude loss, and allows for cable runs up to 5,000' between MLA-6 and base station. MLA-6 is a mixer designed for zone expansion only. It is not a base station. It combines up to six microphones (or six speaker/microphones) to create a larger monitoring zone. If cable run between MLA-6 and Louroe Base Station is under 1,000', MLA-6 is phantom powered from the Louroe Base Station. If cable run is between 1,000' to 5,000', 12 Vdc, 300mA power is required at MLA-6. Request Model AD-1 power supply.

Specifications:

  • Model Number - MLA-6
  • Input Level - +- 3dB or 1Vrms
  • Output Level - +13dB or 0 to 3.4 Vrms adjustable
  • Output Impedance - 600ohm
  • Frequency Response - 100Hz to 10kHz
  • Current Drain - 1.2mA
  • Voltage Supply - 12VDC
  • Dimensions - 8"L x 7"W x 3"H
  • Weight - 3lbs
