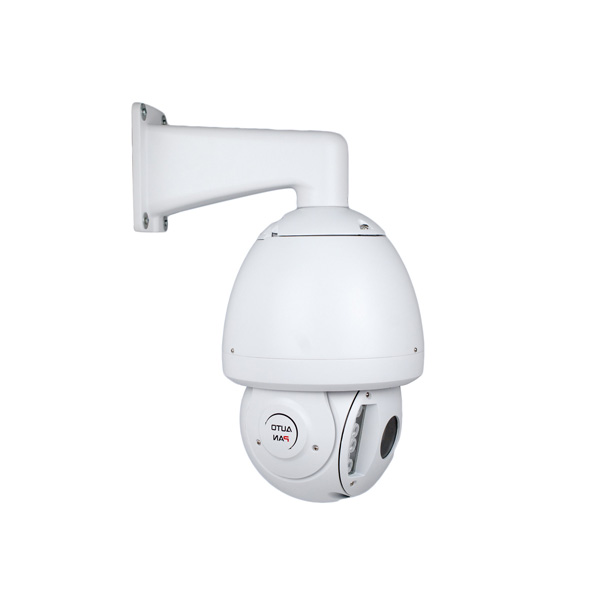

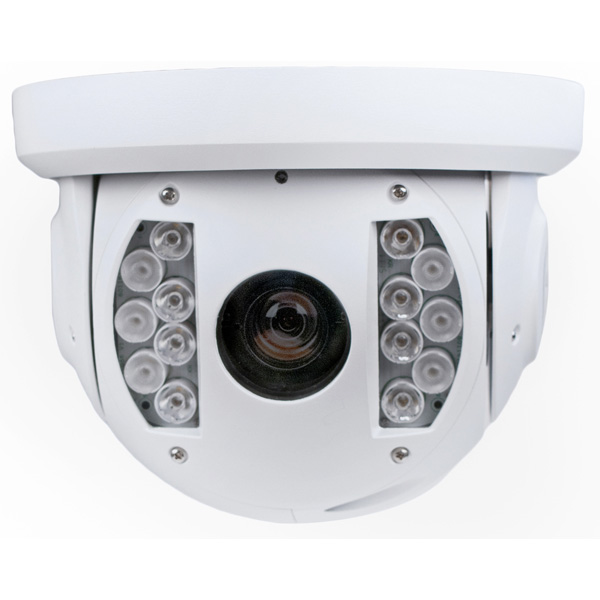

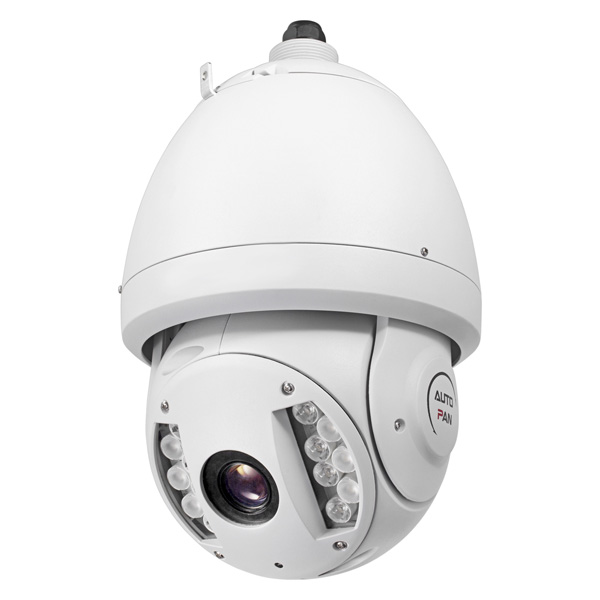

IMAX-PTZ-36X-IR 600TVL 36x Zoom Module High-Speed Day/Night PTZ With Intelligent Smart Zoom
More products by

IMAX-PTZ-36X-IR 600TVL 36x Zoom Module High-Speed Day/Night PTZ With Intelligent Smart Zoom

(1 reviews)



Availability In Stock
Ships Same Day


Product # 56456

Camera Resolution 600-650 TV Lines

UPC 881314694426

This surveillance camera records high resolution 600TVL footage. It has 36x optical zoom and 255 presets for pan/tilt functions. The security camera also comes equipped with infrared for filming at night and Wide Dynamic Range for recording the clearest images possible. It can be used indoor or outdoor.


Product Features

  • Powerful 36x optical zoom
  • High resolution @ 600TVL/650TVL
  • DWDR, Day/Night (ICR), DNR (2D & 3D), Auto iris, Auto focus, AWB, AGC, BLC
  • Max 240°/s pan speed, 360° continuous pan rotation
  • Up to 255 presets, 5 auto scan, 8 tour, 5 pattern
  • Built-in 7/2 alarm in/out
  • Support intelligent 3D positioning with DH-SD protocol
  • IP66, IR LEDs up to 330 ft.



Image Sensor 1/4" EXviewHAD CCD II
Effective Pixels 752(H) × 582(V) / 768 (H) × 494(V)
Horizontal Resolution Color: 650TVL; B/W: 700TVL
Scanning System Interlaced
Electronic Shutter Speed 1/1~1/100,000s
Min. Illumination Color: 0.01Lux/F1.6, B/W: 0.001Lux/F1.6
S/N Ratio More than 50dB
Video Output BNC(1.0Vp-p,75Ω), PAL/NTSC
Camera Features
Max IR LEDs Length 100m
Day/Night Auto(ICR) / Color / B/W
Backlight Compensation BLC / HLC / DWDR
White Balance Auto, ATW, Indoor, Outdoor, Manual
Gain Control Auto/Manual
Noise Reduction 2D/3D
Privacy Masking Up to 24 areas
Digital Zoom 16x
Focal Length 3.4mm~122.4mm(36x Optical zoom)
Max. Apeture F1.6 ~ F4.5
Focus Control Auto/Manual
Angle of View Horizontal: 57.8° ~ 1.70°
Close Focus Distance 10mm ~ 1000mm
Pan/Tilt Range Pan: 0° ~ 360° endless; Tilt: -2° ~ 90°, auto flip 180°
Manual Control Speed Pan: 0.1° ~160°/s; Tilt: 0.1° ~120°/s
Preset Speed Pan: 240°/s; Tilt: 200°/s
Preset 80(DH-SD), 255(Pelco-P/D)
PTZ Mode 5 Pattern, 8 Tour, Auto Pan, Auto Scan
Speed Setup Human-oriented focal length/ speed adaptation
Power Up Action Auto restore to previous PTZ and lens status after power failure
Idle Motion Activate Preset/ Pan/ Scan/ Tour/ Pattern if there is no command in the specified period
Time Task Auto activation of Preset/ Pan/ Scan/ Tour/ Pattern by preset-time
Protocol DH-SD, Pelco-P/D (Auto recognition)
Auxiliary Interface
RS485 1 port
Alarm 7/2 channel In/Out
Power Supply AC 24V/3.0A (±10%), DC12V Optional
Power Consumption 17W, 35W (IR on)
Working Environment -40°F ~ +140°F (-40°C ~ +60°C), Less than 90%RH
Protection Level IP66
Dimensions Φ9.04" (229.6mm) x 15.02" (381.5mm)
Weight 15.43 lbs

Average customer rating:
(1 reviews)

1 Most useful customer reviews (see all reviews):
Apr 18, 2014
This customer purchased the item at our site.
The image is much better than the 640 cameras I have on my system. The comments are correct that IE has better images due to the decoding
