How To Setup Network On Mini DVR


Problem: Setup network on mini-DVR

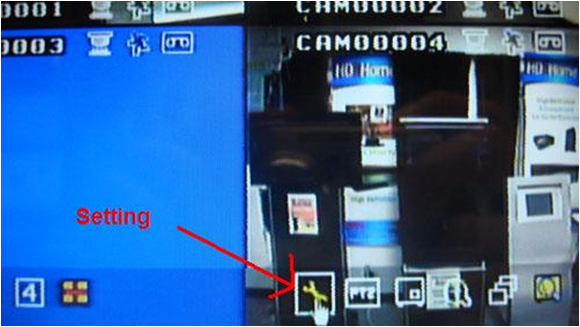

1) Move mouse cursor and click the setting button.
2) There is no password for the default login. Then Enter to login.

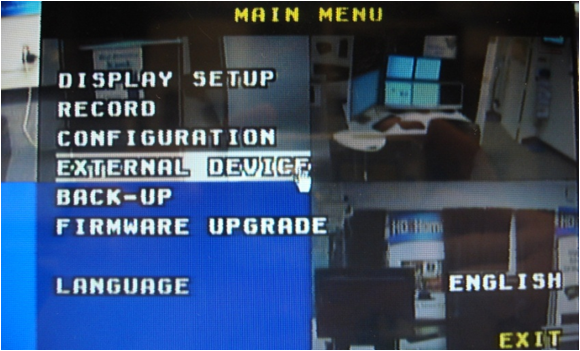

3) Click External Device.

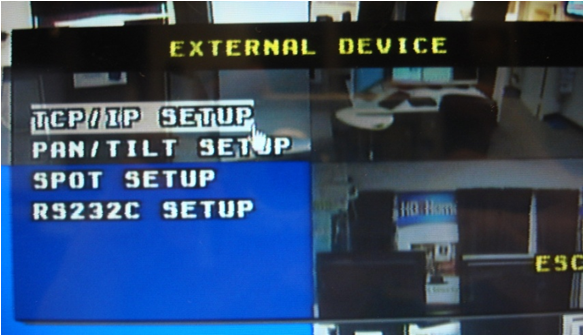

4) Click TCP/IP Setup.

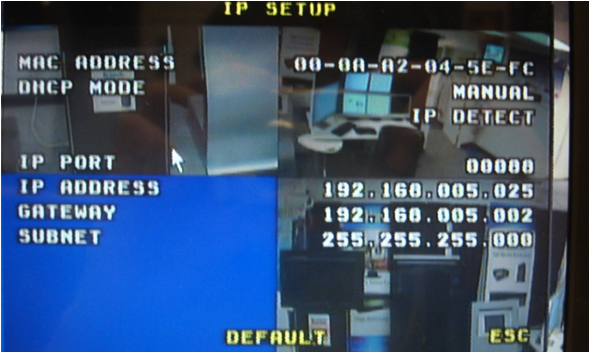

5) Click IP Setup.
6) Type in port number, IP address for this DVR, router gateway address, network subnet. After inputting all the information, click ESC to go back.

(Note: Copy down the MAC Address and IP Port for future use)
7) Go to http://www.j2kip.com to register your IP address
8) Fill the information and click confirm.
9) Login here
10) Click on "DVR Add"
11) Fill up your DVR's information.

(Note: Fill the MAC Address and IP Port with the one we copied down before, check step 6 for detail)

IP Address is your WAN IP address.

Then, click Confirm.
