GV-Video Wall Complete Security Camera Wall System
More products by
Geovision

GV-Video Wall Complete Security Camera Wall System


(0 reviews)

Availability In Stock
Ships within 1 to 12 Hours

SKU GV-Video Wall

Product # 82258

The Company offers a complete line of Safety and Security, CCTV, access products. The Model is GV-Video Wall Complete Security Camera Wall System.  With GV-Control Center, you can remotely configure and manage up to 200 Video Walls, each with a different layout. A video wall is an establishment of multiple monitors on a server, which is a PC installed with multiple graphic cards. Depending on the incoming IP sources, you can display actual-size images on the Video Wall. The product is featured by on each Video Wall, you can. display up to 288 IP channels. Display actual size IP images. Freely adjust the size and position of each channel, whether it be within or across monitors. Display up to 16 zoomed channels with Zoom Window. Display up to 16 Scan Window, each is capable of displaying up to 32 channels in turn, at customizable time interval. Display up to 16 web pages with Web Window. Play back up to 16 videos with Media Window. Play back up to 16 videos with Remote View Log Window. Display up to 288 channels of customized view region of remote monitors. Display live views enabled from Remote E-Map. Must be a reseller of this product as the company is a leading global provider of power and transmission technologies for professional security system applications.

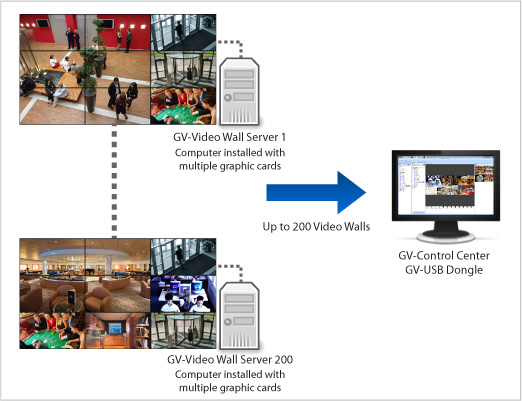

With GV-Control Center, you can remotely configure and manage up to 200 Video Walls, each with a different layout. A video wall is an establishment of multiple monitors on a server, which is a PC installed with multiple graphic cards. Depending on the incoming IP sources, you can display actual-size images on the Video Wall.

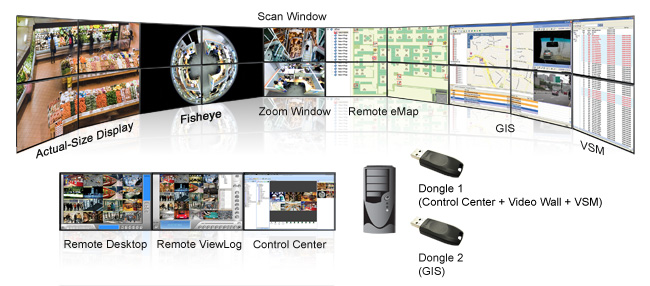

On each Video Wall, you can:

  • display up to 288 IP channels
  • display actual size IP images
  • freely adjust the size and position of each channel, whether it be within or across monitors
  • display up to 16 zoomed channels with Zoom Window
  • display up to 16 Scan Window, each is capable of displaying up to 32 channels in turn, at customizable time interval
  • display up to 16 web pages with Web Window
  • play back up to 16 videos with Media Window
  • play back up to 16 videos with Remote ViewLog Window
  • display up to 288 channels of customized view region of remote monitors
  • display live views enabled from Remote E-Map





Minimum System Requirements
Standard Requirements
OS 32-bit Windows 7 / 8 / Server 2008
64-bit Windows 7 / 8 / Server 2008 R2 / Server 2012
CPU Core 2 Duo E6400, 2.13 GHz
Memory 2 x 2 GB
Hard Disk 1 GB
Graphic Card AGP or PCI-Express, 1024 x 768, 32-bit color
DirectX 9.0c
LAN Card Gigabit Ethernet x 1
Hardware Internal or External GV-USB Dongle with Video Wall function inserted to GV-Control Center
Note: If you are using more than two graphic cards on a server, make sure they are of the same brand, model and driver version to ensure maximum efficiency.


Advanced Requirements
OS 64-bit Windows 7 / 8 / Server 2008 R2 / Server 2012
CPU Core i7 2600K, 3.4 GHz
Memory 3 x 2 GB
Hard Disk 1 GB
Graphic Card AGP or PCI-Express, 1024 x 768, 32-bit color
DirectX 9.0c
LAN Card Gigabit Ethernet x 2
Hardware Internal or External GV-USB Dongle with Video Wall function inserted to GV-Control Center
Note: If you are using more than two graphic cards on a server, make sure they are of the same brand, model and driver version to ensure maximum efficiency.

Software License
Free License N/A
Maximum License 200 Video Wall servers (Each server can display up to 288 channels)
Increment for Each License 1 Video Wall server
Optional Combinations 1. Control Center + Video Wall (1 to 200 license)
2. Control Center + VSM + Video Wall (1 to 200 license)
Dongle Type Internal or external
Note:
1. Make sure you insert a GV-USB dongle with Video Wall function to Control Center server.
2. It is recommended to use the internal GV-USB Dongle to have the Hardware Watchdog function which restarts the PC when Windows crashes or freezes.

Recommended Requirements
1. To achieve any of the following conditions, make sure you meet the Advanced Version requirements.
Host Type Resolution Video Compression No. of Channels
DVR D1 H264 49 or more
CIF H264 71 or more
IP Camera CIF H264 17 or more
VGA H264 8 or more
1 M H264 3 or more
2 M H264 2 or more
3 M H264 2 or more
4 M H264 2 or more
5 M H264 3 or more
Note: The above data may vary in different scenes (different data bitrates).

2. If the videos are recorded in MJPEG under LAN, double Gigabit Ethernet is highly recommended.

Supported DVR Version
The Control Center is compatible with GV-System / GV-NVR V8.5 or later.
